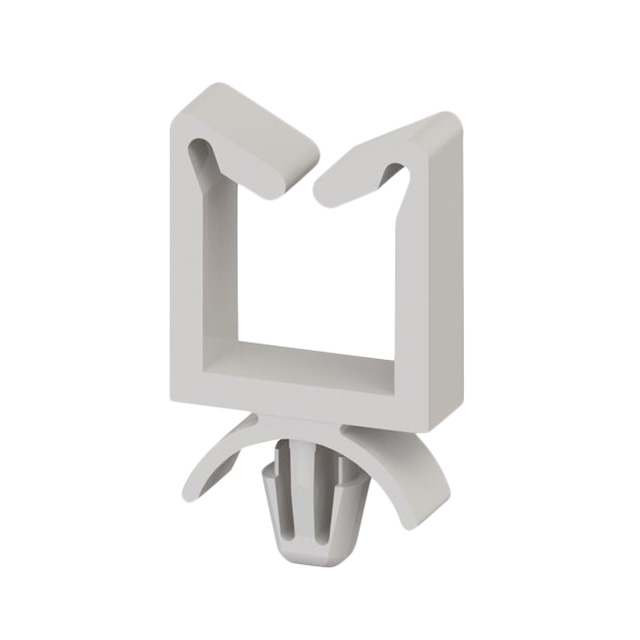

WS-A Series

Catalog

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.4 MM, 5.6 MM

Part	Panel Thickness	Panel Thickness	Height [z]	Height [z]	Opening Size [x]	Opening Size [y]	Opening Size [y]	Opening Size [x]	Length [x]	Length [x]	Color	Type	Width	Width	Material	Material Flammability Rating	Features	Mounting Type	Panel Hole Size	Panel Hole Size	Opening Size [z]	Opening Size [z]
Essentra Components WS-A-3-19	1.6 mm	0.063 in	27.18 mm	1.07 in	11.13 mm	18.8 mm	0.74 in	0.438 in	15.5 mm	0.61 "	Natural	Clip Wire Saddle	0.219 "	5.56 mm	Polyamide (PA66) Nylon 6/6	UL94 V-0	Flame Retardant	Arrowhead Winged	4.75 mm	0.187 in
Essentra Components WS-A-2-19	1.6 mm	0.063 in	18.03 mm	0.71 in	11.13 mm			0.438 in	15.5 mm	0.61 "	Natural	Clip Wire Saddle	0.219 "	5.56 mm	Polyamide (PA66) Nylon 6/6	UL94 V-0	Flame Retardant	Arrowhead Winged	4.75 mm	0.187 in	0.38 "	9.65 mm

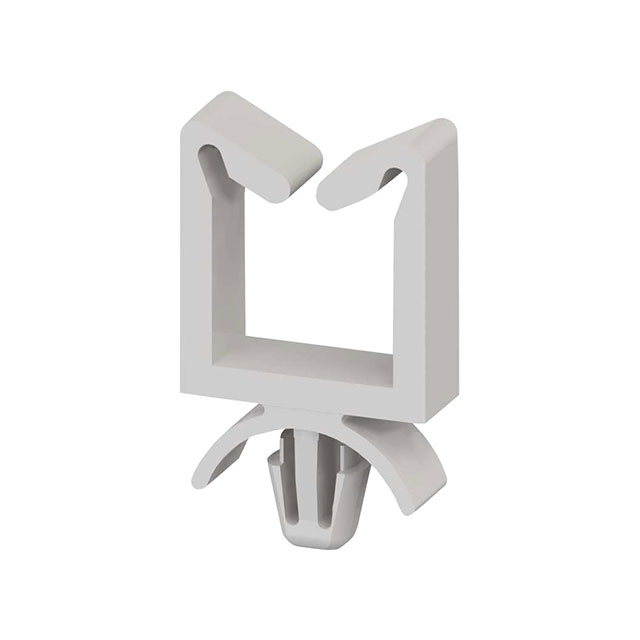

Essentra Components WS-A-2-1-01	3.18 mm	0.125 in	13.21 mm	0.52 in	11.13 mm			0.438 in	15.5 mm	0.61 "	Natural	Clip Wire Saddle	0.219 "	5.56 mm	Polyamide (PA66) Nylon 6/6	UL94 V-2		Arrowhead Winged	4.75 mm	0.187 in	0.19 in	4.83 mm

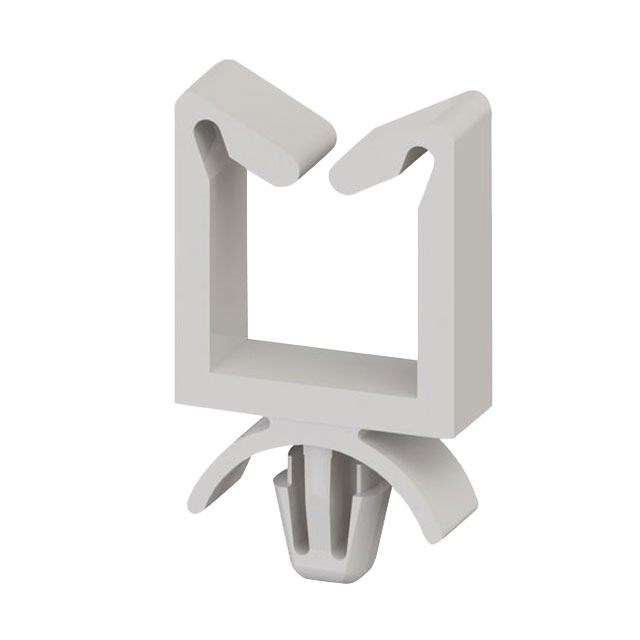

Essentra Components WS-A-2-1-19	3.18 mm	0.125 in	13.21 mm	0.52 in	11.13 mm			0.438 in	15.5 mm	0.61 "	Natural	Clip Wire Saddle	0.219 "	5.56 mm	Polyamide (PA66) Nylon 6/6	UL94 V-0	Flame Retardant	Arrowhead Winged	4.75 mm	0.187 in	0.19 in	4.83 mm
