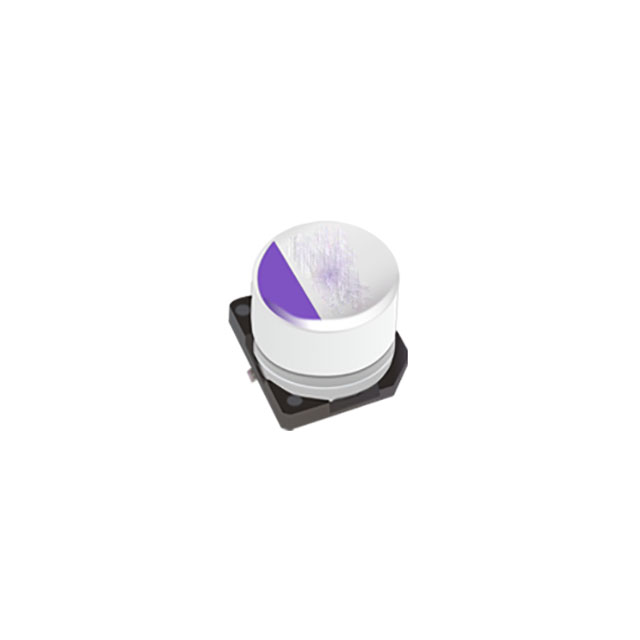

16SVT Series

Catalog

CAP ALUMINUM POLYMER 100UF 16VDC 20%( 6.3 X 6.4MM) SMD 0.024 OHM 0.78A 2000H 125°C T/R

Part	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	ESR (Equivalent Series Resistance)	Applications	Mounting Type	Voltage - Rated	Type	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Ripple Current @ High Frequency	Capacitance	Lifetime @ Temp.	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]
Panasonic Electronic Components 16SVT100M	0.26 in	6.6 mm	6.6 mm	0.26 in	24 mOhms	General Purpose	Surface Mount	16 V	Polymer	124.5 mA	-55 C	125 °C	20 %	2.49 A	100 µF	2000 Hrs	Radial Can - SMD	6.5 mm	0.256 in	0.248 "	6.3 mm
Panasonic Electronic Components 16SVT1000M	0.406 in	10.3 mm	10.3 mm	0.406 "	12 mOhms	General Purpose	Surface Mount	16 V	Polymer	270 mA	-55 C	125 °C	20 %	5.4 A	1000 µF	2000 Hrs	Radial Can - SMD		12.7 mm	0.394 in	10 mm	0.5 in
