83703 Series
Manufacturer: Belden Inc.
Beta
⌘K

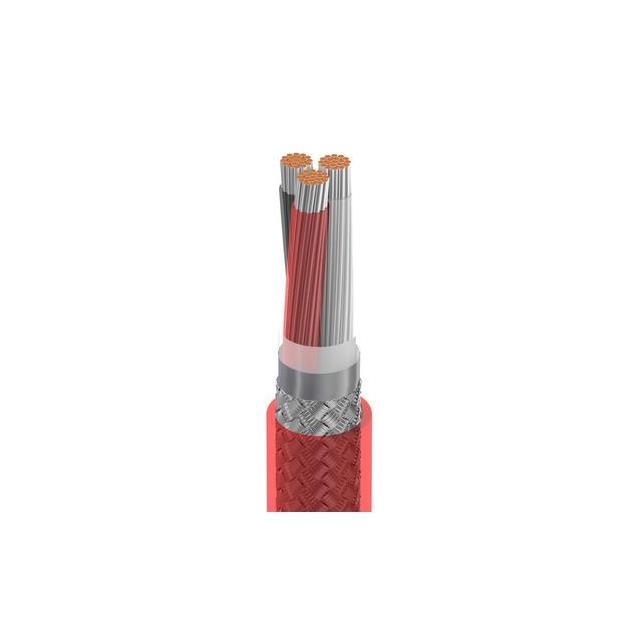

CABLE 3COND 16AWG RED SHLD
| Part | Shield Material | Shield Coverage | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Shield Type | Cable Type | Jacket (Insulation) Material | Jacket Color | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Conductor Insulation | Voltage | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Copper Tinned | 19 | 29 | UL Style CMP | 0.206 in | 5.23 mm | 3 | Braid Foil | Multi-Conductor | Fluorinated Ethylene-Propylene (FEP) Plenum | Red | 16 AWG | 0.014 in | 0.356 mm | Audio Control Instrumentation | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | 152.4 m | 500 ft | -70 °C | 200 °C |
