316-030 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows	Termination	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Number of Rows [custom]	Number of Positions/Bay/Row	Gender	Features	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Pitch	Pitch	Color	Contact Finish	Contact Material	Card Type	Flange Feature [diameter]	Flange Feature [diameter]

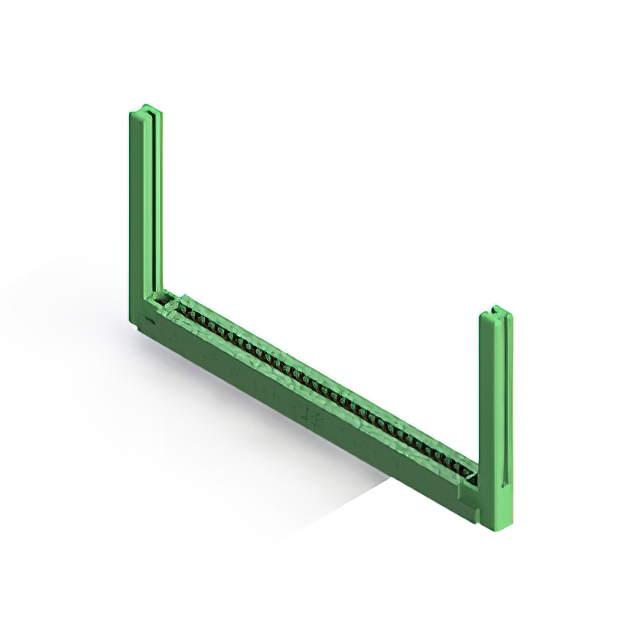

EDAC Inc. 316-030-520-168	Polyester Thermoplastic	1	Solder	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	60	2	30	Female	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	Green	Gold	Copper Alloy	Non Specified - Dual Edge
EDAC Inc. 316-030-521-158	Polyester Thermoplastic	1	Solder	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	60	2	30	Female	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	Green	Gold	Copper Alloy	Non Specified - Dual Edge
EDAC Inc. 316-030-500-103	Polyester Thermoplastic	1	Solder Eyelet(s)	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	60	2	30	Female		Floating Bobbin Flush Mount	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	Green	Gold	Copper Alloy	Non Specified - Dual Edge	0.116 "	2.95 mm

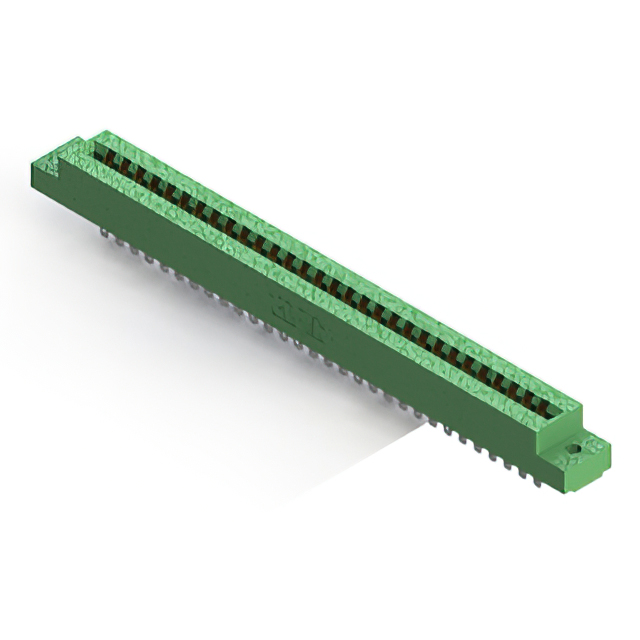

EDAC Inc. 316-030-500-102	Polyester Thermoplastic	1	Solder Eyelet(s)	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	60	2	30	Female		Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	Green	Gold	Copper Alloy	Non Specified - Dual Edge	0.128 "	3.25 mm

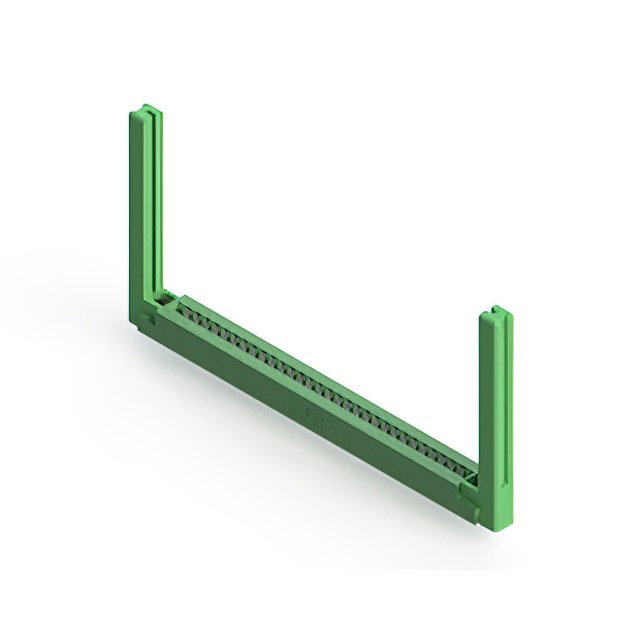

EDAC Inc. 316-030-421-158	Polyester Thermoplastic	1	Solder	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	60	2	30	Female	Card Guides	4-40 Flush Mount Threaded Insert Top Opening			Dual	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	Green	Tin	Copper Alloy	Non Specified - Dual Edge

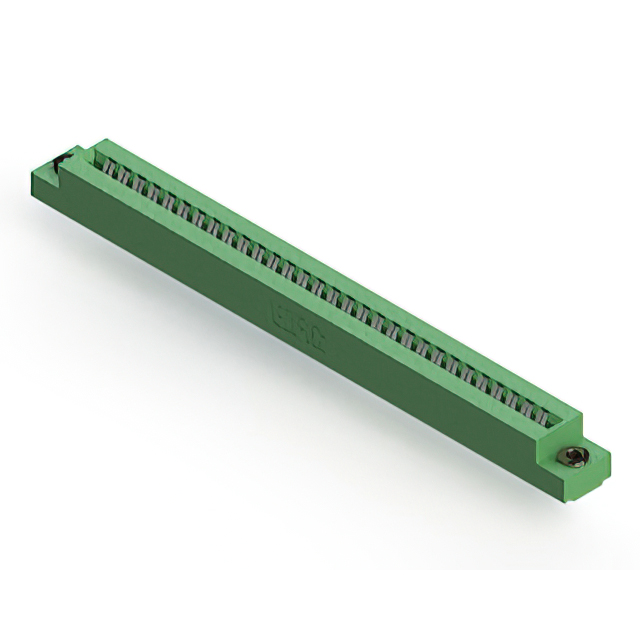

EDAC Inc. 316-030-421-103	Polyester Thermoplastic	1	Solder	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	60	2	30	Female		Floating Bobbin Flush Mount			Dual	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	Green	Tin	Copper Alloy	Non Specified - Dual Edge	0.116 "	2.95 mm
EDAC Inc. 316-030-520-104	Polyester Thermoplastic	1	Solder	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	60	2	30	Female		Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	Green	Gold	Copper Alloy	Non Specified - Dual Edge	0.156 "	3.96 mm

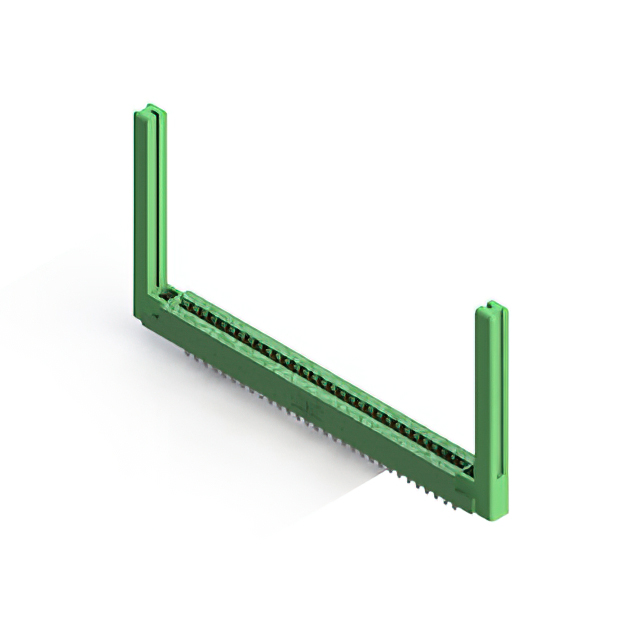

EDAC Inc. 316-030-500-158	Polyester Thermoplastic	1	Solder Eyelet(s)	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	60	2	30	Female	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	Green	Gold	Copper Alloy	Non Specified - Dual Edge

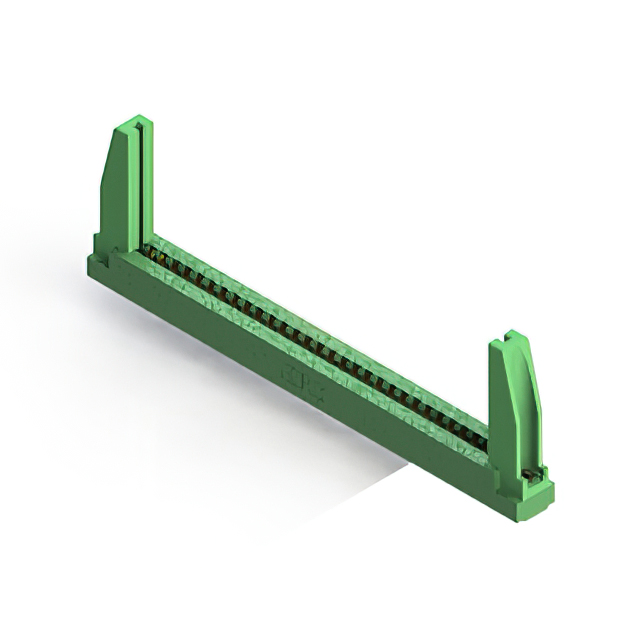

EDAC Inc. 316-030-520-178	Polyester Thermoplastic	1	Solder	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	60	2	30	Female	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	Green	Gold	Copper Alloy	Non Specified - Dual Edge

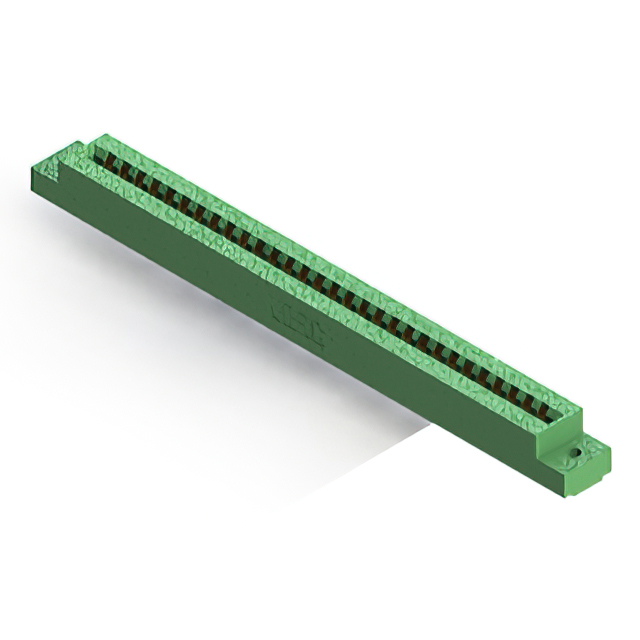

EDAC Inc. 316-030-520-102	Polyester Thermoplastic	1	Solder	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	60	2	30	Female		Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	Green	Gold	Copper Alloy	Non Specified - Dual Edge	0.128 "	3.25 mm
