AAC06 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

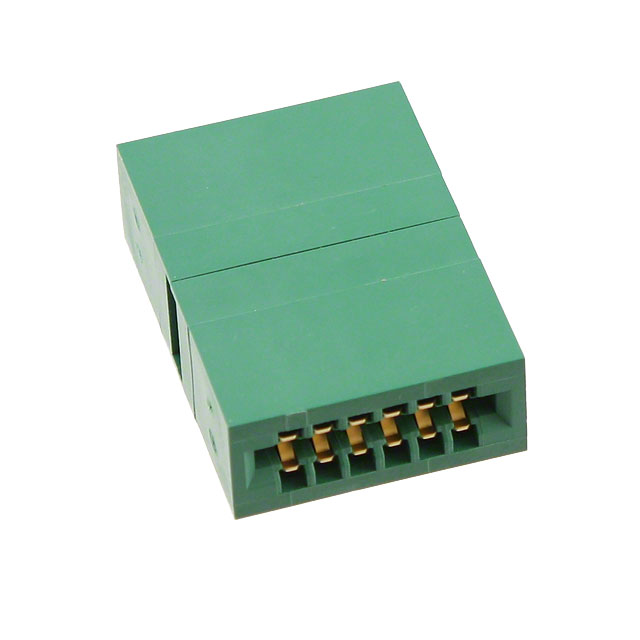

CONN EDGE ADAPT CARD-CARD 12POS
| Part | Current Rating (Per Contact) | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Card Thickness | Card Thickness | Number of Positions | Mounting Type | Contact Material | Adapter Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 3 A | 150 °C | -65 ░C | Gold | 1.57 mm | 0.062 in | 12 | Free Hanging (In-Line) | Beryllium Copper | Card Slot to Card Slot | 30 Áin | 0.76 Ám | |||
 Sullins Connector Solutions | 3 A | 150 °C | -65 ░C | Gold | 1.57 mm | 0.062 in | 12 | Panel Mount | Beryllium Copper | Card Slot to Card Slot | 30 Áin | 0.76 Ám | Top Opening Unthreaded | 0.125 " | 3.18 mm |
