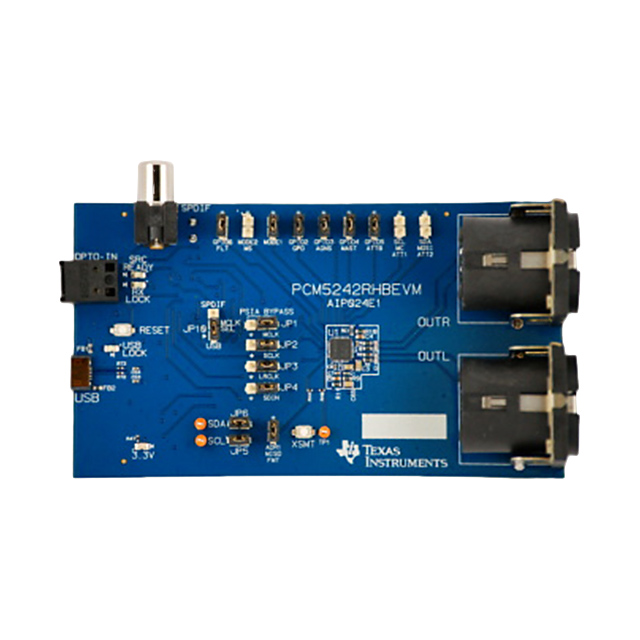

PCM5242 Series
4.2-VRMS DirectPath™, 32-bit, 384-kHz, 114-dB Audio Stereo DAC
Manufacturer: Texas Instruments
Catalog
4.2-VRMS DirectPath™, 32-bit, 384-kHz, 114-dB Audio Stereo DAC
Key Features
• Differential DirectPath™ Ground Biased OutputsMarket-Leading Low Out-of-Band NoiseSelectable Digital-Filter Latency and PerformanceNo DC Blocking Capacitors RequiredIntegrated Negative Charge PumpIntelligent Muting System; Soft Up or Down Ramp andAnalog Mute for 120dB Mute SNRIntegrated High-Performance Audio PLL With BCKReference to Generate SCK InternallyAccepts 16-, 24-, and 32-Bit Audio DataPCM Data Formats: I2S, Left-JustifiedSPI or I2C ControlHardware ConfigurationAutomatic Power-Save Mode When LRCK And BCKAre Deactivated1.8V or 3.3V Failsafe LVCMOS Digital InputsSingle Supply Operation:3.3V Analog, 1.8V or 3.3V DigitalIntegrated Power-On ResetSmall 32-terminal QFN PackageDifferential DirectPath™ Ground Biased OutputsMarket-Leading Low Out-of-Band NoiseSelectable Digital-Filter Latency and PerformanceNo DC Blocking Capacitors RequiredIntegrated Negative Charge PumpIntelligent Muting System; Soft Up or Down Ramp andAnalog Mute for 120dB Mute SNRIntegrated High-Performance Audio PLL With BCKReference to Generate SCK InternallyAccepts 16-, 24-, and 32-Bit Audio DataPCM Data Formats: I2S, Left-JustifiedSPI or I2C ControlHardware ConfigurationAutomatic Power-Save Mode When LRCK And BCKAre Deactivated1.8V or 3.3V Failsafe LVCMOS Digital InputsSingle Supply Operation:3.3V Analog, 1.8V or 3.3V DigitalIntegrated Power-On ResetSmall 32-terminal QFN Package
Description
AI
The PCM5242 is a monolithic CMOS integrated circuit that includes a stereo digital-to-analog converter and additional support circuitry in a small QFN package. The PCM5242 uses the latest generation of TI’s advanced segment-DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.
The PCM5242 integrates a fully programmable miniDSP core, allowing developers to integrate filters, dynamic range controls, custom interpolators and other differentiating features to their products.
The PCM5242 provides 4.2VRMSground-centered differential outputs, allowing designers to eliminate DC blocking capacitors on the output, as well as external muting circuits traditionally associated with single supply line drivers.
The integrated PLL on the device removes the requirement for a system clock (commonly known as master clock), allowing a 3-wire I2S connection and reducing system EMI.
The PCM5242 is a monolithic CMOS integrated circuit that includes a stereo digital-to-analog converter and additional support circuitry in a small QFN package. The PCM5242 uses the latest generation of TI’s advanced segment-DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.
The PCM5242 integrates a fully programmable miniDSP core, allowing developers to integrate filters, dynamic range controls, custom interpolators and other differentiating features to their products.
The PCM5242 provides 4.2VRMSground-centered differential outputs, allowing designers to eliminate DC blocking capacitors on the output, as well as external muting circuits traditionally associated with single supply line drivers.
The integrated PLL on the device removes the requirement for a system clock (commonly known as master clock), allowing a 3-wire I2S connection and reducing system EMI.
