6084C Series

Catalog

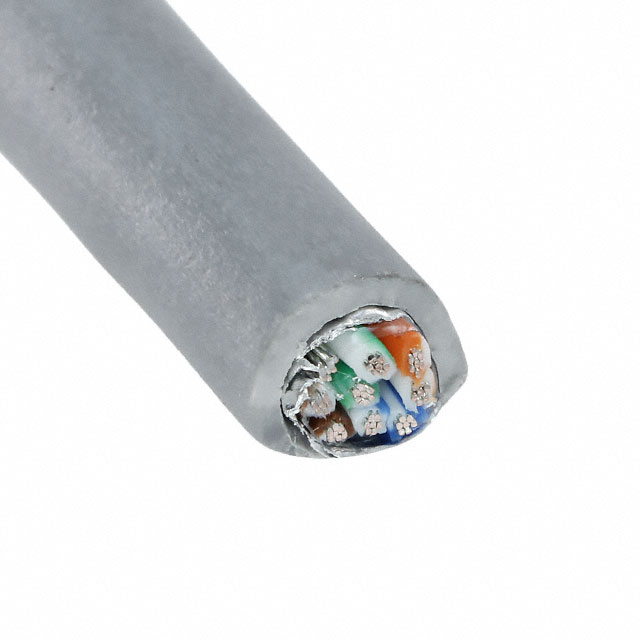

MULTI-PAIR 8CON 24AWG SLATE 100'

Part	Shield Material	Shield Coverage	Ratings	Conductor Insulation	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Features	Length [x]	Length [x]	Number of Conductors	Cable Type	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
ALPHA WIRE 6084C SL005	Aluminum	100 %	UL Style 2919	High Density Polyethylene (HDPE)	Slate	24 AWG	0.254 in	6.45 mm	Copper Tinned	0.035 in	0.889 mm	300 VDC	Drain Wire	100 ft	30.5 m	8	Multi-Pair	Foil	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	7	32 AWG
ALPHA WIRE 6084C SL001	Aluminum	100 %	UL Style 2919	High Density Polyethylene (HDPE)	Slate	24 AWG	0.254 in	6.45 mm	Copper Tinned	0.035 in	0.889 mm	300 VDC	Drain Wire			8	Multi-Pair	Foil	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	7	32 AWG	304.8 m	1000 ft
ALPHA WIRE 6084C SL002	Aluminum	100 %	UL Style 2919	High Density Polyethylene (HDPE)	Slate	24 AWG	0.254 in	6.45 mm	Copper Tinned	0.035 in	0.889 mm	300 VDC	Drain Wire			8	Multi-Pair	Foil	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	7	32 AWG	152.4 m	500 ft
