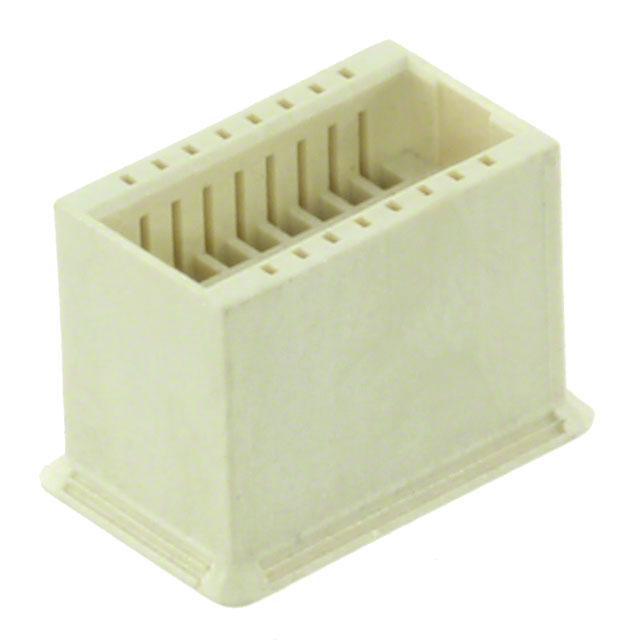

AMPMODU MICRO Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RCPT ASSY,32 POS,VERT,0.8MM MI ROHS COMPLIANT: NO

Part	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Fastening Type	Features	Style	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Type	Voltage Rating	Insulation Height	Insulation Height	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Connector Type	Material Flammability Rating	Termination	Contact Finish - Post	Note	Color	Pitch	Pitch	Row Spacing	Row Spacing	Contact Termination	Number of Positions
TE Connectivity AMP Connectors 1-1375870-4	Phosphor Bronze	Liquid Crystal Polymer (LCP)	5.11 Áin	0.13 Ám	2	0.8 mm	0.031 in	Friction Lock	Solder Retention	Board to Cable/Wire	All	-55 C	85 °C	Gold	Female Blade Socket	30 VAC	0.197 "	5 mm	Natural	0.76 Ám	30 Áin	Surface Mount	Receptacle	UL94 V-0	Solder	Gold

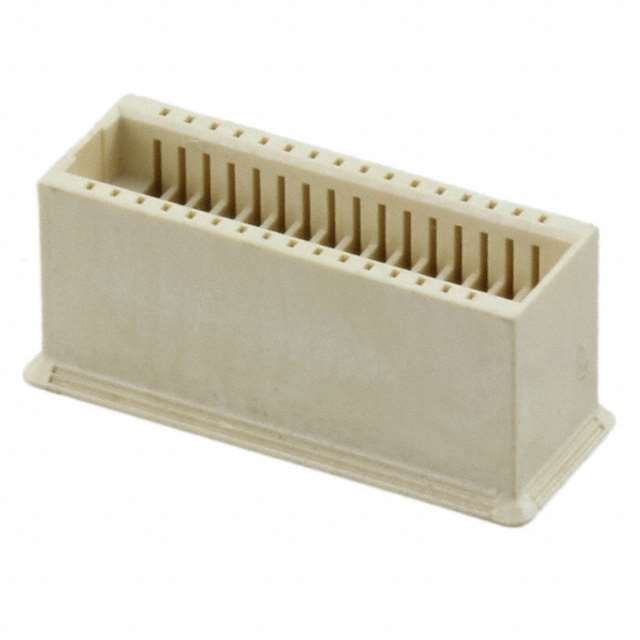

TE Connectivity AMP Connectors 1-1375875-4		Liquid Crystal Polymer (LCP)			2							-55 C	85 °C		Outer Shroud Contact							Free Hanging (In-Line)	Plug				Contacts Not Included	Natural	0.8 mm	0.031 in	3.3 mm	0.13 in	Crimp
TE Connectivity AMP Connectors 5-1375870-4	Phosphor Bronze	Liquid Crystal Polymer (LCP)	5.11 Áin	0.13 Ám	2	0.8 mm	0.031 in	Friction Lock	Solder Retention	Board to Cable/Wire	All	-55 C	85 °C	Gold	Female Blade Socket	30 VAC	0.197 "	5 mm	Natural	0.76 Ám	30 Áin	Surface Mount	Receptacle	UL94 V-0	Solder	Gold								12
TE Connectivity AMP Connectors 1375870-5	Phosphor Bronze	Liquid Crystal Polymer (LCP)	5.11 Áin	0.13 Ám	2	0.8 mm	0.031 in	Friction Lock	Solder Retention	Board to Cable/Wire	All	-55 C	85 °C	Gold	Female Blade Socket	30 VAC	0.197 "	5 mm	Natural	0.76 Ám	30 Áin	Surface Mount	Receptacle	UL94 V-0	Solder	Gold								14
TE Connectivity AMP Connectors 5-1375870-1	Phosphor Bronze	Liquid Crystal Polymer (LCP)	5.11 Áin	0.13 Ám	2	0.8 mm	0.031 in	Friction Lock	Solder Retention	Board to Cable/Wire	All	-55 C	85 °C	Gold	Female Blade Socket	30 VAC	0.197 "	5 mm	Natural	0.76 Ám	30 Áin	Surface Mount	Receptacle	UL94 V-0	Solder	Gold								6
TE Connectivity AMP Connectors 6-1375870-4					2	0.8 mm	0.031 in	Friction Lock	Solder Retention	Board to Cable/Wire	All	-55 C	85 °C	Gold	Female Blade Socket	30 VAC	0.197 "	5 mm	Natural	0.76 Ám	30 Áin	Surface Mount	Receptacle	UL94 V-0	Solder	Gold
TE Connectivity AMP Connectors 1375870-3					2	0.8 mm	0.031 in	Friction Lock	Solder Retention	Board to Cable/Wire	All	-55 C	85 °C	Gold	Female Blade Socket	30 VAC	0.197 "	5 mm	Natural	0.76 Ám	30 Áin	Surface Mount	Receptacle	UL94 V-0	Solder	Gold								10

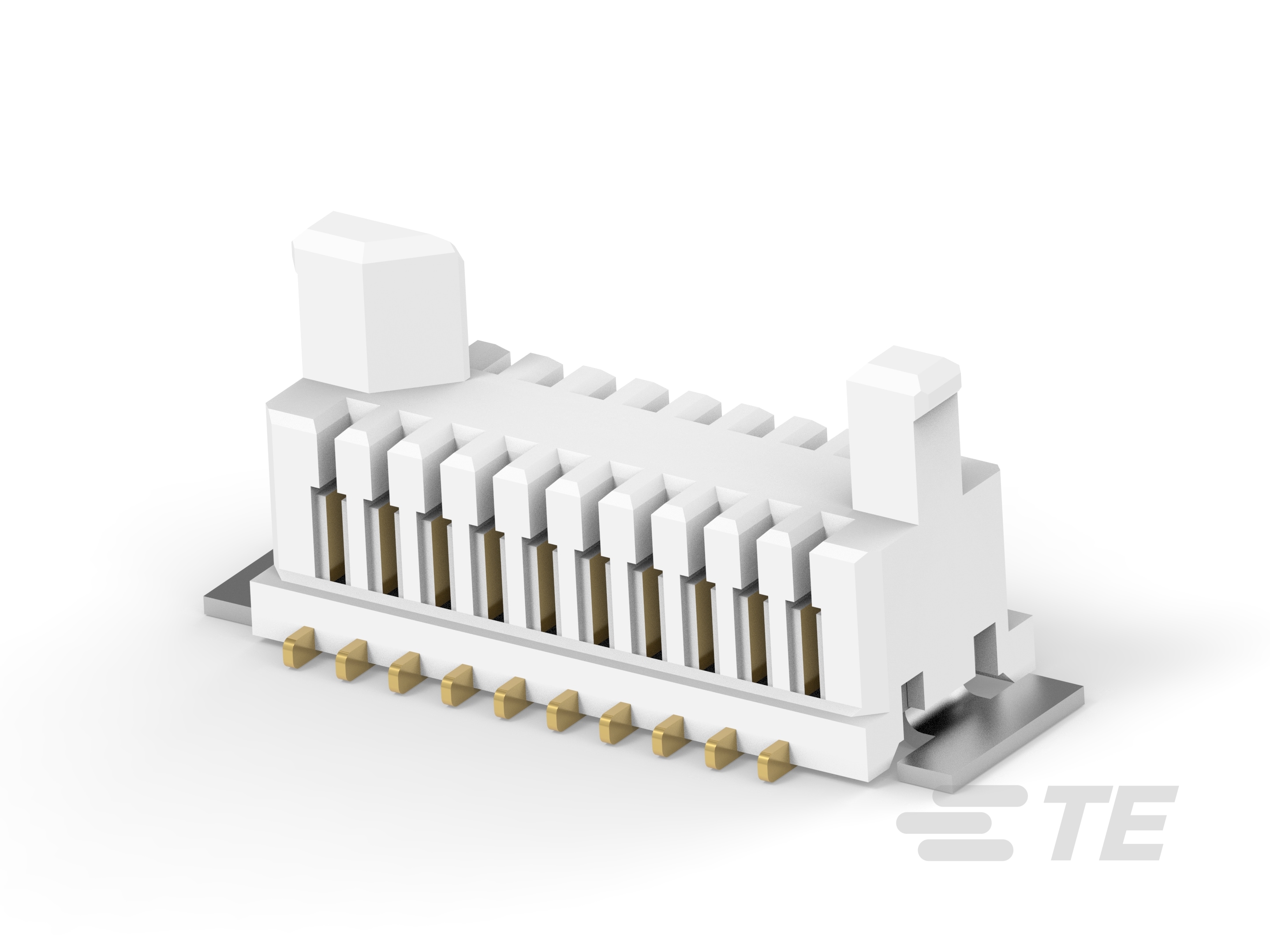

TE Connectivity AMP Connectors 1375870-8					2	0.8 mm	0.031 in	Friction Lock	Solder Retention	Board to Cable/Wire	All	-55 C	85 °C	Gold	Female Blade Socket	30 VAC	0.197 "	5 mm	Natural	0.76 Ám	30 Áin	Surface Mount	Receptacle	UL94 V-0	Solder	Gold								20
TE Connectivity AMP Connectors 1375875-6		Liquid Crystal Polymer (LCP)			2							-55 C	85 °C		Outer Shroud Contact							Free Hanging (In-Line)	Plug				Contacts Not Included	Natural	0.8 mm	0.031 in	3.3 mm	0.13 in	Crimp	16
TE Connectivity AMP Connectors 1-1375870-0					2	0.8 mm	0.031 in	Friction Lock	Solder Retention	Board to Cable/Wire	All	-55 C	85 °C	Gold	Female Blade Socket	30 VAC	0.197 "	5 mm	Natural	0.76 Ám	30 Áin	Surface Mount	Receptacle	UL94 V-0	Solder	Gold								24
