BFB1024 Series

Catalog

DC BLOWER CENTRIFUGAL BALL BEARING 24V 7V TO 27.6V 25.43CFM 52DB

Part	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Blade	Lifetime @ Temp.	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Fan Type	Weight	Weight	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Approval Agency	Voltage - Rated	Width	Noise	Power (Watts)	Features	Bearing Type	RPM

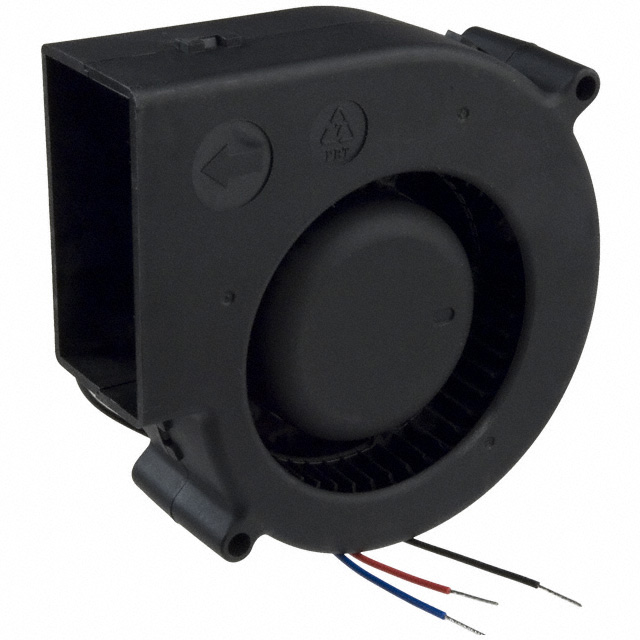

Delta Electronics BFB1024H-F00	Plastic	7 V	27.6 VDC	400 mA	Plastic	40 °C 50000 Hrs	25.4 CFM	0.711 m³/min	94.4 mm	Rectangular/Rounded	97.2 mm	Blower	0.353 lb	160.12 g	249.1 Pa	1 in H2O	-10 °C	60 °C	3 Wire Leads	CE CSA UL VDE	24 VDC	33 mm	52 dB	9.6 W	Locked Rotor Protection Speed Sensor (Tach)	Ball	3600 RPM

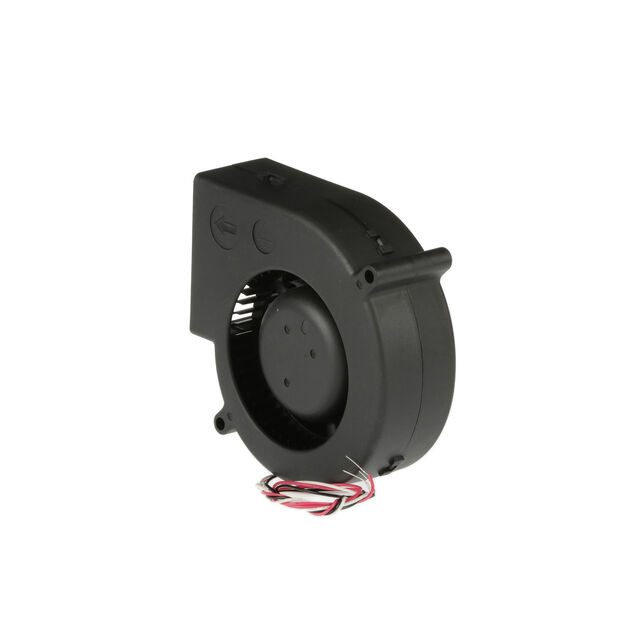

Delta Electronics BFB1024HHX01	Plastic	7 V	27.6 VDC	0.55 A	Plastic	40 °C 50000 Hrs	28.3 CFM	0.792 m³/min	94.4 mm	Rectangular/Rounded	97.2 mm	Blower	0.353 lb	160.12 g	323.6 Pa	1.299 in H2O	-10 °C	60 °C	3 Wire Leads	CE CSA UL VDE	24 VDC	33 mm	55 dB(A)	13.2 W	Locked Rotor Sensor	Ball	4000 RPM
Delta Electronics BFB1024H	Plastic	7 V	27.6 VDC	400 mA	Plastic	40 °C 50000 Hrs	25.4 CFM	0.711 m³/min	94.4 mm	Rectangular/Rounded	97.2 mm	Blower	0.353 lb	160.12 g	249.1 Pa	1 in H2O	-10 °C	60 °C	2 Wire Leads	CE CSA UL VDE	24 VDC	33 mm	52 dB	9.6 W		Ball	3600 RPM
Delta Electronics BFB1024HH	Plastic	7 V	27.6 VDC	0.55 A	Plastic	70000 Hrs	28.3 CFM	0.792 m³/min	94.4 mm	Rectangular/Rounded	97.2 mm	Blower	0.353 lb	160.12 g	323.6 Pa	1.299 in H2O	-10 °C	60 °C	2 Wire Leads	CE CSA UL VDE	24 VDC	33 mm	55 dB(A)	13.2 W		Ball	4000 RPM
