29-113 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

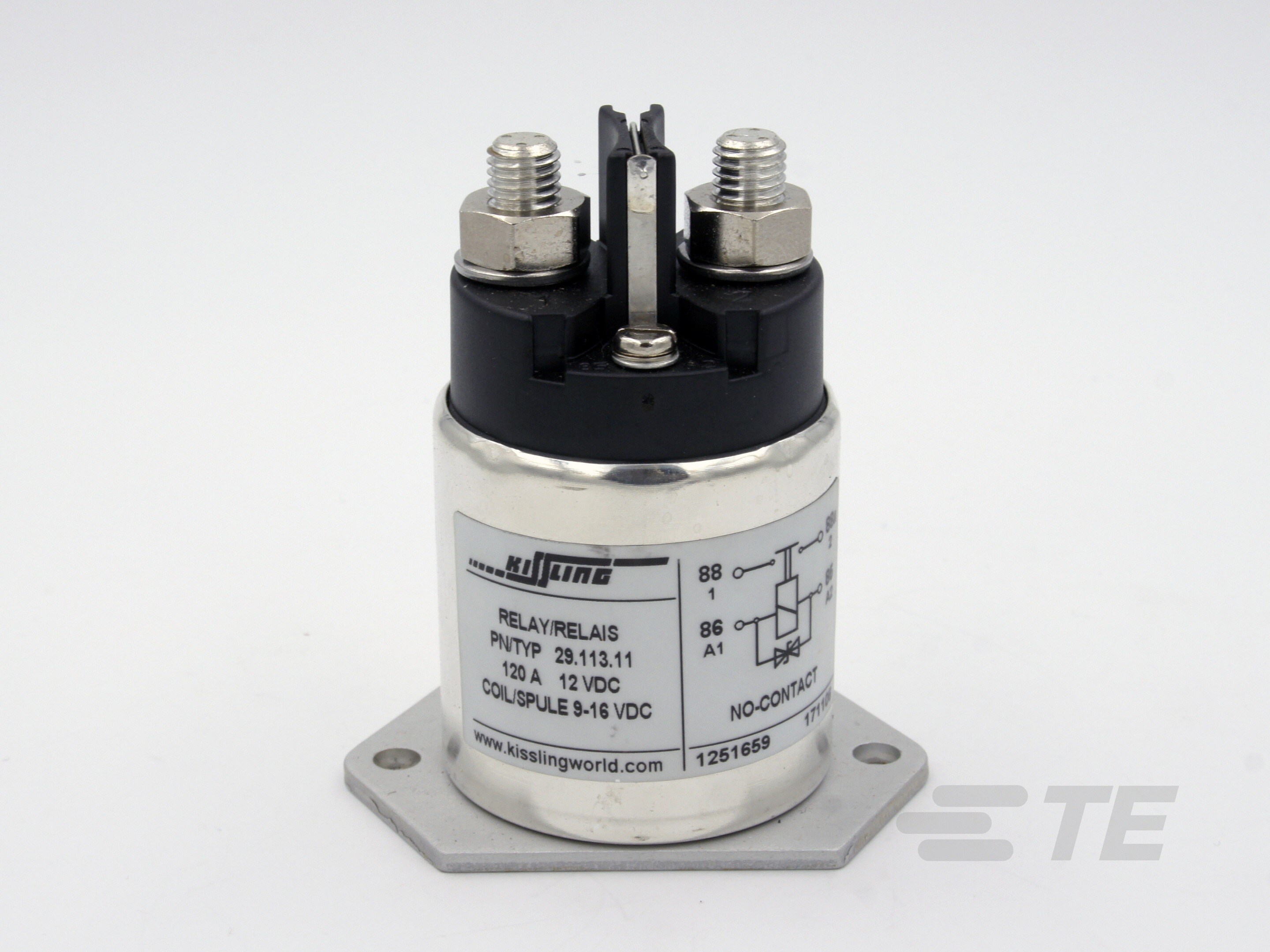

RELAY 29-113-12
| Part | Coil Type | Coil Current | Must Release Voltage | Mounting Type | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Coil Voltage | Contact Material | Contact Form | Relay Type | Operate Time | Release Time | Features | Load - Max Switching | Termination Style | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Non Latching | 350 mA | 4 VDC | Chassis Mount | 18 VDC | 85 °C | -40 °C | 120 A | 28 VDC | Silver Tin Oxide (AgSnO) | SPST-NO (DM) (1 Form X) | General Purpose | 35 ms | 15 ms | Diode | 10 W | Screw Terminal | 80 Ohms |
