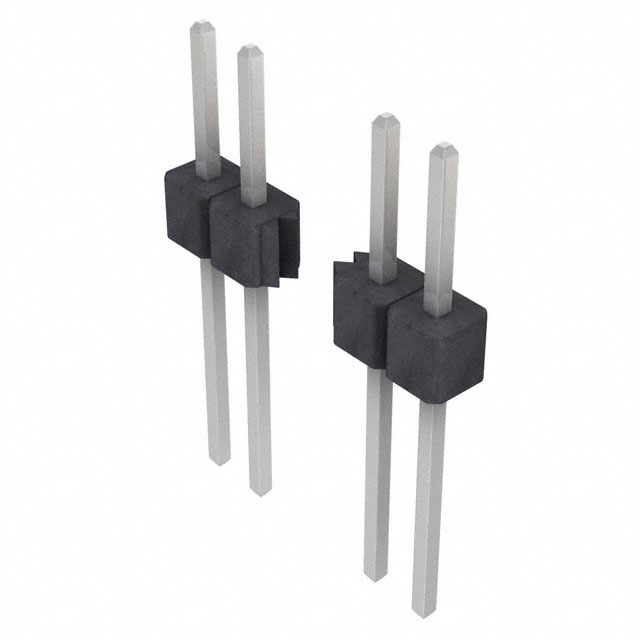

PTC19 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 38POS 2.54MM

Part	Insulation Color	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Style	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length [x]	Overall Contact Length [x]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Connector Type	Contact Finish - Post	Contact Shape	Number of Positions Loaded	Termination	Material Flammability Rating	Insulation Height	Insulation Height	Mounting Type	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Number of Rows [custom]	Contact Material	Shrouding	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]	Number of Rows	Overall Contact Length
Sullins Connector Solutions PTC19DAAN	Black	Push-Pull	2.54 µm	100 µin	0.1 "	2.54 mm	Board to Board Cable	0.23 in	5.84 mm	3.05 mm	0.12 in	11.43 mm	0.45 in	38	100 çin	2.54 çm	3 A	Header	Tin	Square	All	Solder	UL94 V-0	0.1 in	2.54 mm	Through Hole	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	2	Copper Alloy	Unshrouded
Sullins Connector Solutions PTC19DACN	Black	Push-Pull	2.54 µm	100 µin	0.1 "	2.54 mm	Board to Board Cable	0.23 in	5.84 mm	8.13 mm	0.32 in			38	100 çin	2.54 çm	3 A	Header	Tin	Square	All	Solder	UL94 V-0	0.1 in	2.54 mm	Through Hole	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	2	Copper Alloy	Unshrouded	16.51 mm	0.65 in
Sullins Connector Solutions PTC19DFAN	Black	Push-Pull	2.54 µm	100 µin	0.1 "	2.54 mm	Board to Board Cable	0.318 in	8.08 mm	3.05 mm	0.12 in	13.67 mm	0.538 in	38	100 çin	2.54 çm	3 A	Header	Tin	Square	All	Solder	UL94 V-0	0.1 in	2.54 mm	Through Hole	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	2	Copper Alloy	Unshrouded
Sullins Connector Solutions PTC19DAEN	Black	Push-Pull	2.54 µm	100 µin	0.1 "	2.54 mm	Board to Board Cable	0.23 in	5.84 mm	13.21 mm	0.52 in			38	100 çin	2.54 çm	3 A	Header	Tin	Square	All	Solder	UL94 V-0	0.1 in	2.54 mm	Through Hole	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	2	Copper Alloy	Unshrouded	21.59 mm	0.85 in
Sullins Connector Solutions PTC19DBCN	Black	Push-Pull	2.54 µm	100 µin	0.1 "	2.54 mm	Board to Board Cable	0.23 in	5.84 mm	8.13 mm	0.32 in			38	100 çin	2.54 çm	3 A	Header	Tin	Square	All	Solder	UL94 V-0			Right Angle Through Hole	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	2	Copper Alloy	Unshrouded			6.1 mm	0.24 in
Sullins Connector Solutions PTC19SFCN	Black	Push-Pull	2.54 µm	100 µin	0.1 "	2.54 mm	Board to Board Cable	0.318 in	8.08 mm	8.13 mm	0.32 in			19	100 çin	2.54 çm	3 A	Header	Tin	Square	All	Solder	UL94 V-0	0.1 in	2.54 mm	Through Hole	Polyester Thermoplastic			Male Pin		Copper Alloy	Unshrouded	18.75 mm				1	0.738 in
Sullins Connector Solutions PTC19SBDN	Black	Push-Pull	2.54 µm	100 µin	0.1 "	2.54 mm	Board to Board Cable	0.23 in	5.84 mm	10.67 mm	0.42 in			19	100 çin	2.54 çm	3 A	Header	Tin	Square	All	Solder	UL94 V-0	0.14 in	3.56 mm	Right Angle Through Hole	Polyester Thermoplastic			Male Pin		Copper Alloy	Unshrouded					1

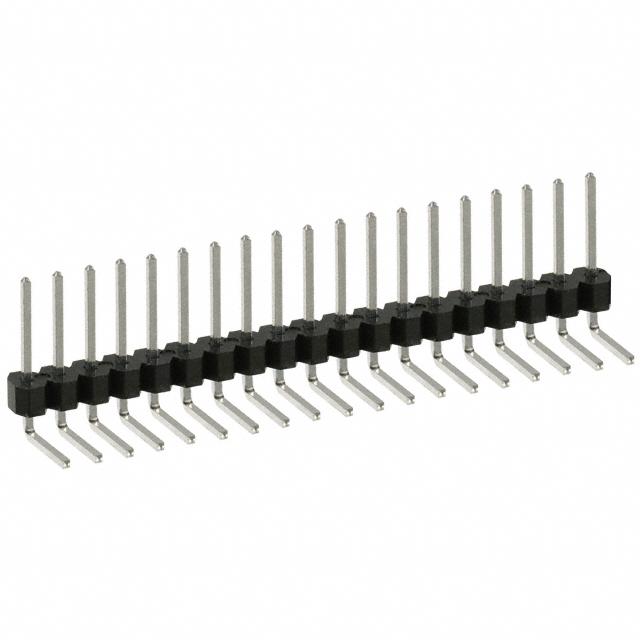

Sullins Connector Solutions PTC19SGBN	Black	Push-Pull	2.54 µm	100 µin	0.1 "	2.54 mm	Board to Board Cable	0.318 in	8.08 mm	5.58 mm	0.22 in			19	100 çin	2.54 çm	3 A	Header	Tin	Square	All	Solder	UL94 V-0	0.14 in	3.56 mm	Right Angle Through Hole	Polyester Thermoplastic			Male Pin		Copper Alloy	Unshrouded					1
Sullins Connector Solutions PTC19DABN	Black	Push-Pull	2.54 µm	100 µin	0.1 "	2.54 mm	Board to Board Cable	0.23 in	5.84 mm	5.84 mm	0.23 "			38	100 çin	2.54 çm	3 A	Header	Tin	Square	All	Solder	UL94 V-0	0.1 in	2.54 mm	Through Hole	Polyester Thermoplastic	0.1 in	2.54 mm	Male Pin	2	Copper Alloy	Unshrouded	14.22 mm	0.56 in
Sullins Connector Solutions PTC19SFDN	Black	Push-Pull	2.54 µm	100 µin	0.1 "	2.54 mm	Board to Board Cable	0.318 in	8.08 mm	10.67 mm	0.42 in			19	100 çin	2.54 çm	3 A	Header	Tin	Square	All	Solder	UL94 V-0	0.1 in	2.54 mm	Through Hole	Polyester Thermoplastic			Male Pin		Copper Alloy	Unshrouded	21.29 mm	0.838 in			1
