SKRWA Series
Manufacturer: Alps Alpine
Beta
⌘K

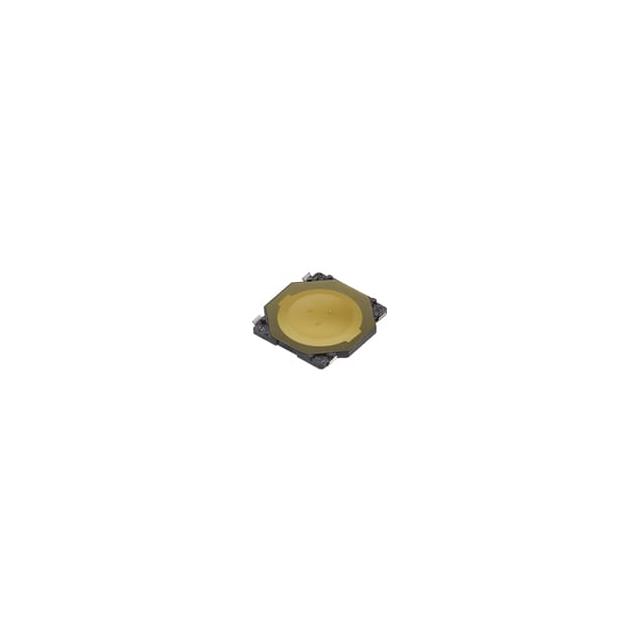

SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Outline [y] | Outline [x] | Actuator Type | Illumination | Contact Rating @ Voltage | Switch Function | Switch Travel | Mechanical Life | Actuator Height off PCB, Vertical [z] | Termination Style | Circuit | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Alps Alpine | -30 ░C | 85 °C | Surface Mount | 3.7 mm | 3.7 mm | Snap Dome | Non-Illuminated | 0.05 A 12 VDC | Off-Mom | 0.15 mm | 500000 Cycles | 0.35 mm | J Lead | SPST-NO | Top Actuated |
