SRD1-1A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPST 21A 14V
| Part | Mechanical Life | Electrical Life | Ingress Protection | Illumination Voltage (Nominal) | Current Rating (Amps) | Circuit | Actuator Marking | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage Rating - DC | Color - Actuator/Cap | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Switch Function | Termination Style | Illumination Type, Color | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

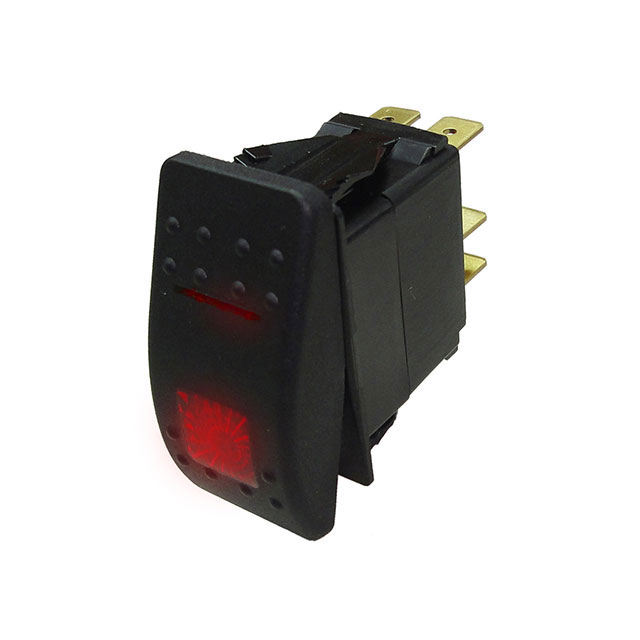

 Switch Components | 10000 Steps | 6000 Cycles | IP56 - Dust Protected Water Resistant | 14 VDC | 21 A | SPST | No Marking | Convex (Reverse V) - Illuminated | 85 °C | -25 °C | Panel Mount Snap-In | 14 V | Black | 36.8 mm | 21.2 mm | On-Off | Quick Connect - 0.250" (6.3mm) | LED Red | |
 Switch Components | 10000 Steps | 6000 Cycles | IP56 - Dust Protected Water Resistant | 20 A 21 A | SPST | No Marking | Convex (Reverse V) | 85 °C | -25 °C | Panel Mount Snap-In | 14 V | Black | 36.8 mm | 21.2 mm | On-Off | Quick Connect - 0.250" (6.3mm) | 125 V | ||

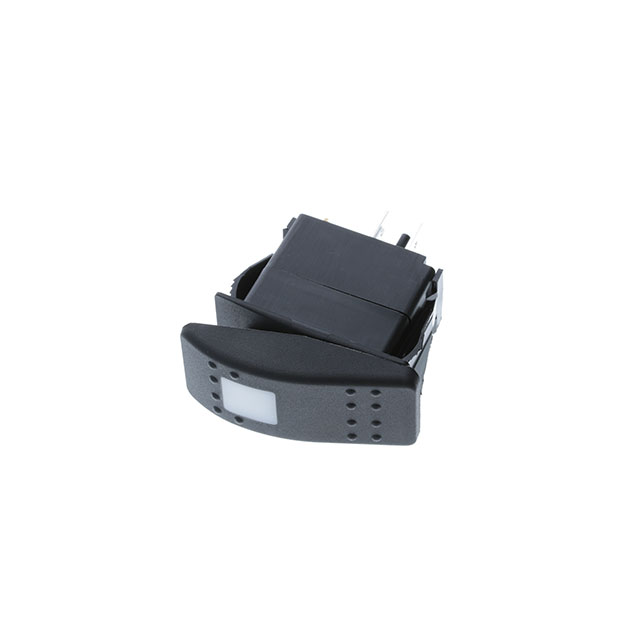

 Switch Components | 10000 Steps | 6000 Cycles | IP56 - Dust Protected Water Resistant | 14 VDC | 21 A | SPST | No Marking | Convex (Reverse V) - Illuminated | 85 °C | -25 °C | Panel Mount Snap-In | 14 V | Black | 36.8 mm | 21.2 mm | On-Off | Quick Connect - 0.250" (6.3mm) | Amber LED | |
 Switch Components | 10000 Steps | 6000 Cycles | IP56 - Dust Protected Water Resistant | 20 A 21 A | SPST | No Marking | Convex (Reverse V) | 85 °C | -25 °C | Panel Mount Snap-In | 14 V | Red | 36.8 mm | 21.2 mm | On-Off | Quick Connect - 0.250" (6.3mm) | 125 V |
