S5P-VH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

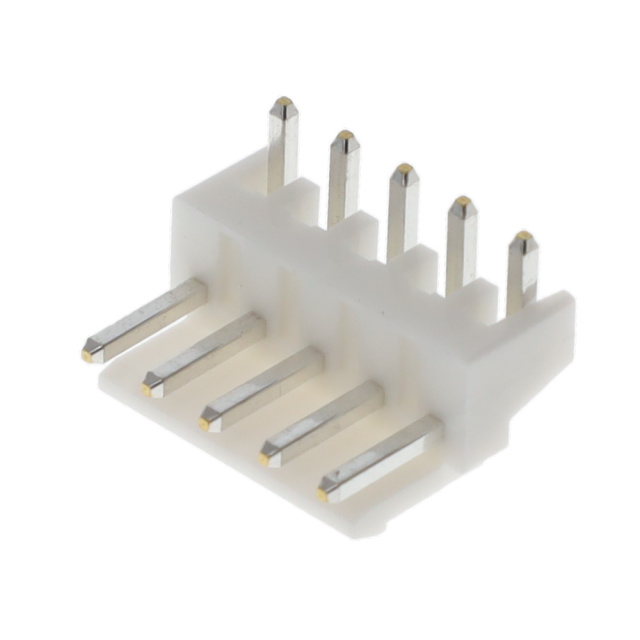

CONN HEADER R/A 5POS 3.96MM
| Part | Number of Rows | Style | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Contact Shape | Voltage Rating | Number of Positions | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Material Flammability Rating | Insulation Material | Current Rating (Amps) | Connector Type | Contact Material | Termination | Insulation Color | Mounting Type | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Type | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 1 | Board to Cable/Wire | Tin | 0.303 in | 7.7 mm | All | Square | 250 V | 5 | Shrouded - 1 Wall | 85 °C | -25 °C | Locking Ramp | UL94 V-0 | Nylon 6/6 Polyamide (PA66) | 10 A | Header | Brass | Solder | Natural | Right Angle Through Hole | 0.335 " | 8.51 mm | 3.96 mm | 0.156 in | Male Pin | 0.142 in | 3.6 mm |
