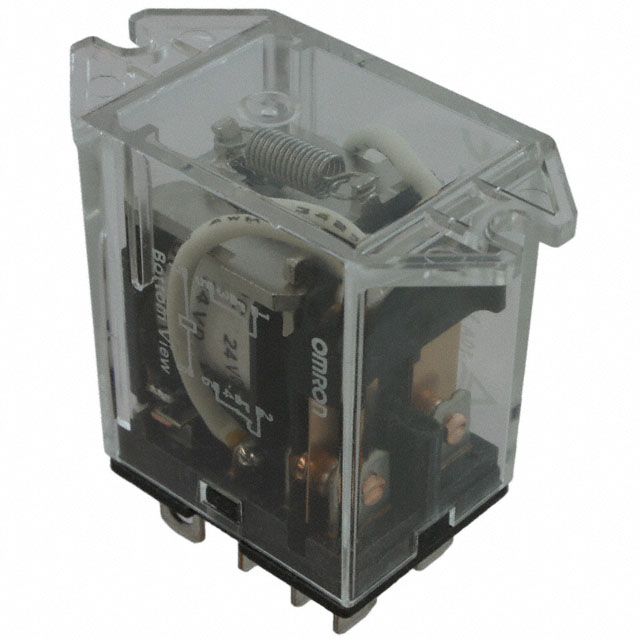

LY2F-DC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 6V
| Part | Termination Style | Coil Current | Contact Form | Contact Material | Operate Time | Mounting Type | Approval Agency | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Coil Type | Must Release Voltage | Coil Resistance | Relay Type | Load - Max Switching | Contact Rating (Current) | Switching Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Plug In | 150 mA | DPDT (2 Form C) | Silver Alloy | 25 ms | Chassis Mount | CE CSA TUV UR | 4.8 VDC | 55 °C | -25 °C | 25 ms | Non Latching | 0.6 VDC | 40 Ohms | General Purpose | 1250 W 2500 VA | 10 A | 125 VDC 250 VAC | |
Omron Electronics Inc-EMC Div | Plug In | 10 mA | DPDT (2 Form C) | Silver Alloy | 25 ms | Chassis Mount | CE CSA TUV UR | 88 VDC | 55 °C | -25 °C | 25 ms | Non Latching | 11 VDC | 11000 Ohms | General Purpose | 1250 W 2500 VA | 10 A | 125 VDC 250 VAC | 110 VDC |
 Omron Electronics Inc-EMC Div | Plug In | 36.9 mA | DPDT (2 Form C) | Silver Alloy | 25 ms | Chassis Mount | CE CSA TUV UR | 19.2 VDC | 55 °C | -25 °C | 25 ms | Non Latching | 2.4 VDC | 650 Ohms | General Purpose | 1250 W 2500 VA | 10 A | 125 VDC 250 VAC | 24 VDC |
Omron Electronics Inc-EMC Div | Plug In | 18.5 mA | DPDT (2 Form C) | Silver Alloy | 25 ms | Chassis Mount | CE CSA TUV UR | 38.4 VDC | 55 °C | -25 °C | 25 ms | Non Latching | 4.8 VDC | 2.6 kOhms | General Purpose | 1250 W 2500 VA | 10 A | 125 VDC 250 VAC | 48 VDC |
