1600 Series

Catalog

RING TONGUE TERMINAL, M10, 3/8", 8 AWG, 8 MM², SOLISTRAND SERIES

Part	Termination	Contact Material	Mounting Type	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge	Insulation	Contact Finish	Length - Overall	Length - Overall	Thickness	Thickness	Features	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges	Width - Outer Edges	Wire Gauge [Max]	Wire Gauge [Min]
TE Connectivity AMP Connectors 160056	Crimp	Copper	Free Hanging (In-Line)	Circular	0.594 in	15.09 mm	8 AWG	Non-Insulated	Tin	1.17 in	29.72 mm	0.048 "	1.22 mm	Brazed Seam

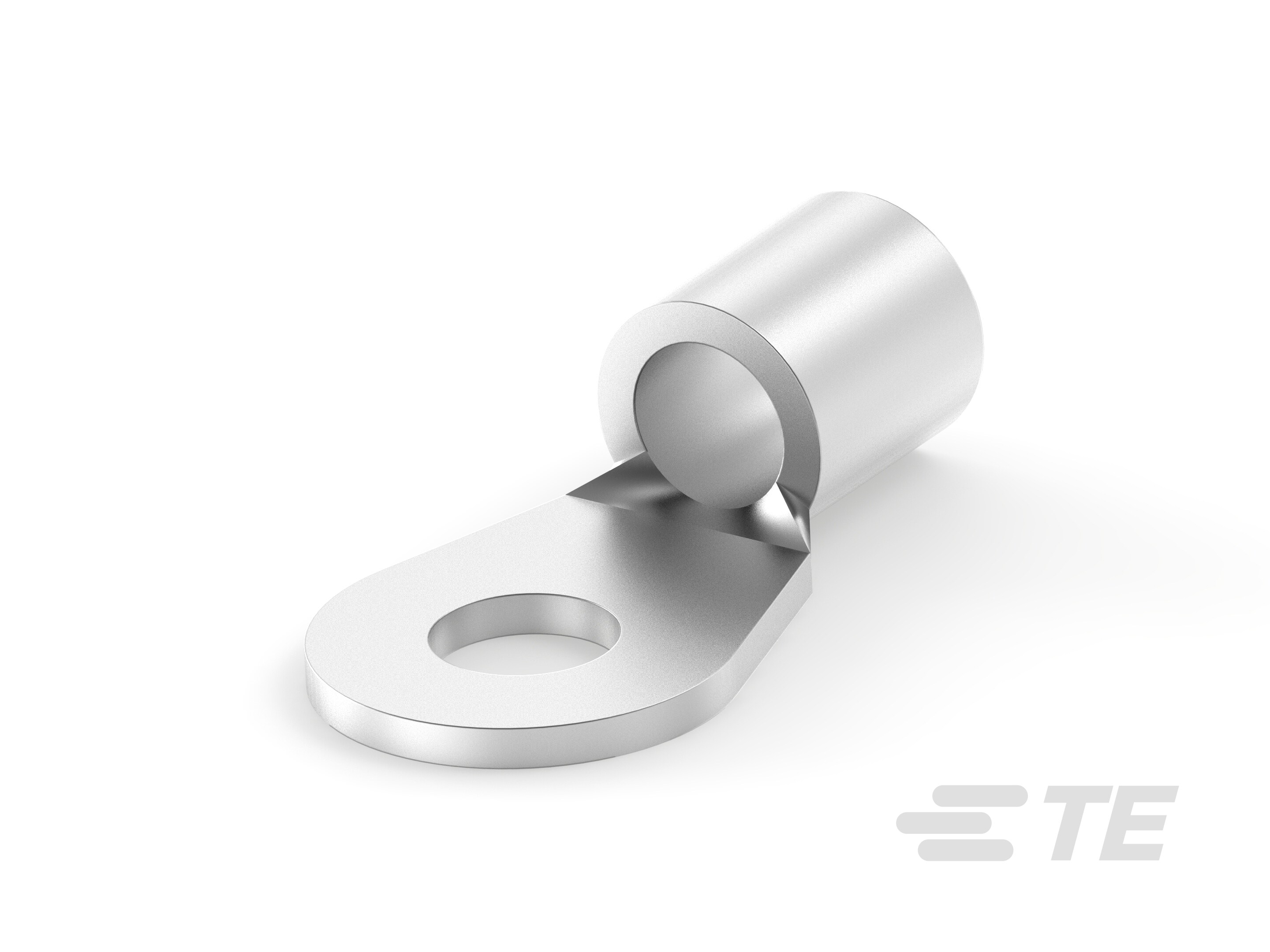

TE Connectivity AMP Connectors 160013	Crimp	Copper	Free Hanging (In-Line)	Circular	0.469 "	11.91 mm	8 AWG	Non-Insulated	Tin			0.048 "	1.22 mm	Brazed Seam Serrated Termination	M5 Stud	23.7 mm	0.933 in

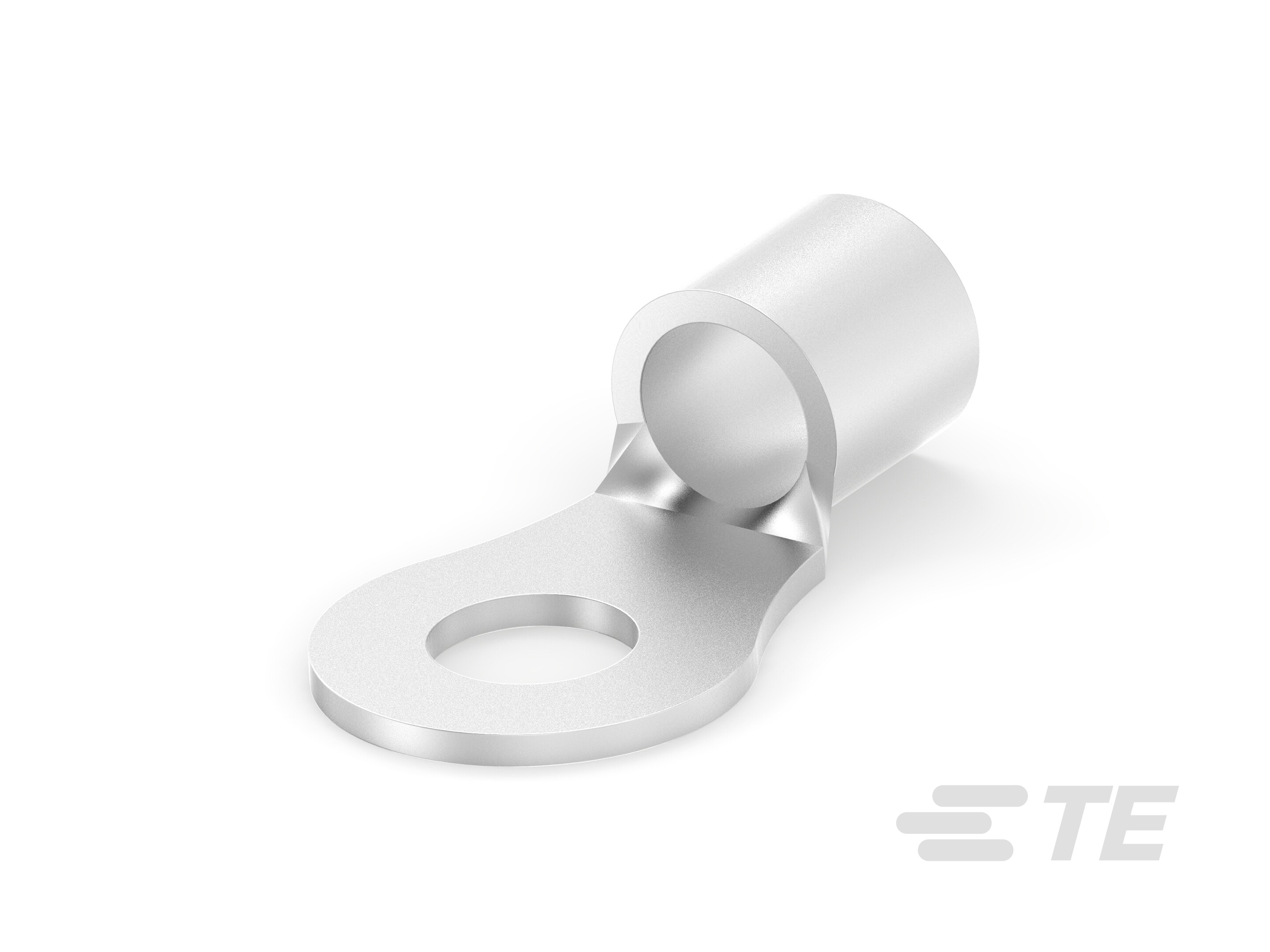

TE Connectivity AMP Connectors 160002	Crimp	Copper	Free Hanging (In-Line)	Circular			2 AWG	Non-Insulated	Tin			0.071 "	1.8 mm	Brazed Seam Serrated Termination	M10	42.2 mm	1.661 in	22.2 mm	0.874 "
TE Connectivity AMP Connectors 160000	Crimp	Copper	Free Hanging (In-Line)	Circular				Non-Insulated	Tin			0.071 "	1.8 mm	Serrated Termination	M10	49.7 mm	1.957 in	22.2 mm	0.874 "	1	1/0
