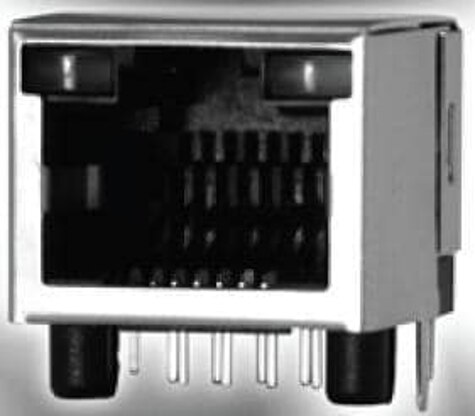

GWLX Series
Modular Connectors / Ethernet Connectors M/JK SMT 8P8C SHD T/S G/T G/G LEDS 50U
Manufacturer: Kycon, Inc.
Catalog
Modular Connectors / Ethernet Connectors M/JK SMT 8P8C SHD T/S G/T G/G LEDS 50U
Beta
⌘K
Modular Connectors / Ethernet Connectors M/JK SMT 8P8C SHD T/S G/T G/G LEDS 50U
Modular Connectors / Ethernet Connectors M/JK SMT 8P8C SHD T/S G/T G/G LEDS 50U
Modular Connectors / Ethernet Connectors M/JK SMT 8P8C SHD T/S G/T G/G LEDS 50U
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Housing Material | Contact Finish Thickness | Connector Type | Number of Positions | Number of Contacts | Features | Shielding | Number of Rows | Mounting Type | Tab Direction | Termination | Number of Ports | Contact Finish | Contact Material | LED Color | Orientation Angle | Orientation Direction | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 50 µin | Ethernet Jack RJ45 | 8 | 8 | Board Lock | Shielded | 1 | Through Hole | Up | Solder | 1 | Gold | Phosphor Bronze | Yellow - Green | 90 ° | Right | ||
 Kycon, Inc. | Ethernet Jack RJ45 | 8 | 8 | Board Lock | EMI Finger Shielded | 1 | Surface Mount | Up | Solder | 1 | Gold | Phosphor Bronze | Green - Green | 90 ° | Right | ||||||
Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 50 µin | Ethernet Jack RJ45 | 8 | 8 | Board Lock | EMI Finger Shielded | 1 | Through Hole | Up | Solder | 1 | Gold | Phosphor Bronze | Green - Green | 90 ° | Right | ||
 Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 0 | Ethernet Jack RJ45 | 8 | 8 | Board Lock | Shielded | 1 | Through Hole | Up | Solder | 1 | Gold | Phosphor Bronze | Green - Yellow | 90 ° | Right | Flash | Flash |
Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 50 µin | Ethernet Jack RJ45 | 8 | 8 | Board Lock | Unshielded | 1 | Through Hole | Up | Solder | 1 | Gold | Phosphor Bronze | Yellow - Green | 90 ° | Right | ||
 Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 50 µin | Ethernet Jack RJ45 | 8 | 8 | Board Lock | EMI Finger Shielded | 1 | Through Hole | Up | Solder | 1 | Gold | Phosphor Bronze | Green - Yellow | 90 ° | Right | ||
Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 50 µin | Ethernet Jack RJ45 | 8 | 8 | Board Lock | Shielded | 1 | Through Hole | Up | Solder | 1 | Gold | Phosphor Bronze | Green - Red | 90 ° | Right | ||
Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 0 | Ethernet Jack RJ45 | 8 | 8 | Board Lock | Shielded | 1 | Surface Mount | Up | Solder | 1 | Gold | Phosphor Bronze | Yellow - Yellow | 90 ° | Right | Flash | Flash |
