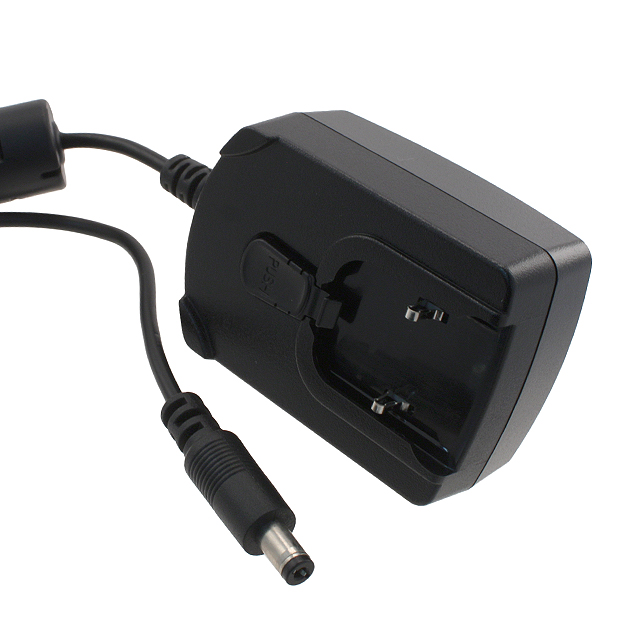

PSC15R Series

Wall Mount AC Adapters 15W 9V 1.67A Level VI

Manufacturer: Phihong USA

Catalog

Wall Mount AC Adapters 15W 9V 1.67A Level VI

Catalog

Wall Mount AC Adapters 15W 9V 1.67A Level VI

Part	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Output Connector [x]	Output Connector [diameter]	Output Connector	Power (Watts)	Weight [custom]	Weight [custom]	Input Type	Form	Cord Length	Cord Length	Polarization	Input Connector	Efficiency	Region Utilized	Applications	Voltage - Output	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Standard Number
Phihong USA PSC15R-090	100 mW	264 VAC	90 VAC	40 °C	0 °C	1.67 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	15 W	151.05 g	0.333 lb	Multi-Blade (Sold Separately)	Wall Mount	1.5 m	59 in	Positive Center	Multi-Blade	Level VI	International	ITE (Commercial)	9 V	CB CE cULus	45 mm	71.7 mm	1.77 in	2.82 in	33 mm	1.3 in
Phihong USA PSC15R-075-R	100 mW	264 VAC	90 VAC	40 °C	0 °C	2 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	15 W			Multi-Blade (Sold Separately)	Wall Mount	1.5 m	59 in	Positive Center	Multi-Blade	Level VI	International	ITE (Commercial)	7.5 V	CB CE cULus	45 mm	71.7 mm	1.77 in	2.82 in	33 mm	1.3 in
Phihong USA PSC15R-060	100 mW	264 VAC	90 VAC	40 °C	0 °C	2.5 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	15 W	151.05 g	0.333 lb	Multi-Blade (Sold Separately)	Wall Mount	1.5 m	59 in	Positive Center	Multi-Blade	Level VI	International	ITE (Commercial)	5.9 V	CB CE cULus	45 mm	71.7 mm	1.77 in	2.82 in	33 mm	1.3 in
Phihong USA PSC15R-075	100 mW	264 VAC	90 VAC	40 °C	0 °C	2 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	15 W	151.05 g	0.333 lb	Multi-Blade (Sold Separately)	Wall Mount	1.5 m	59 in	Positive Center	Multi-Blade	Level VI	International	ITE (Commercial)	7.5 V	CB CE cULus	45 mm	71.7 mm	1.77 in	2.82 in	33 mm	1.3 in
Phihong USA PSC15R-050	100 mW	264 VAC	90 VAC	40 °C	0 °C	3 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	15 W	151.05 g	0.333 lb	Multi-Blade (Sold Separately)	Wall Mount	1.5 m	59 in	Positive Center	Multi-Blade	Level VI	International	ITE (Commercial)	5 V	CB CE cULus	45 mm	71.7 mm	1.77 in	2.82 in	33 mm	1.3 in
Phihong USA PSC15R-050-R	100 mW	264 VAC	90 VAC	40 °C	0 °C	3 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	15 W			Multi-Blade (Sold Separately)	Wall Mount	1.5 m	59 in	Positive Center	Multi-Blade	Level VI	International	ITE (Commercial)	5 V	CB CE cULus	45 mm	71.7 mm	1.77 in	2.82 in	33 mm	1.3 in
Phihong USA PSC15R-060-R	100 mW	264 VAC	90 VAC	40 °C	0 °C	2.5 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	15 W			Multi-Blade (Sold Separately)	Wall Mount	1.5 m	59 in	Positive Center	Multi-Blade	Level VI	International	ITE (Commercial)	5.9 V	CB CE cULus	45 mm	71.7 mm	1.77 in	2.82 in	33 mm	1.3 in

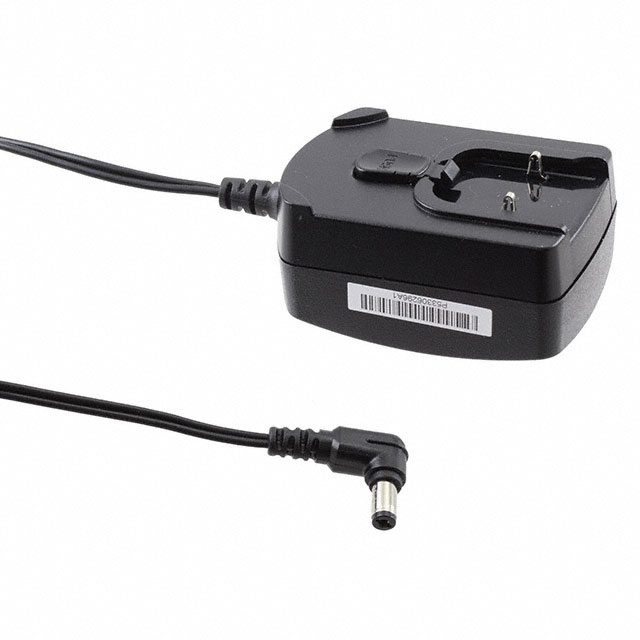

Phihong USA PSC15R-050-R-CR1	100 mW	264 VAC	90 VAC	40 °C	0 °C	3 A	10 mm	2.1 mm 5.5 mm	Barrel Plug R/A	15 W	151.05 g	0.333 lb	Multi-Blade (Sold Separately)	Wall Mount	1.5 m	59 in	Positive Center	Multi-Blade	Level VI	International	ITE (Commercial)	5 V	AS/NZS cULus IEC	45 mm	71.7 mm	1.77 in	2.82 in	33 mm	1.3 in	60950-1
Phihong USA PSC15R-090-R	100 mW	264 VAC	90 VAC	40 °C	0 °C	1.67 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	15 W			Multi-Blade (Sold Separately)	Wall Mount	1.5 m	59 in	Positive Center	Multi-Blade	Level VI	International	ITE (Commercial)	9 V	CB CE cULus	45 mm	71.7 mm	1.77 in	2.82 in	33 mm	1.3 in
