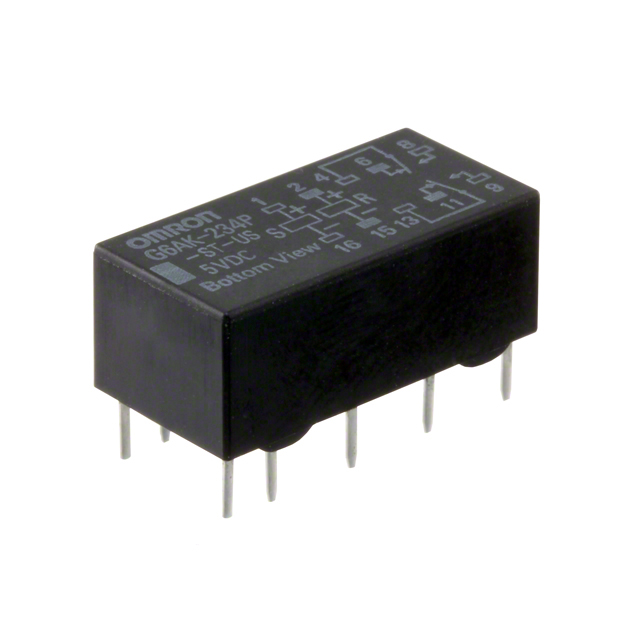

G6AK-2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 1A 48V
| Part | Coil Resistance | Coil Voltage | Relay Type | Contact Rating (Current) | Coil Current | Contact Material | Operate Time | Load - Max Switching | Contact Form | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Release Time | Mounting Type | Coil Type | Must Operate Voltage | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 6.4 kOhms | 48 VDC | General Purpose | 1 A | 7.5 mA | Gold (Au) Silver Palladium (AgPd) | 5 ms | 220 W 250 VA | DPDT (2 Form C) | 220 VDC 250 VAC | -40 °C | 70 °C | 5 ms | Through Hole | Latching Dual Coil | 33.6 VDC | PC Pin |
Omron Electronics Inc-EMC Div | 1.6 kOhms | 24 VDC | General Purpose | 1 A | 15 mA | Gold (Au) Silver Palladium (AgPd) | 5 ms | 220 W 250 VA | DPDT (2 Form C) | 220 VDC 250 VAC | -40 °C | 70 °C | 5 ms | Through Hole | Latching Dual Coil | 16.8 VDC | PC Pin |
Omron Electronics Inc-EMC Div | General Purpose | 5 ms | DPDT (2 Form C) | 220 VDC 250 VAC | -40 °C | 70 °C | 3 ms | Through Hole | Latching Dual Coil | PC Pin | |||||||
Omron Electronics Inc-EMC Div | 800 Ohms | 12 VDC | General Purpose | 1 A | 15 mA | Gold (Au) Silver Palladium (AgPd) | 5 ms | 220 W 250 VA | DPDT (2 Form C) | 220 VDC 250 VAC | -40 °C | 70 °C | 5 ms | Through Hole | Latching Dual Coil | 8.4 VDC | PC Pin |
Omron Electronics Inc-EMC Div | 45 Ohms | General Purpose | 1 A | 66.7 mA | Gold (Au) Silver Palladium (AgPd) | 5 ms | 220 W 250 VA | DPDT (2 Form C) | 220 VDC 250 VAC | -40 °C | 70 °C | 5 ms | Through Hole | Latching Dual Coil | 2.1 VDC | PC Pin | |
Omron Electronics Inc-EMC Div | 1.6 kOhms | 24 VDC | General Purpose | 2 A | 15 mA | Gold (Au) Silver (Ag) | 5 ms | 440 W 500 VA | DPDT (2 Form C) | 220 VDC 250 VAC | -40 °C | 70 °C | 5 ms | Through Hole | Latching Dual Coil | 16.8 VDC | PC Pin |
Omron Electronics Inc-EMC Div | 3.2 kOhms | 24 VDC | General Purpose | 2 A | 7.5 mA | Gold (Au) Silver (Ag) | 5 ms | 440 W 500 VA | DPDT (2 Form C) | 220 VDC 250 VAC | -40 °C | 70 °C | 5 ms | Through Hole | Latching Dual Coil | 16.8 VDC | PC Pin |
Omron Electronics Inc-EMC Div | 6.4 kOhms | 48 VDC | General Purpose | 1 A | 7.5 mA | Gold (Au) Silver Palladium (AgPd) | 5 ms | 220 W 250 VA | DPDT (2 Form C) | 220 VDC 250 VAC | -40 °C | 70 °C | 5 ms | Through Hole | Latching Dual Coil | 33.6 VDC | PC Pin |
Omron Electronics Inc-EMC Div | 139 Ohms | 5 VDC | General Purpose | 1 A | 36 mA | Gold (Au) Silver Palladium (AgPd) | 5 ms | 220 W 250 VA | DPDT (2 Form C) | 220 VDC 250 VAC | -40 °C | 70 °C | 5 ms | Through Hole | Latching Dual Coil | 3.5 VDC | PC Pin |
Omron Electronics Inc-EMC Div | 12 VDC | General Purpose | 2 A | Gold (Au) Silver (Ag) | 5 ms | 440 W 500 VA | DPDT (2 Form C) | 220 VDC 250 VAC | -40 °C | 70 °C | 5 ms | Through Hole | Latching Dual Coil | 8.4 VDC | PC Pin |
