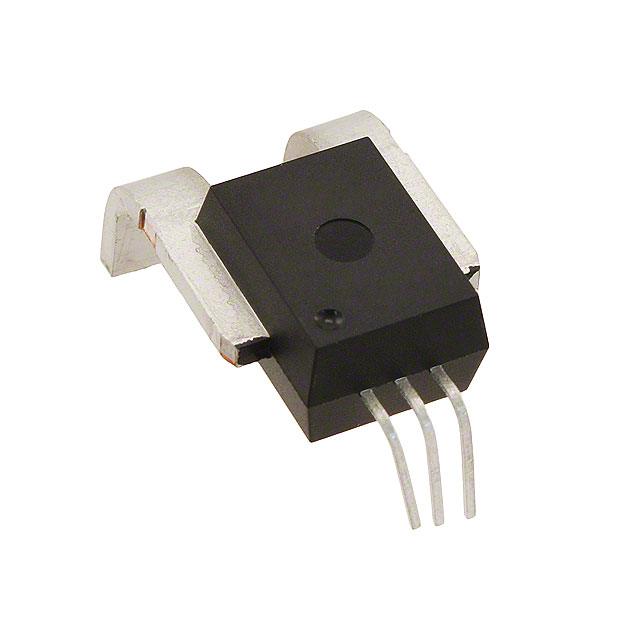

ACS759 Series
Manufacturer: Allegro MicroSystems
Beta
⌘K
BOARD MOUNT CURRENT SENSORS FOR NEW DESIGNS USE ACS772/3
| Part | Output | Supplier Device Package | Accuracy | Sensitivity | Mounting Type | Linearity | Polarization | Current - Supply (Max) [Max] | Number of Channels [custom] | Package / Case | Sensor Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Sensing | Response Time | For Measuring |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Allegro MicroSystems | Ratiometric Voltage | 5-CB Module | 3.5 % | 26.4 mV/A | Through Hole | 1 % | Bidirectional | 13.5 mA | 1 | 5-CB Formed Leads PFF | Hall Effect Open Loop | 3.6 V | 3 V | -40 C | 150 °C | 50 A | 4 µs | AC DC |
 Allegro MicroSystems | Ratiometric Voltage | 5-CB Module | 4 % | 6.6 mV/A | Through Hole | 1 % | Bidirectional | 13.5 mA | 1 | 5-CB Formed Leads PFF | Hall Effect Open Loop | 3.6 V | 3 V | -40 C | 85 °C | 200 A | 4 µs | AC DC |
Allegro MicroSystems | Ratiometric Voltage | 5-CB Module | 4 % | 8.8 mV/A | Through Hole | 1 % | Bidirectional | 13.5 mA | 1 | 5-CB Formed Leads PFF | Hall Effect Open Loop | 3.6 V | 3 V | -40 C | 125 °C | 150 A | 4 µs | AC DC |
