GZC08 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 8POS 2.54MM

Part	Number of Positions	Current Rating (Amps)	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Material	Insulation Color	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Mounting Type	Pitch - Mating	Pitch - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Post	Number of Positions Loaded	Number of Rows	Material Flammability Rating	Contact Type	Shrouding	Fastening Type	Contact Finish - Mating	Voltage Rating	Contact Length - Mating	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions GZC08SFBN-M30	8	3 A	Header	0.318 "	8.08 mm	Nylon 9T Polyamide (PA9T)	Black	0.1 in	2.54 mm	125 °C	-65 ░C	Board to Board Cable	2.54 µm	100 µin	Square	Surface Mount	0.1 in	2.54 mm	Solder	10 çin	0.25 çm	Phosphor Bronze	Tin-Lead	All	1	UL94 V-0	Male Pin	Unshrouded	Push-Pull	Gold	600 V
Sullins Connector Solutions GZC08SABN-M30	8	3 A	Header	0.23 in		Nylon 9T Polyamide (PA9T)	Black	0.1 in	2.54 mm	125 °C	-65 ░C	Board to Board Cable	2.54 µm	100 µin	Square	Surface Mount	0.1 in	2.54 mm	Solder	10 çin	0.25 çm	Phosphor Bronze	Tin-Lead	All	1	UL94 V-0	Male Pin	Unshrouded	Push-Pull	Gold	600 V	5.84 mm

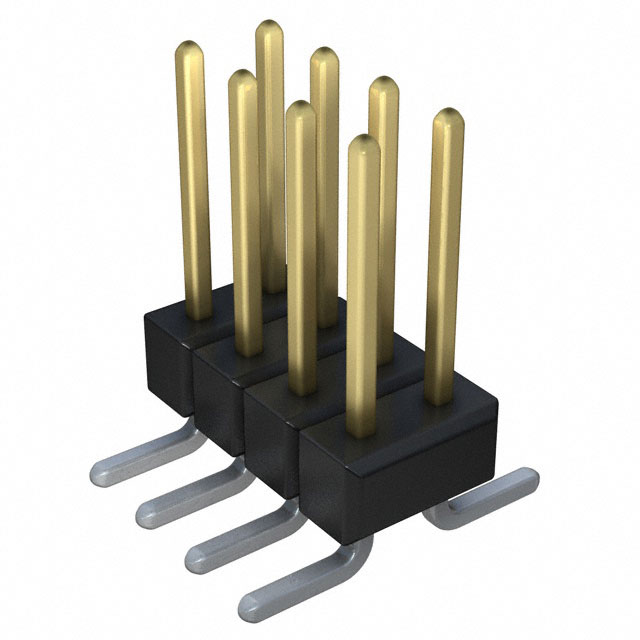

Sullins Connector Solutions GZC08DFBN-M30		3 A	Header	0.318 "	8.08 mm	Nylon 9T Polyamide (PA9T)	Black	0.1 in	2.54 mm	125 °C	-65 ░C	Board to Board Cable	2.54 µm	100 µin	Square	Surface Mount	0.1 in	2.54 mm	Solder	10 çin	0.25 çm	Phosphor Bronze	Tin-Lead	All	2	UL94 V-0	Male Pin	Unshrouded	Push-Pull	Gold	600 V		16	2.54 mm	0.1 in
Sullins Connector Solutions GZC08SGSN-M89	8	3 A	Header	0.318 "	8.08 mm	Nylon 9T Polyamide (PA9T)	Black	0.14 in	3.56 mm	125 °C	-65 ░C	Board to Board Cable	2.54 µm	100 µin	Square	Surface Mount Right Angle	0.1 in	2.54 mm	Solder	10 çin	0.25 çm	Phosphor Bronze	Tin-Lead	All	1	UL94 V-0	Male Pin	Unshrouded	Push-Pull	Gold	600 V

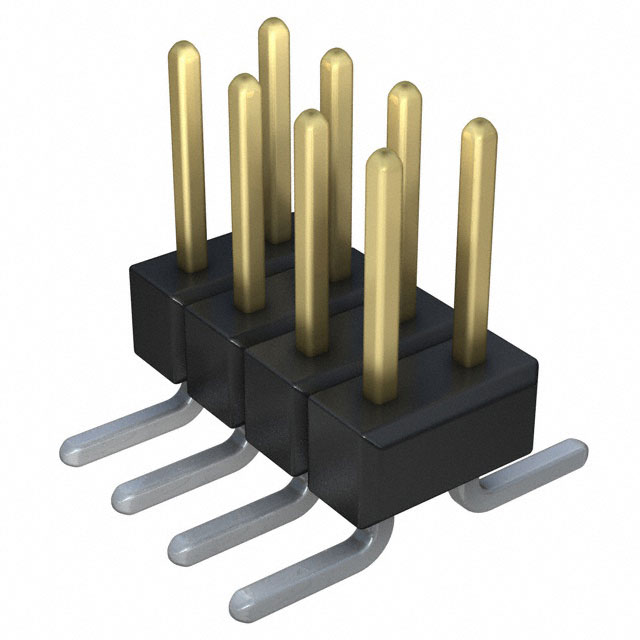

Sullins Connector Solutions GZC08DABN-M30		3 A	Header	0.23 in		Nylon 9T Polyamide (PA9T)	Black	0.1 in	2.54 mm	125 °C	-65 ░C	Board to Board Cable	2.54 µm	100 µin	Square	Surface Mount	0.1 in	2.54 mm	Solder	10 çin	0.25 çm	Phosphor Bronze	Tin-Lead	All	2	UL94 V-0	Male Pin	Unshrouded	Push-Pull	Gold	600 V	5.84 mm	16	2.54 mm	0.1 in
