DTC043TEB Series

NPN, SOT-323FL, R1≠R2 Leak Absorption Type Digital Transistor (Bias Resistor Built-in Transistor)

Catalog

NPN, SOT-323FL, R1≠R2 Leak Absorption Type Digital Transistor (Bias Resistor Built-in Transistor)

Part	Vce Saturation (Max) @ Ib, Ic	Resistor - Emitter Base (R2)	Supplier Device Package	Mounting Type	Frequency - Transition	Resistor - Base (R1)	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]

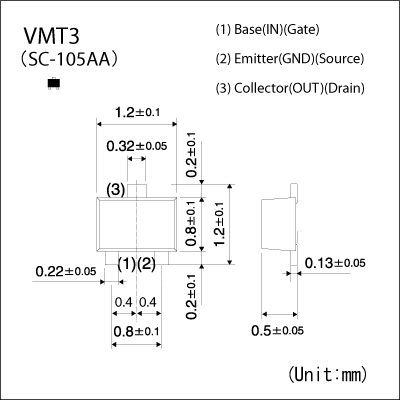

Rohm Semiconductor DTC043EMT2L	150 mV	4700 Ohms	VMT3	Surface Mount	250 MHz	4.7 kOhms	SOT-723	50 V	150 mW	NPN - Pre-Biased	20 hFE	100 mA
Rohm Semiconductor DTC043TUBTL	150 mV		UMT3F	Surface Mount	250 MHz	4.7 kOhms	SC-85	50 V	200 mW	NPN - Pre-Biased	100	100 mA	500 nA
Rohm Semiconductor DTC043ZUBTL	150 mV	47000 Ohms	UMT3F	Surface Mount	250 MHz	4.7 kOhms	SC-85	50 V	200 mW	NPN - Pre-Biased	80	100 mA
Rohm Semiconductor DTC043TEBTL	150 mV		EMT3F (SOT-416FL)	Surface Mount	250 MHz	4.7 kOhms	SC-89 SOT-490	50 V	150 mW	NPN - Pre-Biased	100	100 mA	500 nA
Rohm Semiconductor DTC043ZEBTL	150 mV	47000 Ohms	EMT3F (SOT-416FL)	Surface Mount	250 MHz	4.7 kOhms	SC-89 SOT-490	50 V	150 mW	NPN - Pre-Biased	80	100 mA
Rohm Semiconductor DTC043ZMT2L	150 mV	47000 Ohms	VMT3	Surface Mount	250 MHz	4.7 kOhms	SOT-723	50 V	150 mW	NPN - Pre-Biased	80	100 mA	500 nA

NPN, SOT-323FL, R1≠R2 Leak Absorption Type Digital Transistor (Bias Resistor Built-in Transistor)

These are the standard products of "digital transistors" which ROHM invented and marketed first in the world.
