GT VJLPL1.13 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

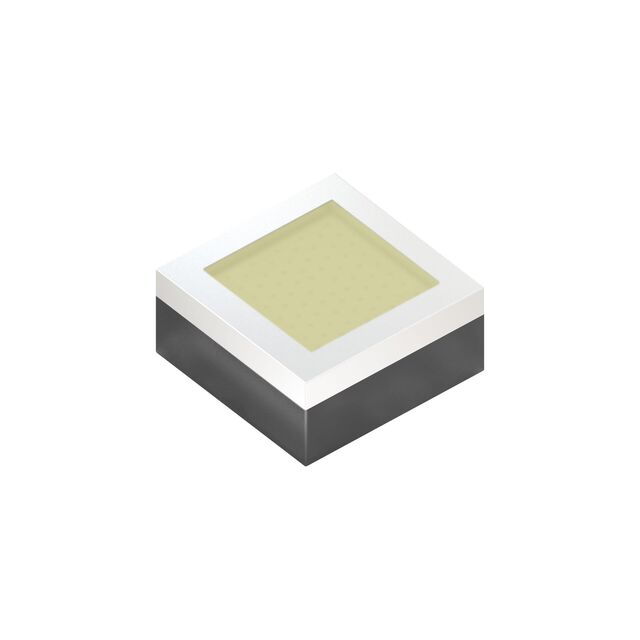

LED OSLON PURE 1414 GREEN 525NM
| Part | Thermal Resistance of Package | Current - Max [Max] | Voltage - Forward (Vf) (Typ) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Luminous Flux @ Current/Temperature | Current - Test | Package / Case | Package / Case | Wavelength [Min] | Wavelength [Max] | Wavelength | Lumens/Watt @ Current - Test | Color | Mounting Type | Temperature - Test | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 8.5 °C/W | 1 A | 2.67 V | 0.95 mm | 0.037 in | 121 lm | 350 mA | 1313 | 0505 | 520 nm | 530 nm | 525 nm | 129 lm/W | Green | Surface Mount | 25 °C | 0.055 " | 1.4 mm | 0.055 in | 1.4 mm | 120 ° |
