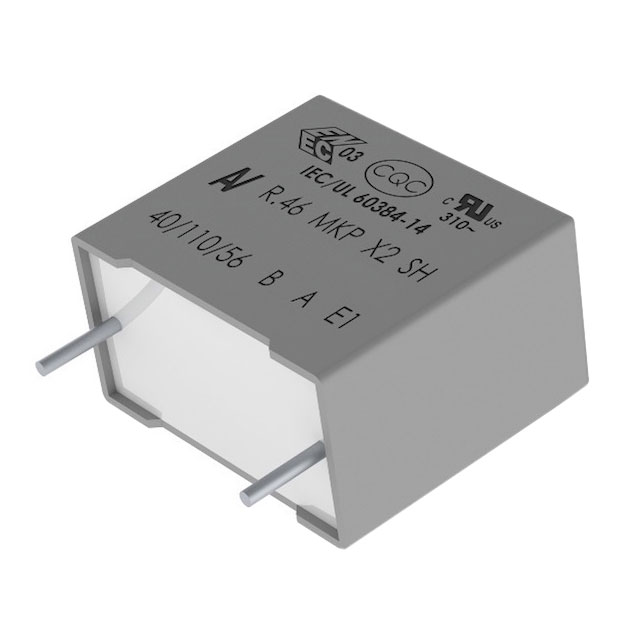

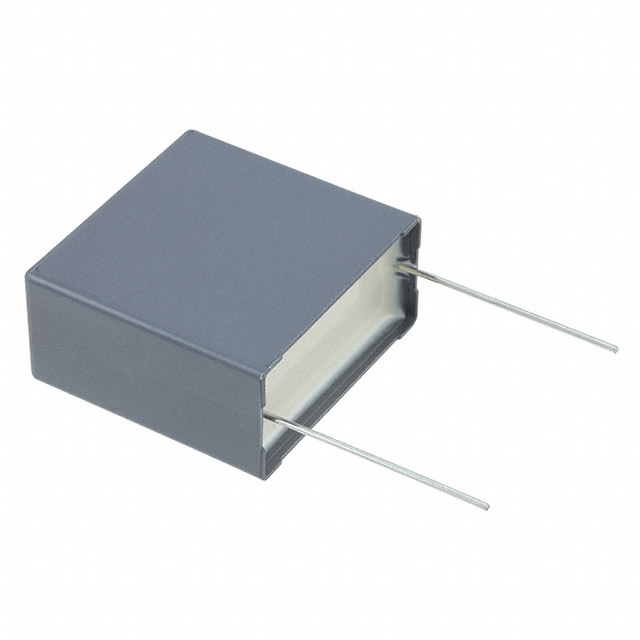

R46KW Series

Manufacturer: KEMET

Catalog

CAP FILM 10UF 20% 560VDC RAD

Part	Voltage Rating - DC	Lead Spacing	Lead Spacing	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Package / Case	Tolerance	Applications	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ratings	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R46KW510000M1M	560 V	37.5 mm	1.476 in	10 µF	-40 C	110 °C	Polypropylene (PP) Metallized	Radial	20 %	EMI RFI Suppression	275 V	1.776 in	45.1 mm	Through Hole	1.634 in	41.5 mm	30 mm	1.181 in	X2	PC Pins
KEMET R46KW447000M1M	560 V	37.5 mm	1.476 in	4.7 µF	-40 C	110 °C	Polypropylene (PP) Metallized	Radial	20 %	EMI RFI Suppression	275 V			Through Hole	1.634 in	41.5 mm	19 mm	0.748 in	X2	PC Pins	1.264 "	32.1 mm
KEMET R46KW510050P0M	560 V	37.5 mm	1.476 in	10 µF	-40 C	110 °C	Polypropylene (PP) Metallized	Radial	20 %	EMI RFI Suppression	275 V			Through Hole	1.634 in	41.5 mm	20 mm	0.787 in	X2	PC Pins	1.579 in	40.1 mm
