SM1206 Series

Catalog

SURFACE-MOUNT/AXIAL LED LAMP,ORANGE-RED,WATER CLEAR,LED-8D

Part	Wavelength - Dominant	Wavelength - Peak	Viewing Angle	Lens Style	Lens Color	Supplier Device Package	Height (Max) [Max] [z]	Current - Test	Millicandela Rating	Lens Transparency	Configuration	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Lens Size [diameter]	Package / Case	Color	Voltage - Forward (Vf) (Typ)	Height (Max) [z]	Lens Size [y]	Lens Size [x]	Wavelength [Max]	Wavelength [Min]	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Orientation
Bivar Inc. SM1206HC-IL	640 nm 643 nm	655 nm 660 nm	30 ° 140 °	Round with Flat Top	Colorless	1206	1.4 mm	20 mA	45 mcd	Clear	Standard	Surface Mount	1.6 mm	3.2 mm	1.1 mm	1206 (3216 Metric)	Red	2 V
Bivar Inc. SM1206UOC	625 nm	630 nm	140 °	Rectangle with Flat Top	Colorless	1206		20 mA	80 mcd	Clear	Standard	Surface Mount	1.6 mm	3.2 mm		1206 (3216 Metric)		2.1 V	1.1 mm	1.6 mm	2 mm
Bivar Inc. SM1206RC-IL	645 nm	700 nm	30 °	Round with Flat Top	Colorless	1206	1.4 mm	20 mA	2.1 mcd	Clear	Standard	Surface Mount	1.6 mm	3.2 mm	1.1 mm	1206 (3216 Metric)	Red	2 V

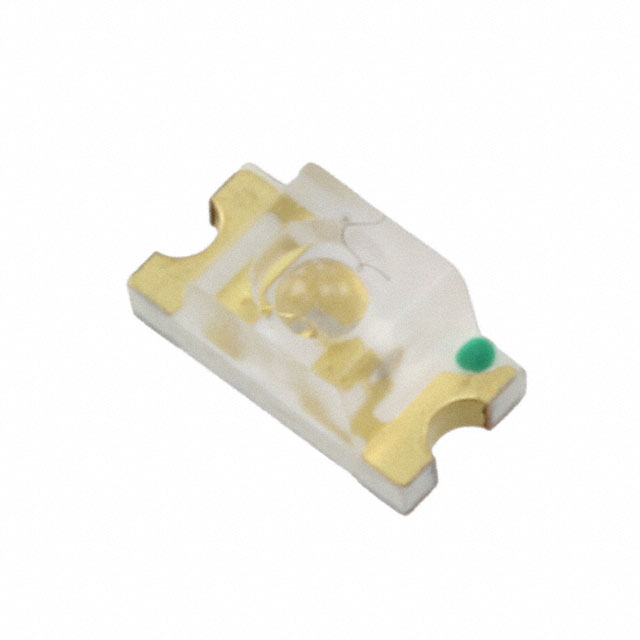

Bivar Inc. SM1206NBWC-IL	470 nm	468 nm	30 °	Round with Flat Top	Colorless	1206	1.4 mm	20 mA	950 mcd	Clear	Standard	Surface Mount	1.6 mm	3.2 mm	1.1 mm	1206 (3216 Metric)	Blue	3.1 V
Bivar Inc. SM1206UV-400-IL			30 °									Surface Mount				1206 (3216 Metric)		3.4 V				405 nm	400 nm	25 mA	-30 °C	80 °C	Ultraviolet (UV)	Top View

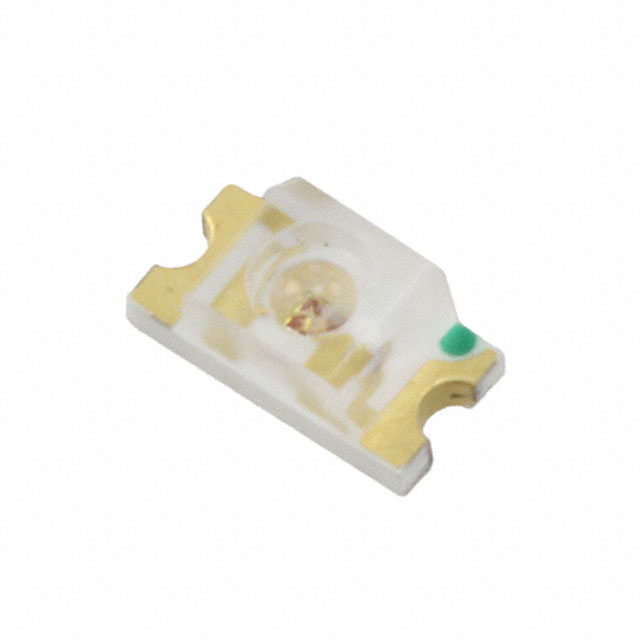

Bivar Inc. SM1206NAC-IL	605 nm	610 nm	30 °	Round with Flat Top	Colorless	1206	1.4 mm	20 mA	1450 mcd	Clear	Standard	Surface Mount	1.6 mm	3.2 mm	1.1 mm	1206 (3216 Metric)	Amber	2.1 V
Bivar Inc. SM1206UBWC	470 nm	468 nm	140 °	Rectangle with Flat Top	Colorless	1206		20 mA	115 mcd	Clear	Standard	Surface Mount	1.6 mm	3.2 mm		1206 (3216 Metric)	Blue	3.3 V	1.1 mm	1.6 mm	2 mm
Bivar Inc. SM1206YC	585 nm	583 nm	140 °	Rectangle with Flat Top	Colorless	1206		20 mA	6 mcd	Clear	Standard	Surface Mount	1.6 mm	3.2 mm		1206 (3216 Metric)	Yellow	2 V	1.1 mm	1.6 mm	2 mm

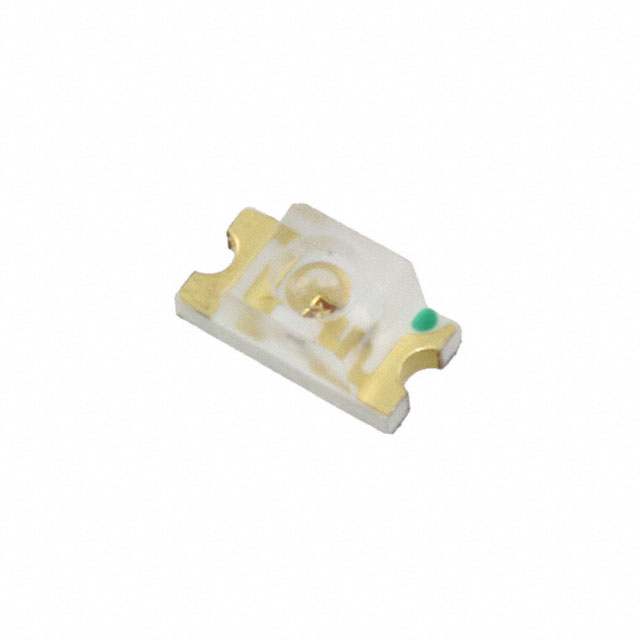

Bivar Inc. SM1206NHC-IL	625 nm	630 nm	30 °	Round with Flat Top	Colorless	1206	1.4 mm	20 mA	1250 mcd	Clear	Standard	Surface Mount	1.6 mm	3.2 mm	1.1 mm	1206 (3216 Metric)	Red	2.1 V
Bivar Inc. SM1206SRC	640 nm	660 nm	140 °	Rectangle with Flat Top	Colorless	1206		20 mA	28 mcd	Clear	Standard	Surface Mount	1.6 mm	3.2 mm		1206 (3216 Metric)	Red	1.85 V	1.1 mm	1.6 mm	2 mm
