963357 Series

Catalog

CONN HEADER VERT 22POS 5MM

Part	Contact Length - Post [x]	Contact Length - Post	Features	Insulation Height	Insulation Height	Termination	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Style	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Type	Contact Material	Insulation Material	Connector Type	Number of Positions Loaded	Insulation Color	Mounting Type	Number of Rows [custom]	Contact Shape

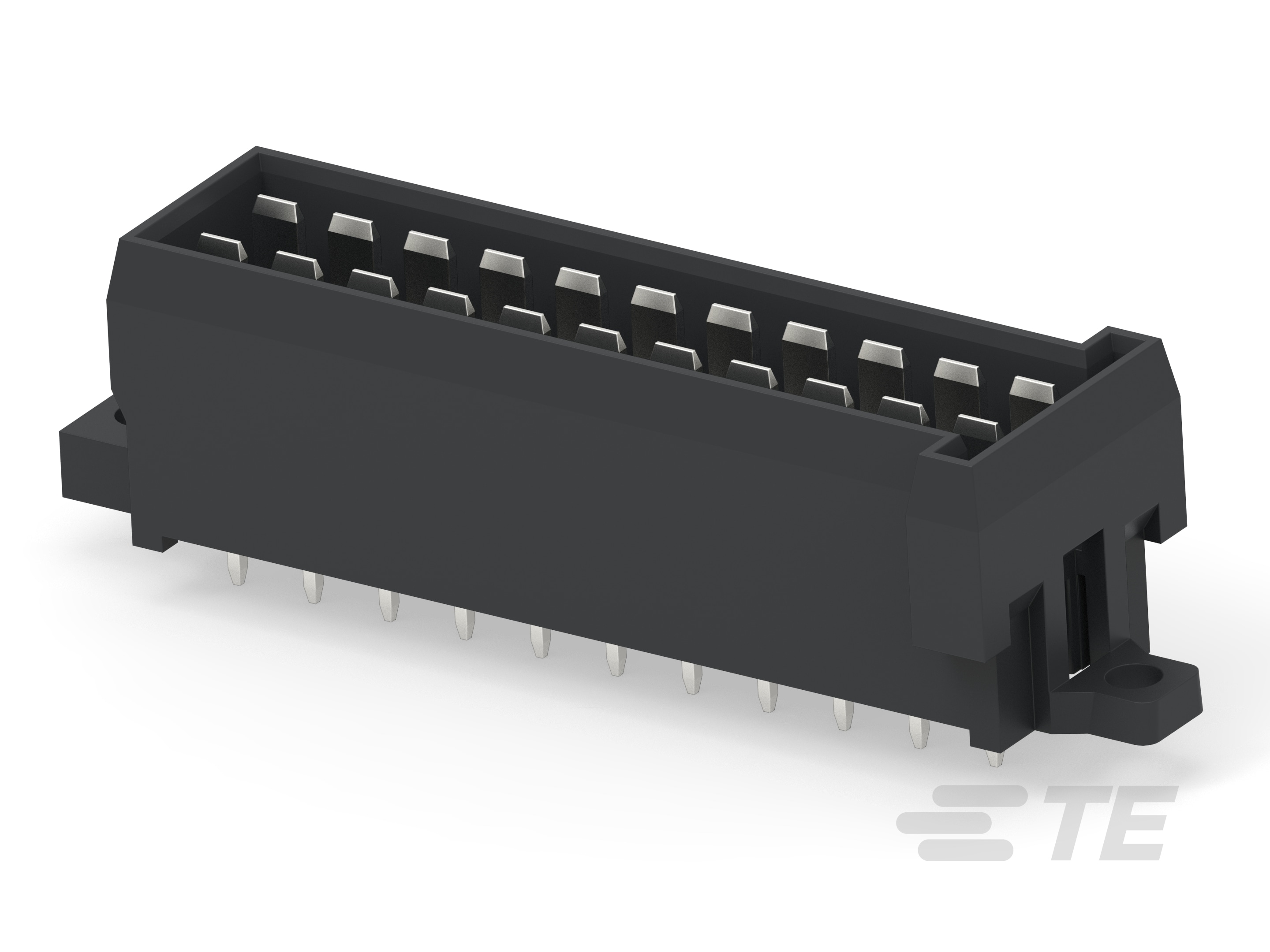

TE Connectivity AMP Connectors 963357-1	0.134 "	3.4 mm	Board Guide Mounting Flange	0.72 in	18.3 mm	Solder	Silver	5.51 mm	0.217 in	Board to Cable/Wire	22	0.197 "	5 mm	9.3 mm	0.366 in	Tab	Copper Zinc	Polybutylene Terephthalate (PBT) Glass Filled	Plug	All	Black	Through Hole	2	Rectangular

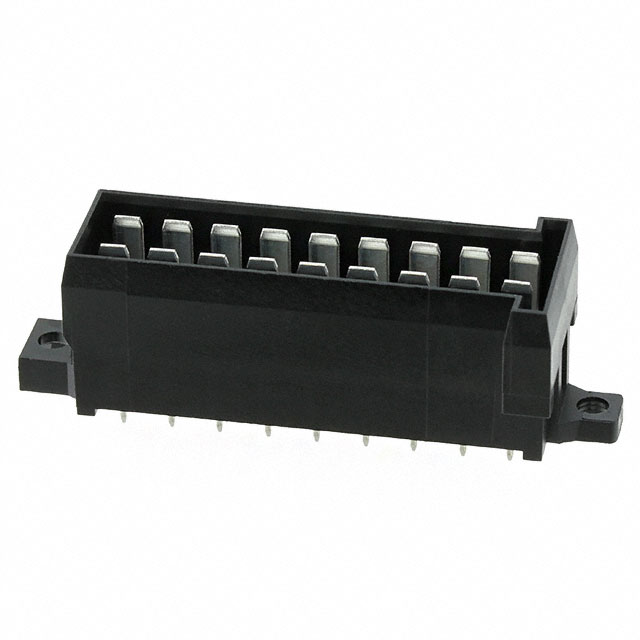

TE Connectivity AMP Connectors 963357-2	0.134 "	3.4 mm	Board Guide Mounting Flange	0.72 in	18.3 mm	Solder	Silver	5.51 mm	0.217 in	Board to Cable/Wire	18	0.197 "	5 mm	9.3 mm	0.366 in	Tab	Copper Zinc	Polybutylene Terephthalate (PBT) Glass Filled	Plug	All	Black	Through Hole	2	Rectangular

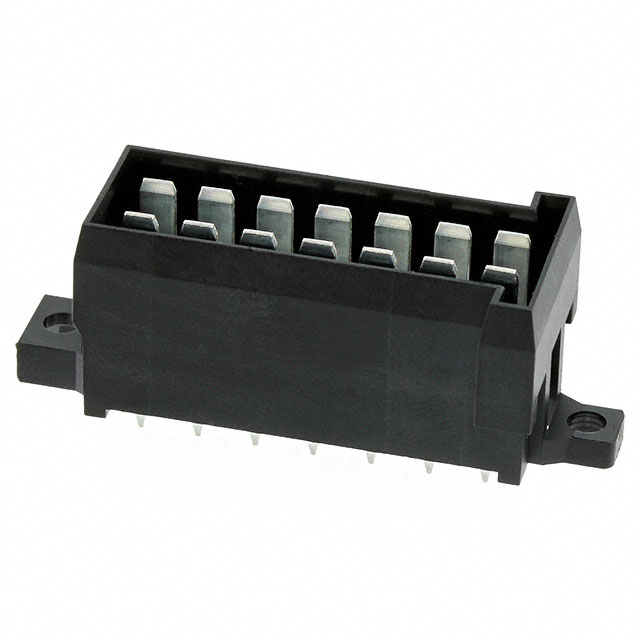

TE Connectivity AMP Connectors 963357-3	0.134 "	3.4 mm	Board Guide Mounting Flange	0.72 in	18.3 mm	Solder	Silver	5.51 mm	0.217 in	Board to Cable/Wire	14	0.197 "	5 mm	9.3 mm	0.366 in	Tab	Copper Zinc	Polybutylene Terephthalate (PBT) Glass Filled	Plug	All	Black	Through Hole	2	Rectangular

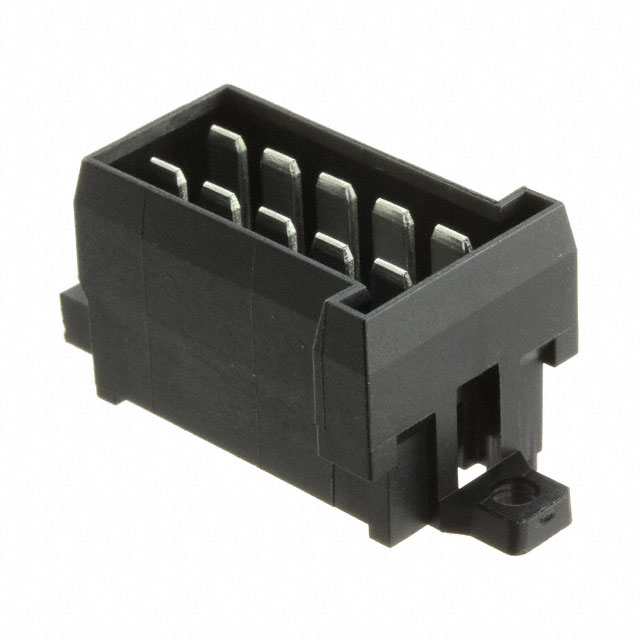

TE Connectivity AMP Connectors 963357-4	0.134 "	3.4 mm	Board Guide Mounting Flange	0.72 in	18.3 mm	Solder	Silver	5.51 mm	0.217 in	Board to Cable/Wire	10	0.197 "	5 mm	9.3 mm	0.366 in	Tab	Copper Zinc	Polybutylene Terephthalate (PBT) Glass Filled	Plug	All	Black	Through Hole	2	Rectangular
