745186 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

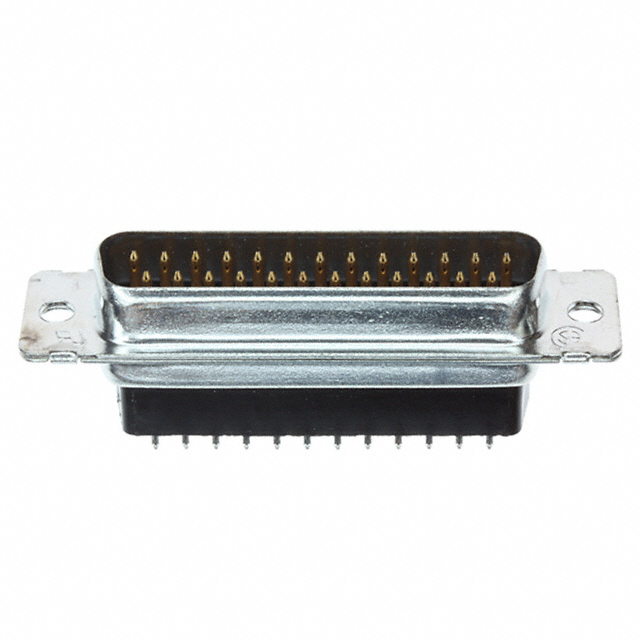

25 PLUG SP/MS STD ROHS COMPLIANT: NO
| Part | Contact Material | Voltage Rating | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Termination | Number of Rows [custom] | Contact Type | Contact Finish Thickness | Connector Type | Material Flammability Rating | Connector Style | Flange Feature | Current Rating (Amps) | Mounting Type | Contact Finish | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | 125 VDC | Black | Thermoplastic | -55 C | 105 ░C | B DB | 3 | Solder | 2 | Signal | Flash | Plug Male Pins | UL94 V-0 | D-Sub | Housing/Shell (Unthreaded) | 6 A | Through Hole | Gold | 25 |
