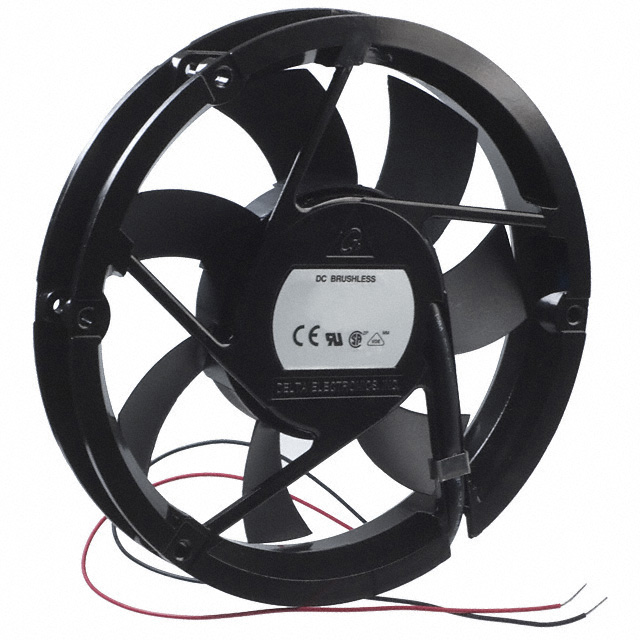

AFB1712 Series
Manufacturer: Delta Electronics
Beta
⌘K
FAN AXIAL 172X25.4MM 12VDC WIRE
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Lifetime @ Temp. | Material - Blade | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Static Pressure | Static Pressure | Approval Agency | Size / Dimension [diameter] | Size / Dimension | Weight [custom] | Weight [custom] | Power (Watts) | Noise | Voltage - Rated | Bearing Type | Fan Type | RPM | Air Flow | Air Flow | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 0.98 A | 6 VDC | 14 V | Aluminum | 80000 Hrs | Plastic | 70 °C | -10 °C | 2 Wire Leads | 116.3 Pa | 0.467 in H2O | CE CSA UL VDE | 172 mm | Round | 430.01 g | 0.948 lb | 11.8 W | 52 dB | 12 VDC | Ball | Tubeaxial | 3000 RPM | 202.5 CFM | 5.67 m³/min | 25.4 mm |
