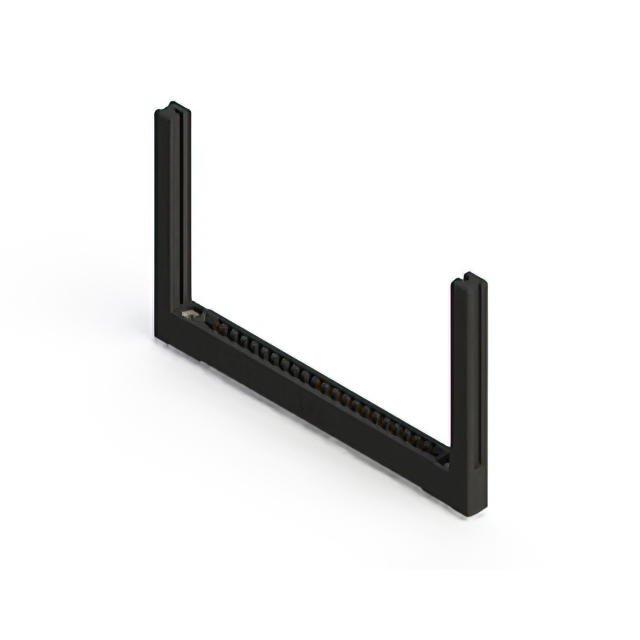

357-022 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE SGL FMALE 22POS 0.156
...
| Part | Card Type | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Read Out | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Contact Material | Material - Insulation | Number of Rows | Termination Rows | Color | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Features | Flange Feature | Contact Type | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Solder | Through Hole Right Angle | 10 Áin | 0.25 Ám | 22 | Copper Alloy | Polyester Thermoplastic | 1 | 1 | Black | 22 positions | -40 °C | 105 ░C | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | Gold | ||
 EDAC Inc. | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Wire Wrap | Through Hole | 22 | Copper Alloy | Polyester Thermoplastic | 1 | 1 | Black | 22 positions | -40 °C | 105 ░C | Semi Bellows | Tin | ||||||
 EDAC Inc. | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | Solder | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 11 | Copper Alloy | Polyester Thermoplastic | 2 | 2 | Black | 22 positions | -40 °C | 105 ░C | Card Extender | Flush Mount M3 Threaded Insert Top Opening | Semi Bellows | Gold | ||
 EDAC Inc. | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Solder | Through Hole Right Angle | 10 Áin | 0.25 Ám | 22 | Copper Alloy | Polyester Thermoplastic | 1 | 1 | Black | 22 positions | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | Semi Bellows | Gold | 3.25 mm | 0.128 " | |
 EDAC Inc. | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Solder | Through Hole | 10 Áin | 0.25 Ám | 22 | Copper Alloy | Polyester Thermoplastic | 1 | 1 | Black | 22 positions | -40 °C | 105 ░C | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | Gold | ||
 EDAC Inc. | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Solder | Through Hole Right Angle | 22 | Copper Alloy | Polyester Thermoplastic | 1 | 1 | Black | 22 positions | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Semi Bellows | Tin | 3.96 mm | 0.156 in | |||
 EDAC Inc. | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | Solder | Through Hole | 10 Áin | 0.25 Ám | 11 | Copper Alloy | Polyester Thermoplastic | 2 | 2 | Black | 22 positions | -40 °C | 105 ░C | Semi Bellows | Gold | ||||
 EDAC Inc. | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Solder | Through Hole | 10 Áin | 0.25 Ám | 22 | Copper Alloy | Polyester Thermoplastic | 1 | 1 | Black | 22 positions | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | Semi Bellows | Gold | 3.25 mm | 0.128 " | |
 EDAC Inc. | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Solder | Through Hole | 10 Áin | 0.25 Ám | 22 | Copper Alloy | Polyester Thermoplastic | 1 | 1 | Black | 22 positions | -40 °C | 105 ░C | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | Gold | ||
 EDAC Inc. | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | Solder | Through Hole | 10 Áin | 0.25 Ám | 11 | Copper Alloy | Polyester Thermoplastic | 2 | 2 | Black | 22 positions | -40 °C | 105 ░C | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | Gold |
