ESC60 Series
Manufacturer: Sullins Connector Solutions
Catalog

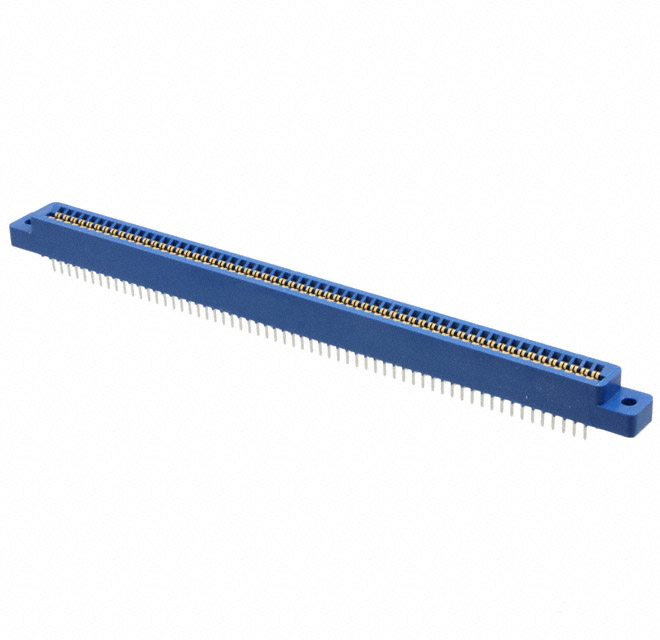

CONN EDGE DUAL FML 120POS 0.100
| Part | Termination | Contact Finish Thickness | Contact Finish Thickness | Card Type | Mounting Type | Number of Positions | Number of Rows | Card Thickness | Card Thickness | Material - Insulation | Number of Positions/Bay/Row [custom] | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Material | Color | Gender | Pitch [x] | Pitch [x] | Read Out | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Solder | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Through Hole | 120 | 2 | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 60 | Gold | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Phosphor Bronze | Blue | Female | 2.54 mm | 0.1 in | Dual | Full Bellows | 125 °C | -65 ░C | |
Sullins Connector Solutions | Solder | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Through Hole | 120 | 2 | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 60 | Gold | 4-40 Threaded Insert Top Mount Opening | Phosphor Bronze | Blue | Female | 2.54 mm | 0.1 in | Dual | Full Bellows | 125 °C | -65 ░C | |||
Sullins Connector Solutions | Solder | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Board Edge Straddle Mount | 120 | 2 | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 60 | Gold | 4-40 Threaded Insert Top Mount Opening | Phosphor Bronze | Blue | Female | 2.54 mm | 0.1 in | Dual | Full Bellows | 125 °C | -65 ░C | Card Extender | ||
Sullins Connector Solutions | Solder | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Through Hole | 120 | 2 | 0.031 in | 0.79 mm | Polybutylene Terephthalate (PBT) | 60 | Gold | 0.125 in | 3.18 mm | Side Mount Opening Unthreaded | Phosphor Bronze | Blue | Female | 2.54 mm | 0.1 in | Dual | Full Bellows | 125 °C | -65 ░C | |
Sullins Connector Solutions | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 120 | 2 | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 60 | Gold | 4-40 Threaded Insert Top Mount Opening | Phosphor Bronze | Blue | Female | 2.54 mm | 0.1 in | Dual | Full Bellows | 125 °C | -65 ░C | ||||
Sullins Connector Solutions | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 120 | 2 | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 60 | Gold | 0.116 in | 2.95 mm | Floating Bobbin Top Mount Opening | Phosphor Bronze | Blue | Female | 2.54 mm | 0.1 in | Dual | Full Bellows | 125 °C | -65 ░C | ||
Sullins Connector Solutions | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Board Edge Straddle Mount | 120 | 2 | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 60 | Gold | 0.125 in | 3.18 mm | Side Mount Opening Unthreaded | Phosphor Bronze | Blue | Female | 2.54 mm | 0.1 in | Dual | Full Bellows | 125 °C | -65 ░C | Card Extender |
Sullins Connector Solutions | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 120 | 2 | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 60 | Gold | 0.125 in | 3.18 mm | Side Mount Opening Unthreaded | Phosphor Bronze | Blue | Female | 2.54 mm | 0.1 in | Dual | Full Bellows | 125 °C | -65 ░C | ||
Sullins Connector Solutions | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 120 | 2 | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 60 | Gold | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Phosphor Bronze | Blue | Female | 2.54 mm | 0.1 in | Dual | Full Bellows | 125 °C | -65 ░C | ||
Sullins Connector Solutions | Solder | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Through Hole | 120 | 2 | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 60 | Gold | 0.116 in | 2.95 mm | Floating Bobbin Top Mount Opening | Phosphor Bronze | Blue | Female | 2.54 mm | 0.1 in | Dual | Full Bellows | 125 °C | -65 ░C |
