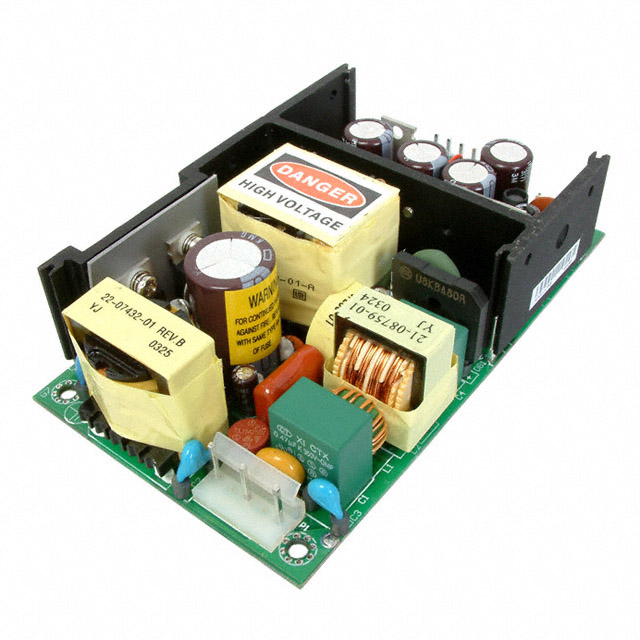

VSBU-120 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 48V 120W
| Part | Mounting Type | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Type | Applications | Power (Watts) | Standard Number | Minimum Load Required | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Current - Output 1 | Features | Number of Outputs | Voltage - Output 2 | Current - Output 2 | Voltage - Output 3 | Current - Output 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Chassis Mount | 4.242 kV | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 260 VAC | 90 VAC | CB Scheme EN IEC SIQ TUV UL | Open Frame | ITE (Commercial) | 120 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 80 % | 70 °C | 0 °C | 48 V | 2.5 A | PFC Universal Input | 1 | |||||
CUI Inc. | Chassis Mount | 4.242 kV | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 260 VAC | 90 VAC | CB Scheme EN IEC SIQ TUV UL | Open Frame | ITE (Commercial) | 120 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 80 % | 70 °C | 0 °C | 12 V | 10 A | PFC Universal Input | 1 | |||||
CUI Inc. | Chassis Mount | 4.242 kV | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 260 VAC | 90 VAC | CB Scheme EN IEC SIQ TUV UL | Open Frame | ITE (Commercial) | 120 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 80 % | 70 °C | 0 °C | 5 V | 15 A | PFC Universal Input | 2 | 12 V | 6 A | |||
CUI Inc. | Chassis Mount | 4.242 kV | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 260 VAC | 90 VAC | CB Scheme EN IEC SIQ TUV UL | Open Frame | ITE (Commercial) | 120 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 80 % | 70 °C | 0 °C | 3.3 V | 15 A | PFC Universal Input | 3 | 5 V | 6 A | 12 V | ||
CUI Inc. | Chassis Mount | 4.242 kV | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 260 VAC | 90 VAC | CB Scheme EN IEC SIQ TUV UL | Open Frame | ITE (Commercial) | 120 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 80 % | 70 °C | 0 °C | 30 V | 4 A | PFC Universal Input | 1 | |||||
CUI Inc. | Chassis Mount | 4.242 kV | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 260 VAC | 90 VAC | CB Scheme EN IEC SIQ TUV UL | Open Frame | ITE (Commercial) | 120 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 80 % | 70 °C | 0 °C | 5 V | 15 A | PFC Universal Input | 3 | 10 V | 6 A | |||
CUI Inc. | Chassis Mount | 4.242 kV | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 260 VAC | 90 VAC | CB Scheme EN IEC SIQ TUV UL | Open Frame | ITE (Commercial) | 120 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 80 % | 70 °C | 0 °C | 3.3 V | 15 A | PFC Universal Input | 3 | 5 V | 6 A | -12 V | ||
CUI Inc. | Chassis Mount | 4.242 kV | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 260 VAC | 90 VAC | CB Scheme EN IEC SIQ TUV UL | Open Frame | ITE (Commercial) | 120 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 80 % | 70 °C | 0 °C | 3.3 V | 15 A | PFC Universal Input | 3 | 12 V | 6 A | -12 V | 0.8 A | |
CUI Inc. | Chassis Mount | 4.242 kV | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 260 VAC | 90 VAC | CB Scheme EN IEC SIQ TUV UL | Open Frame | ITE (Commercial) | 120 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 80 % | 70 °C | 0 °C | 5 V | 15 A | PFC Universal Input | 3 | 12 V | 6 A | -5 V | 0.8 A | |
CUI Inc. | Chassis Mount | 4.242 kV | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 260 VAC | 90 VAC | CB Scheme EN IEC SIQ TUV UL | Open Frame | ITE (Commercial) | 120 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 80 % | 70 °C | 0 °C | 24 V | 5 A | PFC Universal Input | 1 |
