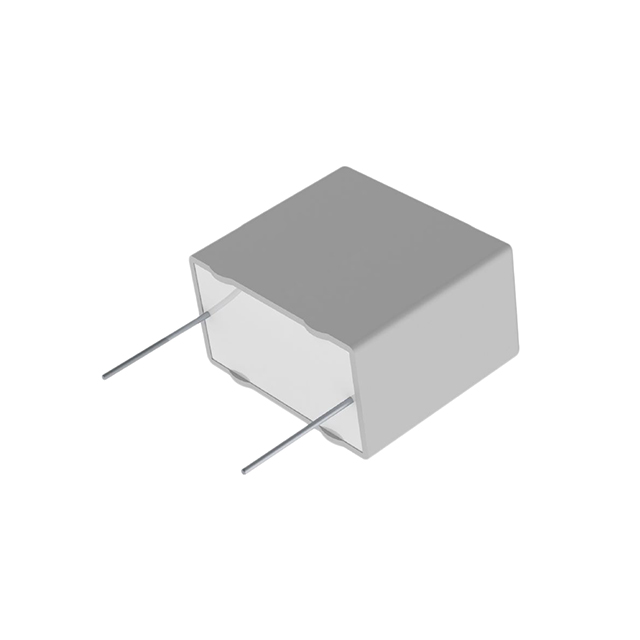

SMR27.5 Series

Manufacturer: KEMET

Catalog

CAP FILM 22UF 20% 50VDC RADIAL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Dielectric Material	Voltage Rating - DC	Mounting Type	Tolerance	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Capacitance	Features	Lead Spacing	Lead Spacing	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
KEMET SMR27.5226M50F13L4TRAY	-55 C	150 °C	Radial	Polyphenylene Sulfide (PPS) Metallized	50 VDC	Through Hole	20 %	PC Pins	24.5 mm	0.965 in	General Purpose	22 µF	High Temperature	27.5 mm	1.083 in	30 V	1.24 in	14.5 mm	31.5 mm	0.571 "
KEMET SMR27.5226J50F13L4TRAY	-55 C	150 °C	Radial	Polyphenylene Sulfide (PPS) Metallized	50 VDC	Through Hole	5 %	PC Pins	24.5 mm	0.965 in	General Purpose	22 µF	High Temperature	27.5 mm	1.083 in	30 V	1.24 in	14.5 mm	31.5 mm	0.571 "
KEMET SMR27.5226K50F13L4TRAY	-55 C	150 °C	Radial	Polyphenylene Sulfide (PPS) Metallized	50 VDC	Through Hole	10 %	PC Pins	24.5 mm	0.965 in	General Purpose	22 µF	High Temperature	27.5 mm	1.083 in	30 V	1.24 in	14.5 mm	31.5 mm	0.571 "
