391-038 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 38POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Number of Rows [custom]	Number of Positions	Gender	Contact Type	Pitch	Pitch	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Number of Positions/Bay/Row	Contact Finish	Card Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Termination	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Rows	Features
EDAC Inc. 391-038-522-202	2	Polyester Thermoplastic	Through Hole	2	38	Female	Semi Bellows	0.1 "	2.54 mm	Black	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Dual	19	Gold	Non Specified - Dual Edge	Copper Alloy	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C

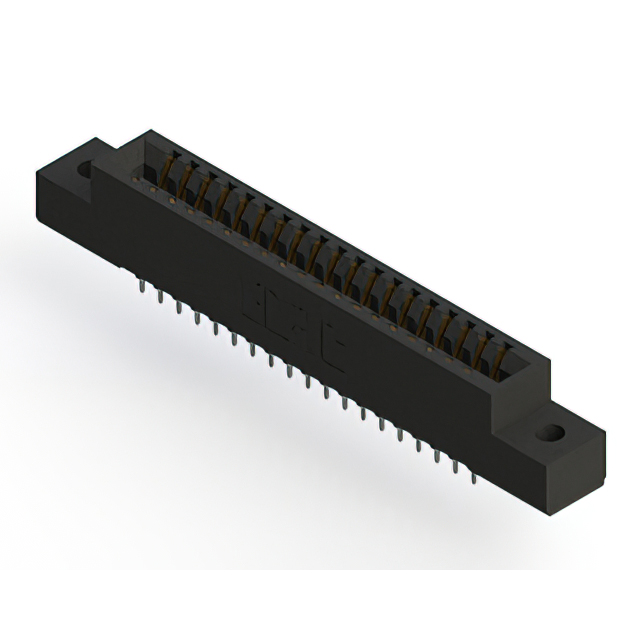

EDAC Inc. 391-038-520-202	2	Polyester Thermoplastic	Through Hole	2	38	Female	Semi Bellows	0.1 "	2.54 mm	Black	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Dual	19	Gold	Non Specified - Dual Edge	Copper Alloy	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C

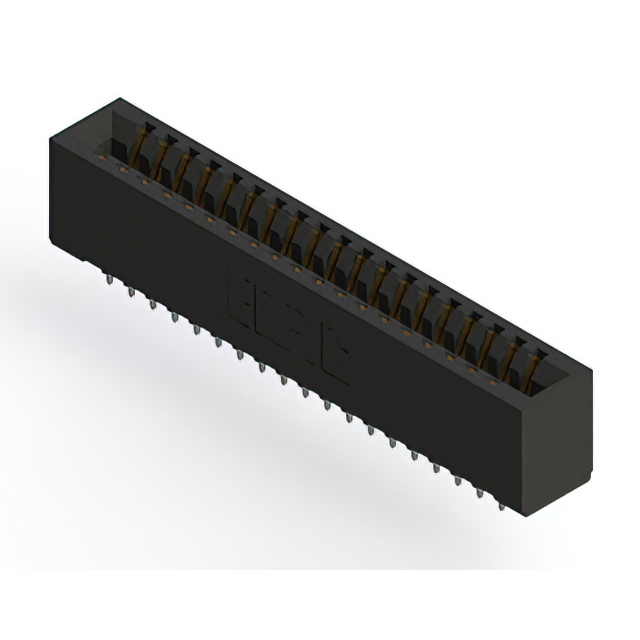

EDAC Inc. 391-038-524-201	2	Polyester Thermoplastic	Through Hole	2	38	Female	Semi Bellows	0.1 "	2.54 mm	Black				Dual	19	Gold	Non Specified - Dual Edge	Copper Alloy	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C

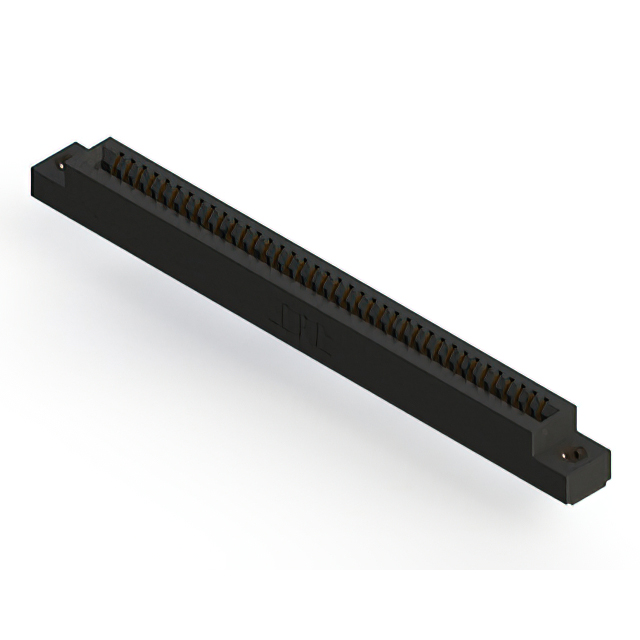

EDAC Inc. 391-038-520-108		Polyester Thermoplastic	Through Hole		38	Female	Semi Bellows	0.1 "	2.54 mm	Black	4-40 Flush Mount Threaded Insert Top Opening			Single		Gold	Non Specified - Single Edge	Copper Alloy	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	1	38	1

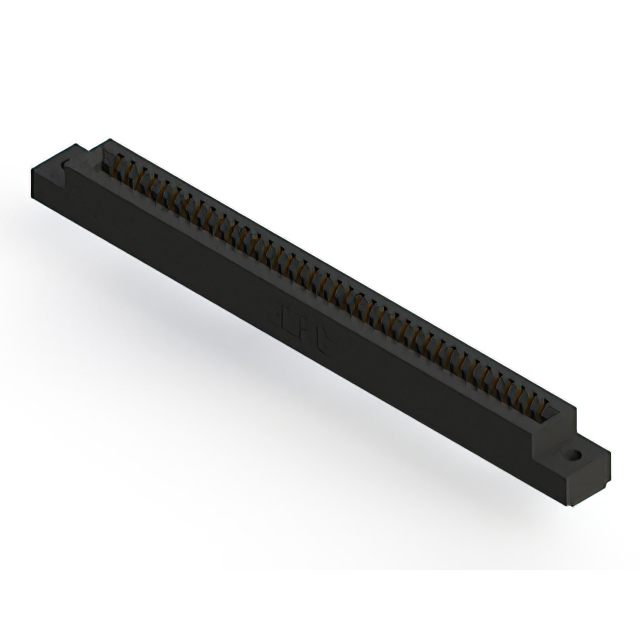

EDAC Inc. 391-038-524-102		Polyester Thermoplastic	Through Hole		38	Female	Semi Bellows	0.1 "	2.54 mm	Black	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Single		Gold	Non Specified - Single Edge	Copper Alloy	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	1	38	1

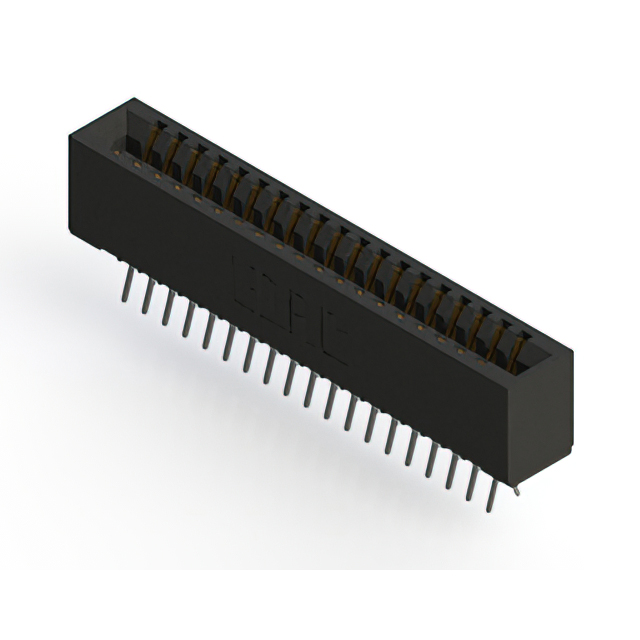

EDAC Inc. 391-038-556-201	2	Polyester Thermoplastic	Board Edge Straddle Mount	2	38	Female	Semi Bellows	0.1 "	2.54 mm	Black				Dual	19	Gold	Non Specified - Dual Edge	Copper Alloy	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C				Card Extender

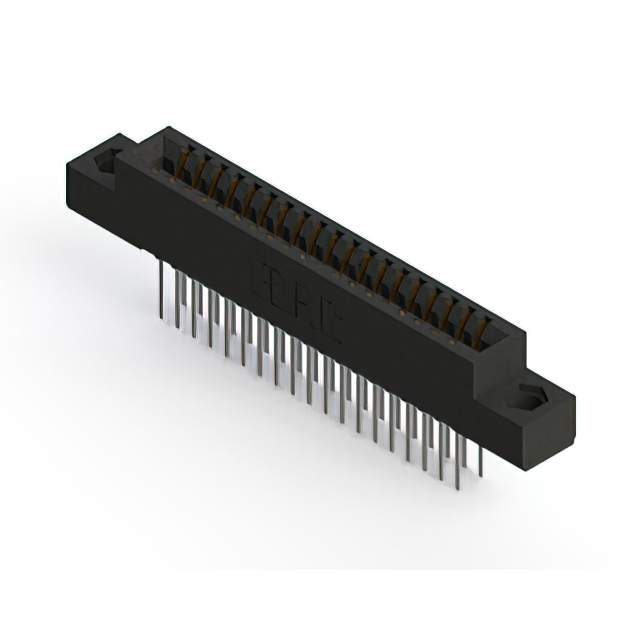

EDAC Inc. 391-038-522-204	2	Polyester Thermoplastic	Through Hole	2	38	Female	Semi Bellows	0.1 "	2.54 mm	Black	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Dual	19	Gold	Non Specified - Dual Edge	Copper Alloy	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C
EDAC Inc. 391-038-521-107		Polyester Thermoplastic	Through Hole		38	Female	Semi Bellows	0.1 "	2.54 mm	Black	Flush Mount M3 Threaded Insert Top Opening			Single		Gold	Non Specified - Single Edge	Copper Alloy	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	1	38	1

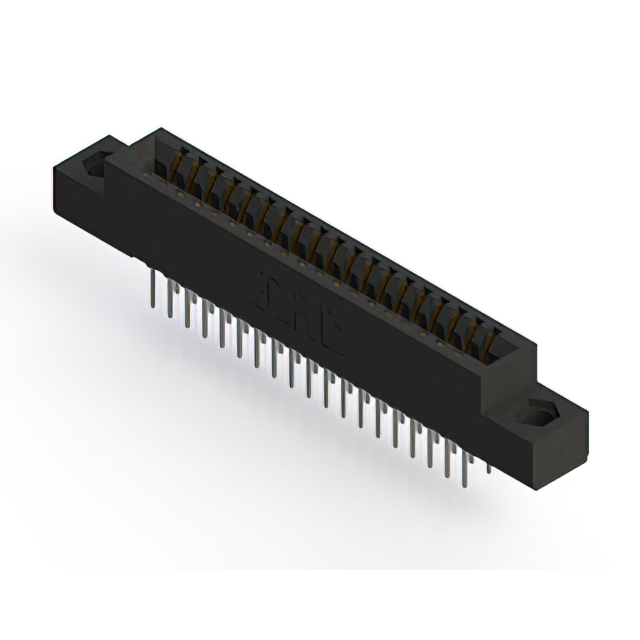

EDAC Inc. 391-038-521-204	2	Polyester Thermoplastic	Through Hole	2	38	Female	Semi Bellows	0.1 "	2.54 mm	Black	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Dual	19	Gold	Non Specified - Dual Edge	Copper Alloy	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C

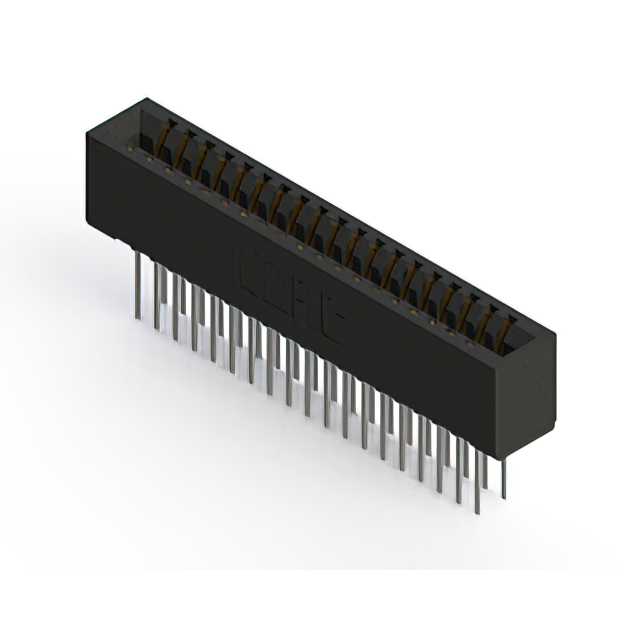

EDAC Inc. 391-038-522-201	2	Polyester Thermoplastic	Through Hole	2	38	Female	Semi Bellows	0.1 "	2.54 mm	Black				Dual	19	Gold	Non Specified - Dual Edge	Copper Alloy	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C
