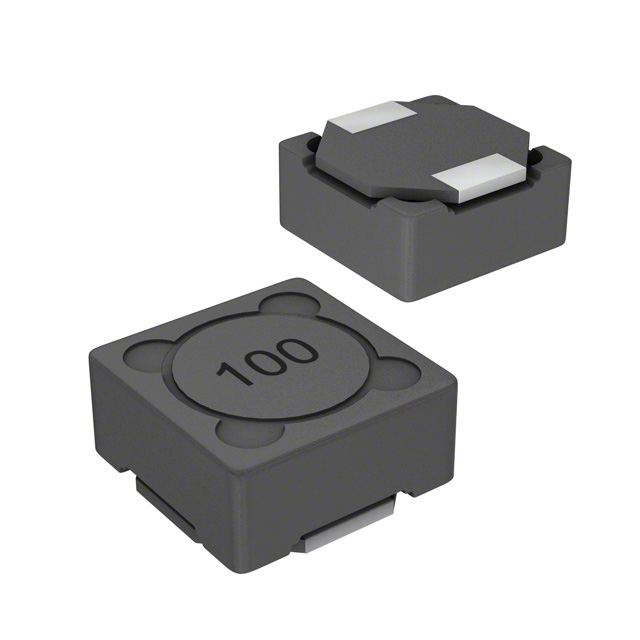

SRR1260 Series

Catalog

INDUCTOR, 2.2UH, SHIELDED, 8.2A ROHS COMPLIANT: YES

Part	Material - Core	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Q @ Freq	Inductance	Current - Saturation (Isat)	Type	Tolerance	Inductance Frequency - Test	Mounting Type	Current Rating (Amps)	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]	Tolerance [Max]	Tolerance [Min]	Q @ Freq [custom]
Bourns Inc. SRR1260-2R2Y	Ferrite	Shielded	12.5 mm	0.492 "	12.5 mm	0.492 "	6.5 mm	0.256 in	Nonstandard	125 °C	-40 C	10.5 mOhm	7.96 MHz 22	2.2 µH	8.5 A	Drum Core Wirewound	30 %	100 kHz	Surface Mount	8.2 A
Bourns Inc. SRR1260-1R5Y	Ferrite	Shielded	12.5 mm	0.492 "	12.5 mm	0.492 "	6.5 mm	0.256 in	Nonstandard	125 °C	-40 C		7.96 MHz 24	1.5 µH	9.9 A	Drum Core Wirewound	30 %	100 kHz	Surface Mount	8.8 A	9.5 mOhm	86 MHz
Bourns Inc. SRR1260-271K	Ferrite	Shielded	12.5 mm	0.492 "	12.5 mm	0.492 "	6.5 mm	0.256 in	Nonstandard	125 °C	-40 C	450 mOhm		270 µH	1.2 A	Drum Core Wirewound	10 %	100 kHz	Surface Mount	1.3 A		3.6 MHz	20	796 kHz
Bourns Inc. SRR1260-680M	Ferrite	Shielded	12.5 mm	0.492 "	12.5 mm	0.492 "	6.5 mm	0.256 in	Nonstandard	125 °C	-40 C	110 mOhm	22	68 µH	2.1 A	Drum Core Wirewound	20 %	100 kHz	Surface Mount	2.1 A		7.43 MHz
Bourns Inc. SRR1260-4R7P	Ferrite	Shielded	12.5 mm	0.492 "	12.5 mm	0.492 "	6.5 mm	0.256 in	Nonstandard	125 °C	-40 C			4.7 ÁH	7 A	Drum Core Wirewound		100 kHz	Surface Mount	6.8 A	15.5 mOhm	36.7 MHz	19		40 %	-20 %	7.96 MHz
Bourns Inc. SRR1260-331K	Ferrite	Shielded	12.5 mm	0.492 "	12.5 mm	0.492 "	6.5 mm	0.256 in	Nonstandard	125 °C	-40 C		22 796 kHz	330 µH	1.1 A	Drum Core Wirewound	10 %	100 kHz	Surface Mount	1.15 A	580 mOhm
Bourns Inc. SRR1260-8R2Y	Ferrite	Shielded	12.5 mm	0.492 "	12.5 mm	0.492 "	6.5 mm	0.256 in	Nonstandard	125 °C	-40 C		7.96 MHz 18	8.2 µH	5.8 A	Drum Core Wirewound	30 %	100 kHz	Surface Mount	5.7 A	19.5 mOhm	24 MHz
Bourns Inc. SRR1260-5R6Y	Ferrite	Shielded	12.5 mm	0.492 "	12.5 mm	0.492 "	6.5 mm	0.256 in	Nonstandard	125 °C	-40 C			5.6 µH	6.9 A	Drum Core Wirewound	30 %	100 kHz	Surface Mount	6.7 A	16.2 mOhm	33 MHz	19				7.96 MHz
Bourns Inc. SRR1260-181K	Ferrite	Shielded	12.5 mm	0.492 "	12.5 mm	0.492 "	6.5 mm	0.256 in	Nonstandard	125 °C	-40 C			180 µH	1.4 A	Drum Core Wirewound	10 %	100 kHz	Surface Mount	1.4 A		4.5 MHz	26				796 kHz
Bourns Inc. SRR1260-4R7Y	Ferrite	Shielded	12.5 mm	0.492 "	12.5 mm	0.492 "	6.5 mm	0.256 in	Nonstandard	125 °C	-40 C			4.7 ÁH	7 A	Drum Core Wirewound	30 %	100 kHz	Surface Mount	6.8 A	15.5 mOhm	36.7 MHz	19				7.96 MHz
