SMA Series

Catalog

RF CONNECTORS / COAXIAL CONNECTORS SMA STRAIGHT CABLE PLUG(M)

Part	Body Finish	Dielectric Material	Center Contact Plating	Mating Cycles	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Frequency - Max [Max]	Connector Style	Mounting Type	Number of Ports	Impedance	Fastening Type	Shield Termination	Center Contact Material	Connector Type	Housing Color	Contact Termination	Mounting Feature
Huber+Suhner, Inc. 11_SMA-R50-2-113/133_NE	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Brass	-65 ░C	165 °C	RD-316	18 GHz	RP-SMA	Free Hanging (In-Line)	1	50 Ohms	Threaded	Crimp	Beryllium Copper	Female Socket Plug	Silver	Solder

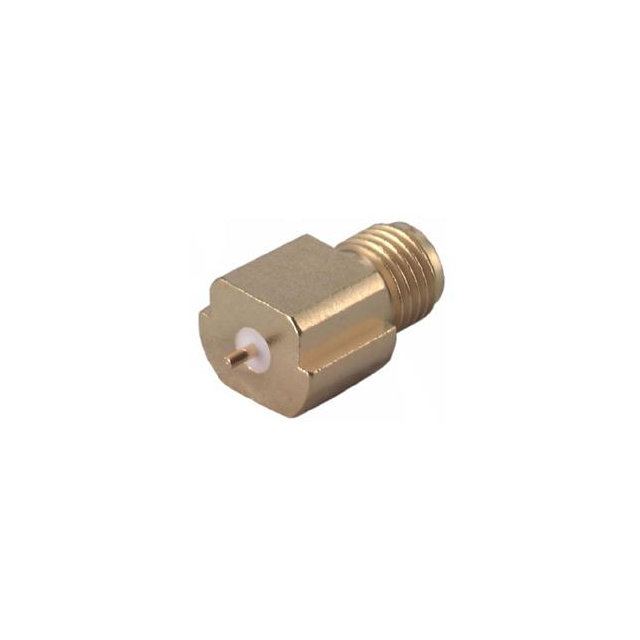

Huber+Suhner, Inc. 82_SMA-S50-0-45/111_NE	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Brass	-65 ░C	165 °C		18 GHz	SMA	Board Edge Cutout Surface Mount	1	50 Ohms	Threaded	Solder	Beryllium Copper	Female Socket Jack	Gold	Solder
Huber+Suhner, Inc. 23_SMA-50-0-167/199_NE									18 GHz	SMA	Panel Mount	1	50 Ohms	Threaded	Solder	Beryllium Copper	Female Socket Jack	Silver	Solder	Flange
Huber+Suhner, Inc. 23_SMA-50-0-168/199_NE									18 GHz	SMA	Panel Mount	1	50 Ohms	Threaded	Solder	Beryllium Copper	Female Socket Jack	Silver	Solder	Flange
Huber+Suhner, Inc. 24_SMA-50-2-14/111_NE	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Beryllium Copper	-65 ░C	165 °C	188 316 RG-174	18 GHz	SMA	Panel Mount	1	50 Ohms	Threaded	Crimp	Beryllium Copper	Female Socket Jack	Gold	Solder	Bulkhead - Front Side Nut
Huber+Suhner, Inc. 11_SMA-50-3-55/199_NE								RG-58	18 GHz	SMA	Free Hanging (In-Line)	1	50 Ohms	Threaded	Crimp	Beryllium Copper	Plug Male Pin	Silver	Solder
Huber+Suhner, Inc. 21_SMA-50-2-15/111_NH	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Beryllium Copper	-65 ░C	165 °C	RG-405 (.086 Semi Rigid)	18 GHz	SMA	Free Hanging (In-Line)	1	50 Ohms	Threaded	Solder	Beryllium Copper	Female Socket Jack	Gold	Solder
Huber+Suhner, Inc. 23_SMA-50-0-41/133_NH	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Brass	-65 ░C	125 °C		18 GHz	SMA	Panel Mount	1	50 Ohms	Threaded	Solder	Beryllium Copper	Female Socket Jack	Silver	Solder Cup	Flange

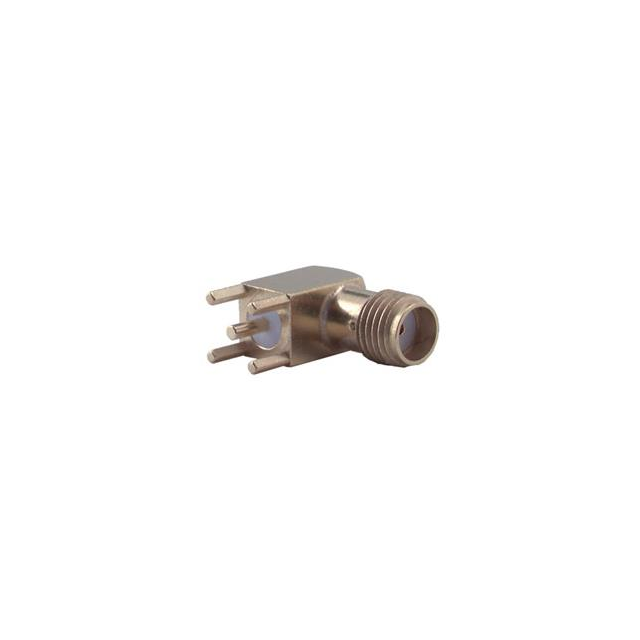

Huber+Suhner, Inc. 85_SMA-50-0-101/111_NE	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Brass	-65 ░C	165 °C		18 GHz	SMA	Right Angle Through Hole	1	50 Ohms	Threaded	Solder	Beryllium Copper	Female Socket Jack	Gold	Solder
Huber+Suhner, Inc. 11_SMA-50-3-15/111_NH									18 GHz	SMA	Free Hanging (In-Line)	1	50 Ohms	Threaded	Solder	Beryllium Copper	Plug Male Pin	Gold	Solder
