MRT23 Series

Catalog

MINIATURE POWER LEVEL ROTARY

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Termination Style	Depth Behind Panel [custom]	Contact Timing	Circuit per Deck	Current Rating (Amps)	Mounting Type	Number of Poles per Deck	Features	Contact Material	Actuator Type	Number of Decks [custom]	Voltage Rating - AC	Index Stops	Actuator Length [x]
NKK Switches MRT23-BE	0.25 in	30 V	Solder Lug	12 mm	Non-Shorting (BBM)	DPDT	3 A 5 A	Panel Mount Right Angle	2	Sealed - Flux Protection	Silver Alloy	Knob	1	125 V	Fixed	14.3 mm
NKK Switches MRT23-BC	0.25 in	30 V	Solder Lug	12 mm	Non-Shorting (BBM)	DPDT	3 A 5 A	Panel Mount Right Angle	2	Sealed - Flux Protection	Silver Alloy	Knob	1	125 V	Fixed	14.3 mm
NKK Switches MRT23-CB	0.25 in	30 V	Solder Lug	12 mm	Non-Shorting (BBM)	DPDT	3 A 5 A	Panel Mount Right Angle	2	Sealed - Flux Protection	Silver Alloy	Knob	1	125 V	Fixed	15.8 mm

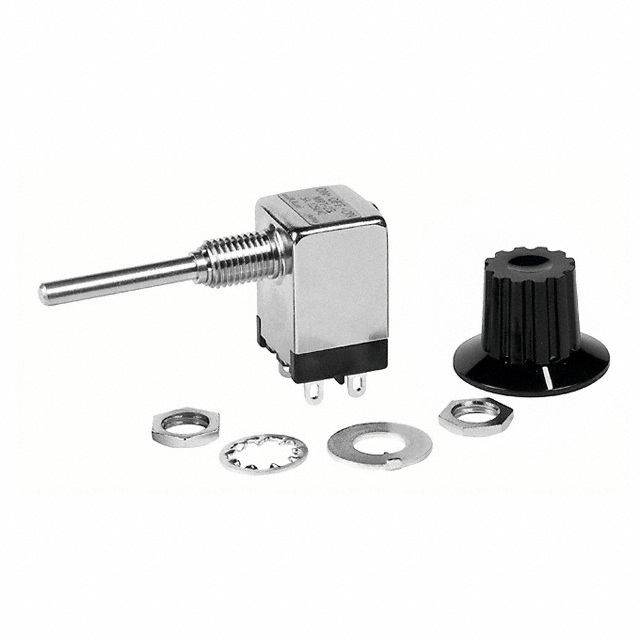

NKK Switches MRT23-A	0.25 in	30 V	Solder Lug	12 mm	Non-Shorting (BBM)	DPDT	3 A 5 A	Panel Mount Right Angle	2	Sealed - Flux Protection	Silver Alloy	Knob	1	125 V	Fixed	13 mm

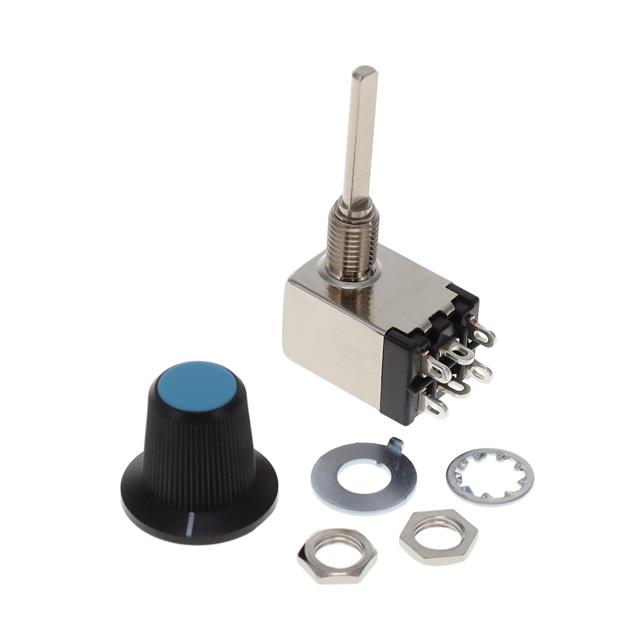

NKK Switches MRT23-CG	0.25 in	30 V	Solder Lug	12 mm	Non-Shorting (BBM)	DPDT	3 A 5 A	Panel Mount Right Angle	2	Sealed - Flux Protection	Silver Alloy	Knob	1	125 V	Fixed	15.8 mm
NKK Switches MRT23-BF	0.25 in	30 V	Solder Lug	12 mm	Non-Shorting (BBM)	DPDT	3 A 5 A	Panel Mount Right Angle	2	Sealed - Flux Protection	Silver Alloy	Knob	1	125 V	Fixed	14.3 mm
NKK Switches MRT23-BA	0.25 in	30 V	Solder Lug	12 mm	Non-Shorting (BBM)	DPDT	3 A 5 A	Panel Mount Right Angle	2	Sealed - Flux Protection	Silver Alloy	Knob	1	125 V	Fixed	14.3 mm
