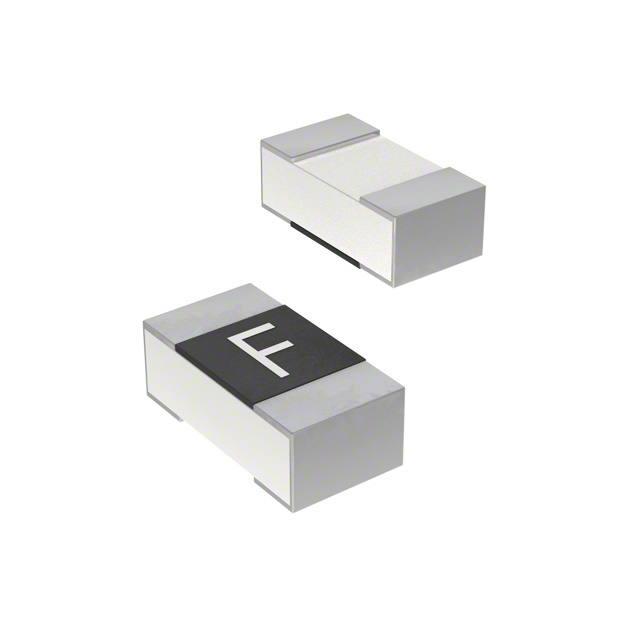

SF-0402 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FUSE BOARD MOUNT 1.6A 32VDC 0402
| Part | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Fuse Type | Mounting Type | Current Rating (Amps) | Voltage Rating - DC | Response Time | Melting I²t | Breaking Capacity @ Rated Voltage | DC Cold Resistance | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | UL | 0.35 mm | 1 mm | 0.014 " | 0.02 in | 0.039 " | 0.52 mm | 0402 (1005 Metric) | 150 °C | -20 ░C | Board Mount (Cartridge Style Excluded) | Surface Mount | 1.6 A | 32 V | Fast Blow | 0.01672 | 35 A | ||
 Bourns Inc. | UL | 0.33 mm | 1 mm | 0.013 in | 0.02 in | 0.039 " | 0.51 mm | 0402 (1005 Metric) | 90 °C | -55 C | Board Mount (Cartridge Style Excluded) | Surface Mount | 1.5 A | 35 V | Fast Blow | 0.081 | 35 A | 0.04 Ohms | 0.081 |
 Bourns Inc. | 0.51 mm | 1 mm | 0.02 " | 0.02 in | 0.039 " | 0.51 mm | 0402 (1005 Metric) | 125 °C | -55 C | Board Mount (Cartridge Style Excluded) | Surface Mount | 4 A | 24 V | Slow Blow | 0.21 | 35 A | 0.014 Ohms | ||
Bourns Inc. | UL | 0.33 mm | 1 mm | 0.013 in | 0.02 in | 0.039 " | 0.51 mm | 0402 (1005 Metric) | 90 °C | -55 C | Board Mount (Cartridge Style Excluded) | Surface Mount | 0.2 A | 35 V | Fast Blow | 0.0017 | 35 A | 0.6 Ohms | 0.0017 |
 Bourns Inc. | UL | 0.35 mm | 1 mm | 0.014 " | 0.02 in | 0.039 " | 0.52 mm | 0402 (1005 Metric) | 105 ░C | -20 ░C | Board Mount (Cartridge Style Excluded) | Surface Mount | 2 A | 32 V | Fast Blow | 0.01983 | 35 A | 33 mOhms | 0.01983 |
 Bourns Inc. | UL | 0.35 mm | 1 mm | 0.014 " | 0.02 in | 0.039 " | 0.52 mm | 0402 (1005 Metric) | 150 °C | -20 ░C | Board Mount (Cartridge Style Excluded) | Surface Mount | 1.25 A | 32 V | Fast Blow | 0.01344 | 35 A | ||
 Bourns Inc. | UL | 0.33 mm | 1 mm | 0.013 in | 0.02 in | 0.039 " | 0.51 mm | 0402 (1005 Metric) | 90 °C | -55 C | Board Mount (Cartridge Style Excluded) | Surface Mount | 1.75 A | 35 V | Fast Blow | 0.092 I²t | 35 A | 0.034 Ohms | 0.092 |
Bourns Inc. | 0.51 mm | 1 mm | 0.02 " | 0.02 in | 0.039 " | 0.51 mm | 0402 (1005 Metric) | 125 °C | -55 C | Board Mount (Cartridge Style Excluded) | Surface Mount | 1.5 A | 24 V | Slow Blow | 0.05 | 35 A | 56 mOhms | 0.05 | |
Bourns Inc. | UL | 0.33 mm | 1 mm | 0.013 in | 0.02 in | 0.039 " | 0.51 mm | 0402 (1005 Metric) | 90 °C | -55 C | Board Mount (Cartridge Style Excluded) | Surface Mount | 0.25 A | 35 V | Fast Blow | 0.0035 | 35 A | 0.33 Ohms | 0.0035 |
 Bourns Inc. | UL | 0.35 mm | 1 mm | 0.014 " | 0.02 in | 0.039 " | 0.52 mm | 0402 (1005 Metric) | 105 ░C | -40 C | Board Mount (Cartridge Style Excluded) | Surface Mount | 3 A | 24 V 32 V | Slow Blow | 35 A | 0.015 Ohms |
