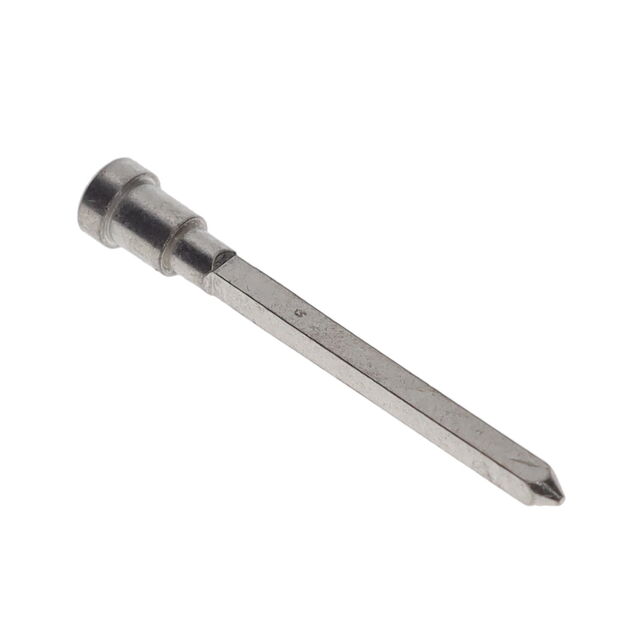

1097-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN SQUARE 0.045 TINLEAD
| Part | Contact Finish | Mounting Type | Termination | Pin Size - Above Flange | Pin Size - Above Flange | Board Thickness | Board Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Contact Material | Terminal Style | Insulation | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Tin-Lead | Through Hole | Swage Wire Wrap | 1.14 mm | 0.045 " | 1.57 mm | 0.062 " | 2.9 mm | 0.114 in | 20.29 mm | 0.799 in | 19.02 mm | 0.749 in | 200 Áin | 5.08 Ám | 0.094 in | 2.39 mm | PC Pin | Brass Alloy | Single End | Non-Insulated | ||
 Mill-Max Manufacturing Corp. | Gold | Through Hole | Swage Wire Wrap | 1.14 mm | 0.045 " | 1.57 mm | 0.062 " | 2.9 mm | 0.114 in | 20.29 mm | 0.799 in | 19.02 mm | 0.749 in | 20 µin | 0.51 µm | 0.094 in | 2.39 mm | PC Pin | Brass Alloy | Single End | Non-Insulated | ||
 Mill-Max Manufacturing Corp. | Tin | Through Hole | Swage Wire Wrap | 1.14 mm | 0.045 " | 2.9 mm | 0.114 in | 19.02 mm | 0.749 in | 200 Áin | 5.08 Ám | 0.094 in | 2.39 mm | PC Pin | Brass Alloy | Single End | Non-Insulated | 0.799 in | 20.3 mm | ||||
Mill-Max Manufacturing Corp. | Gold | Through Hole | Swage Wire Wrap | 1.14 mm | 0.045 " | 1.57 mm | 0.062 " | 2.9 mm | 0.114 in | 20.29 mm | 0.799 in | 19.02 mm | 0.749 in | 10 Áin | 0.25 Ám | 0.094 in | 2.39 mm | PC Pin | Brass Alloy | Single End | Non-Insulated |
