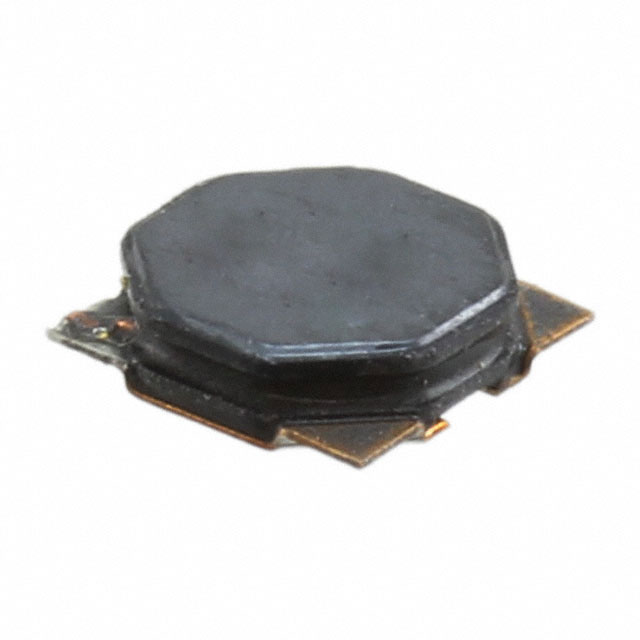

SRN4012 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 1UH 2.2A 45 MOHM SMD
| Part | Current - Saturation (Isat) | Shielding | Package / Case | Type | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Current Rating (Amps) | Inductance | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2.8 A | Shielded | Nonstandard | Drum Core Wirewound | 20 % | 125 °C | -40 C | 1.2 mm | 0.047 " | 45 mOhm | 100 kHz | 2.2 A | 1 µH | Surface Mount | 0.157 " | 4 mm | 0.157 in | 4 mm | Ferrite |
