H200 Series

Catalog

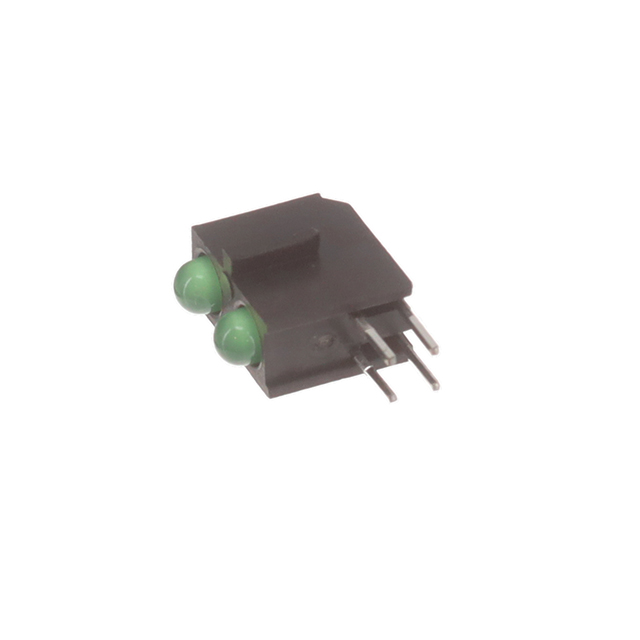

LED CIRCUIT BOARD INDICATORS LED ASSEMBLY, RIGHT ANGLE, 3MM LED, BI-LEVEL, 1 STATION, GREEN, DIFFUSED LENS, LOW CURRENT.

Part	Voltage Rating	Viewing Angle	Configuration	Current	Wavelength - Peak	Lens Type	Color	Millicandela Rating	Lens Style	Lens Size	Lens Size	Millicandela Rating [custom]	Millicandela Rating [custom]	Current	Millicandela Rating [custom]	Voltage Rating
Bivar Inc. H200CGDL	1.9 V	45 °	2 High	2 mA	565 nm	Diffused	Green (x 2)	6 mcd	Round with Domed Top	3 mm	T-1
Bivar Inc. H200CGRD	1.7 V 2.2 V	45 °	2 High	20 mA 20 mA	565 nm 655 nm	Diffused	Green (x 1) Red (x 1)		Round with Domed Top	3 mm	T-1	6 mcd	30 mcd
Bivar Inc. H200CRGD	1.7 V 2.2 V	45 °	2 High	20 mA 20 mA	565 nm 655 nm	Diffused	Green (x 1) Red (x 1)		Round with Domed Top	3 mm	T-1	6 mcd	30 mcd
Bivar Inc. H200CGD		45 °	2 High	20 mA	565 nm	Diffused	Green (x 2)	30 mcd	Round with Domed Top	3 mm	T-1
Bivar Inc. H200CYD	2.1 V	45 °	2 High	20 mA	585 nm	Diffused	Yellow	20 mcd	Round with Domed Top	3 mm	T-1
Bivar Inc. H200CYGDL		45 °	2 High		565 nm 585 nm	Diffused	Green (x 1) Yellow (x 1)		Round with Domed Top	3 mm	T-1		6 mcd	2mA Green 2mA Yellow	4 mcd	1.9V Green 1.9V Yellow
Bivar Inc. H200CRDL	1.9 V	45 °	2 High	2 mA	655 nm	Diffused	Red	1 mcd	Round with Domed Top	3 mm	T-1
Bivar Inc. H200CYDL	1.9 V	45 °	2 High	2 mA	585 nm	Diffused	Yellow	4 mcd	Round with Domed Top	3 mm	T-1
