5080/25C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

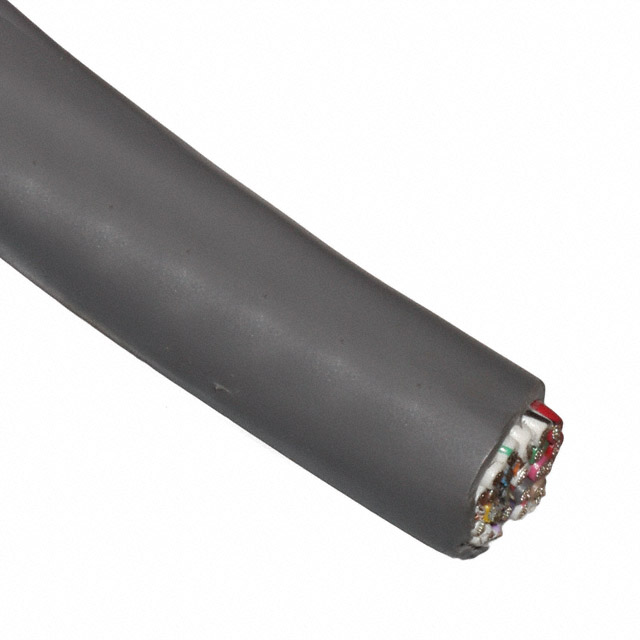

CABLE 25COND 16AWG SLATE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [diameter] | Ratings | Cable Type | Number of Conductors [custom] | Voltage | Wire Gauge | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Jacket Color | Length | Length | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | -35 °C | 105 ░C | 19 | 0.0117 in | ISO 10993 UL Style 2464 | Multi-Conductor | 25 | 300 VDC | 16 AWG | Communication Control | 0.656 in | 16.66 mm | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | Poly-Vinyl Chloride (PVC) | Slate | 152.4 m | 500 ft | Copper Tinned |
