MPXM2053 Series

Catalog

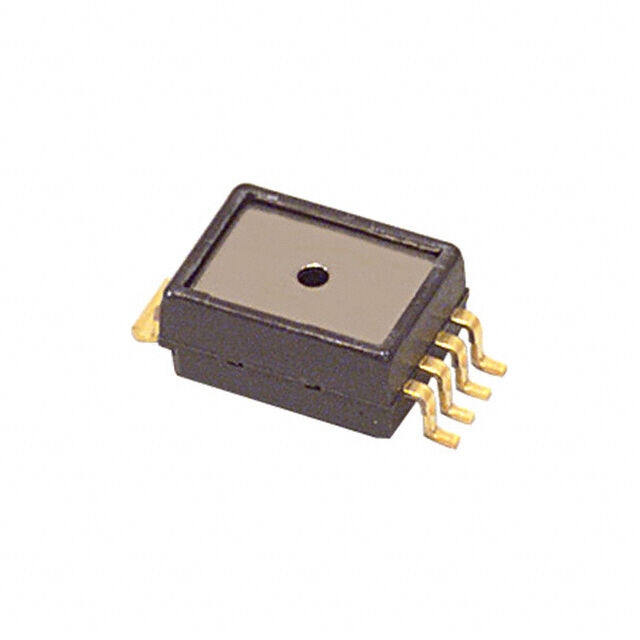

SENSOR 7.25PSID .04V 5MPAK

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure	Features	Termination Style	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Mounting Type	Output [Min]	Output [Max]	Accuracy [Max]	Accuracy [Min]	Applications	Supplier Device Package	Package / Case	Port Size	Port Size
Freescale Semiconductor - NXP MPXM2053DT1	200 kPa	29.01 PSI	50 kPa	7.25 PSI	Temperature Compensated	Gull Wing	Wheatstone Bridge	16 V	10 VDC	Differential	125 °C	-40 °C	No Port	Surface Mount	0 mV	40 mV	0.4 %	-1.6 %	Board Mount	5-MPAK	5-SMD Module
Freescale Semiconductor - NXP MPXM2053GST1	200 kPa	29.01 PSI	50 kPa	7.25 PSI	Temperature Compensated	Gull Wing	Wheatstone Bridge	16 V	10 VDC	Vented Gauge	125 °C	-40 °C	Barbless	Surface Mount	0 mV	40 mV	0.4 %	-1.6 %	Board Mount	5-MPAK	5-SMD Module Top Port	Male	0.12 " 2.97 mm
