LY4-D D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

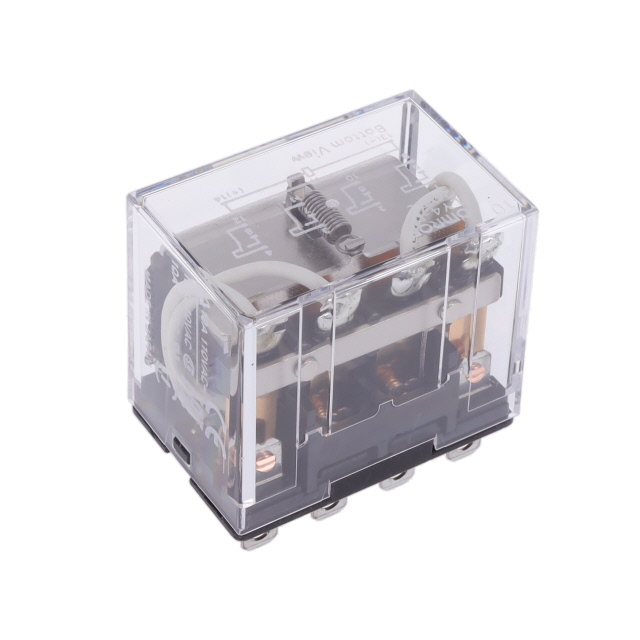

RELAY GEN PURPOSE 4PDT 10A 24V
| Part | Coil Type | Load - Max Switching | Approval Agency | Contact Form | Coil Resistance | Release Time | Mounting Type | Operate Time | Must Release Voltage | Contact Rating (Current) | Relay Type | Contact Material | Termination Style | Coil Current | Must Operate Voltage | Coil Voltage | Features | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non Latching | 1250 W 2500 VA | CE CSA TUV UR | 4PDT (4 Form C) | 350 Ohms | 25 ms | Socketable | 25 ms | 2.4 VDC | 10 A | General Purpose | Silver Alloy | Plug In | 69 mA | 19.2 VDC | 24 VDC | Diode | 125 VDC 250 VAC | -25 °C | 40 °C |
 Omron Electronics Inc-EMC Div | Non Latching | 1250 W 2500 VA | CE CSA TUV UR | 4PDT (4 Form C) | 100 Ohms | 25 ms | Socketable | 25 ms | 1.2 VDC | 10 A | General Purpose | Silver Alloy | Plug In | 120 mA | 9.6 VDC | 12 VDC | Diode | 125 VDC 250 VAC | -25 °C | 40 °C |
