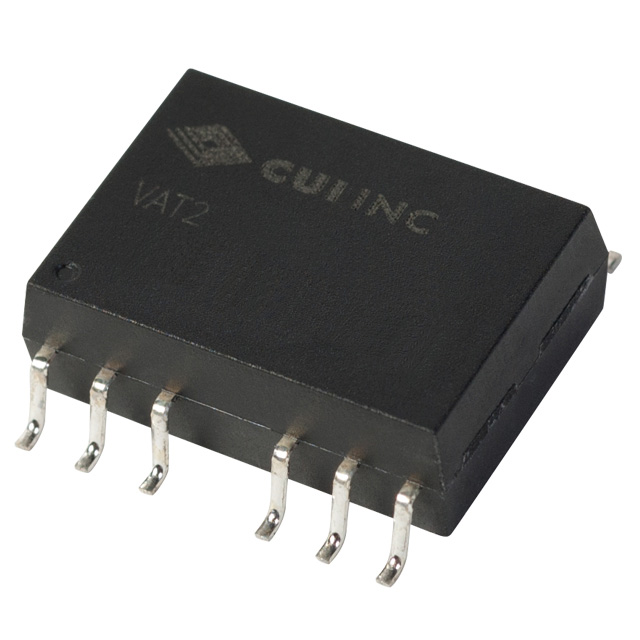

VAT2-S5 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-5V 2W

Part	Voltage - Input (Min) [Min]	Voltage - Isolation	Features	Package / Case	Applications	Power (Watts)	Voltage - Input (Max) [Max]	Mounting Type	Type	Voltage - Output 1	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Efficiency
CUI Inc. VAT2-S5-D5-SMT-TR	4.5 V	1000 V	SCP	14-SMD Module 12 Leads	ITE (Commercial)	2 W	5.5 V	Surface Mount	Isolated Module	5 V	2	85 °C	-40 C	5.8 mm	17.8 mm	0.7 "	12.7 mm	0.5 "	0.23 "	-5 V
CUI Inc. VAT2-S5-D12-SMT-TR	4.5 V	1000 V	SCP	14-SMD Module 12 Leads	ITE (Commercial)	2 W	5.5 V	Surface Mount	Isolated Module	12 V	2	85 °C	-40 C	5.8 mm	17.8 mm	0.7 "	12.7 mm	0.5 "	0.23 "	-12 V	83 mA	83 mA	84 %
CUI Inc. VAT2-S5-D15-SMT-TR	4.5 V	1000 V	SCP	14-SMD Module 12 Leads	ITE (Commercial)	2 W	5.5 V	Surface Mount	Isolated Module	15 V	2	85 °C	-40 C	5.8 mm	17.8 mm	0.7 "	12.7 mm	0.5 "	0.23 "	-15 V	67 mA	67 mA
