861400011 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

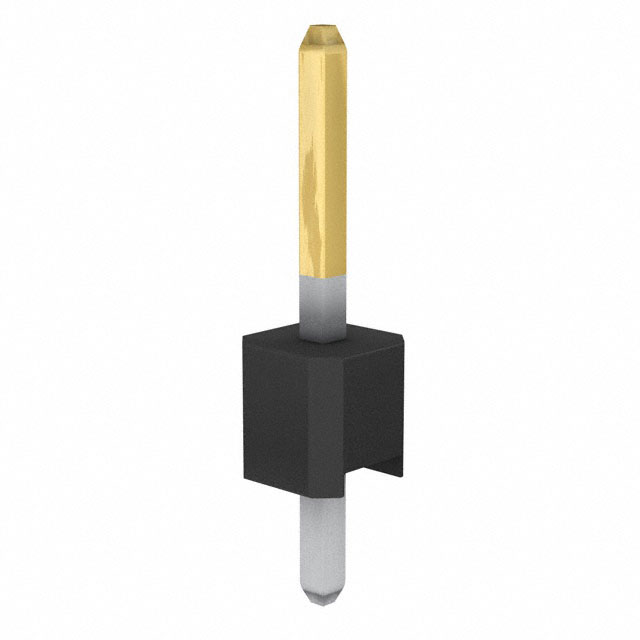

CONN HEADER VERT 1POS
| Part | Mounting Type | Number of Positions | Connector Type | Contact Length - Post | Contact Length - Post | Contact Shape | Contact Material | Voltage Rating | Number of Rows | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Termination | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Fastening Type | Current Rating (Amps) | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Contact Finish - Mating | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Through Hole | 1 | Header | 0.118 in | 3 mm | Square | Copper Alloy | 1000 VDC | 1 | All | 7 mm | 0.276 in | -55 °C | 125 °C | Thermoplastic | Solder | Unshrouded | 1.27 µm | 50 µin | Male Pin | Push-Pull | 3 A | UL94 V-0 | 0.102 in | 2.6 mm | Gold or Gold GXT™ | 0.496 in | 12.6 mm |
Amphenol ICC (FCI) | Through Hole | 1 | Header | 0.118 in | 3 mm | Square | Copper Alloy | 1000 VDC | 1 | All | 7 mm | 0.276 in | -55 °C | 125 °C | Thermoplastic | Solder | Unshrouded | 0.203 Ám | 8 Áin | Male Pin | Push-Pull | 3 A | UL94 V-0 | 0.102 in | 2.6 mm | Gold or Gold GXT™ | 0.496 in | 12.6 mm |
Amphenol ICC (FCI) | Through Hole | 1 | Header | 0.136 " | 3.46 mm | Square | Copper Alloy | 1000 VDC | 1 | All | 5.8 mm | 0.228 in | -55 °C | 125 °C | Thermoplastic | Solder | Unshrouded | 0.203 Ám | 8 Áin | Male Pin | Push-Pull | 3 A | UL94 V-0 | 0.102 in | 2.6 mm | Gold or Gold GXT™ | 0.469 in | 11.9 mm |
Amphenol ICC (FCI) | ||||||||||||||||||||||||||||
Amphenol ICC (FCI) | Through Hole | 1 | Header | 0.118 in | 3 mm | Square | 1 | All | 7 mm | 0.276 in | Solder | Unshrouded | Male Pin | Push-Pull | 0.102 in | 2.6 mm | 0.496 in | 12.6 mm |
