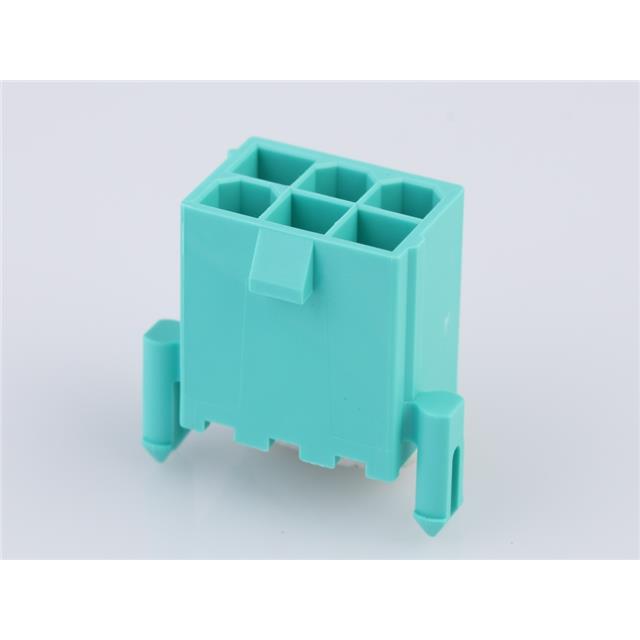

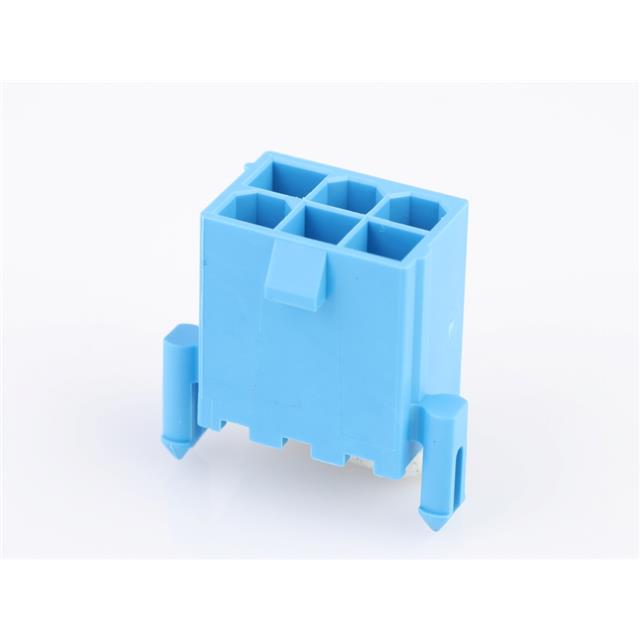

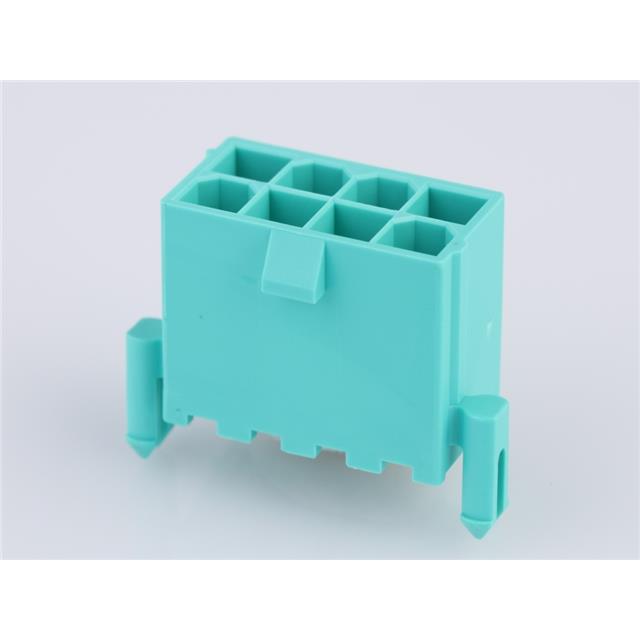

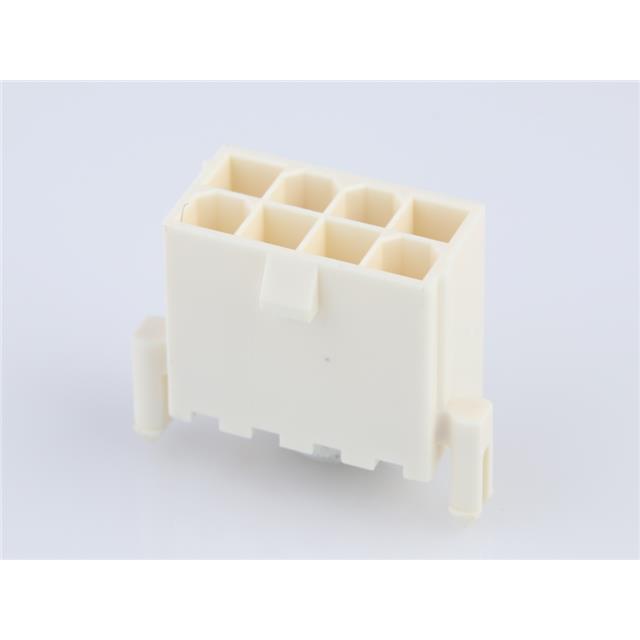

172447 Series

Mini-Fit Jr. Header, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 4 Circuits, Nylon 6/6, UL 94V-2, Tin (Sn) Plating, Glow-Wire Capable, Black

Manufacturer: Molex

Catalog

Mini-Fit Jr. Header, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 4 Circuits, Nylon 6/6, UL 94V-2, Tin (Sn) Plating, Glow-Wire Capable, Black

Part	Fastening Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Features	Insulation Height	Insulation Height	Shrouding	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Insulation Color	Voltage Rating	Contact Type	Mounting Type	Connector Type	Termination	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Finish - Post	Number of Positions	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post
Molex 1724470512	Locking Ramp	All	2.54 çm	100 çin	Board to Cable/Wire	Board Lock Glow Wire Compliant	0.5 in	12.7 mm	Shrouded - 4 Wall	UL94 V-0	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Brass	Green	600 VAC	Male Pin	Through Hole	Header	Solder	General Purpose Industrial Telecommunications	-40 °C	105 ░C	2	3.56 mm	0.14 in	Varies by Wire Gauge	Tin	12	Square	2.54 µm	100 µin

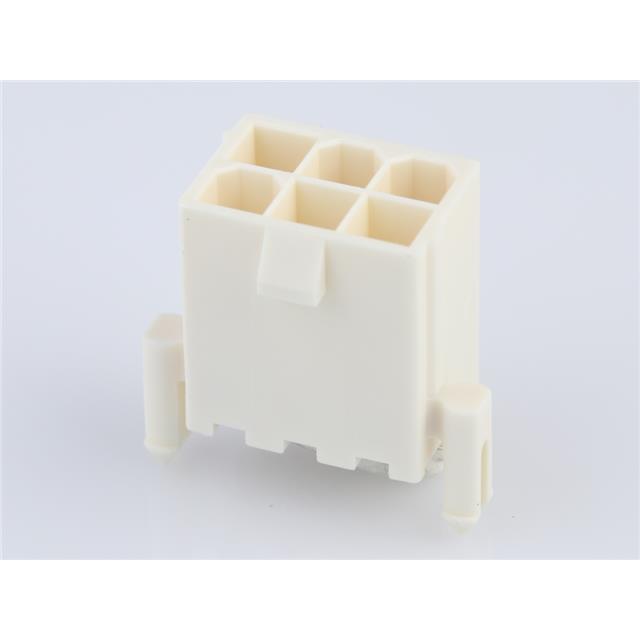

Molex 1724470706	Locking Ramp	All	2.54 çm	100 çin	Board to Cable/Wire	Board Guide Glow Wire Compliant	0.5 in	12.7 mm	Shrouded - 4 Wall	UL94 V-0	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Brass	Natural	600 VAC	Male Pin	Through Hole	Header	Solder	General Purpose Industrial Telecommunications			2	3.56 mm	0.14 in	Varies by Wire Gauge	Tin	6	Square	2.54 µm	100 µin

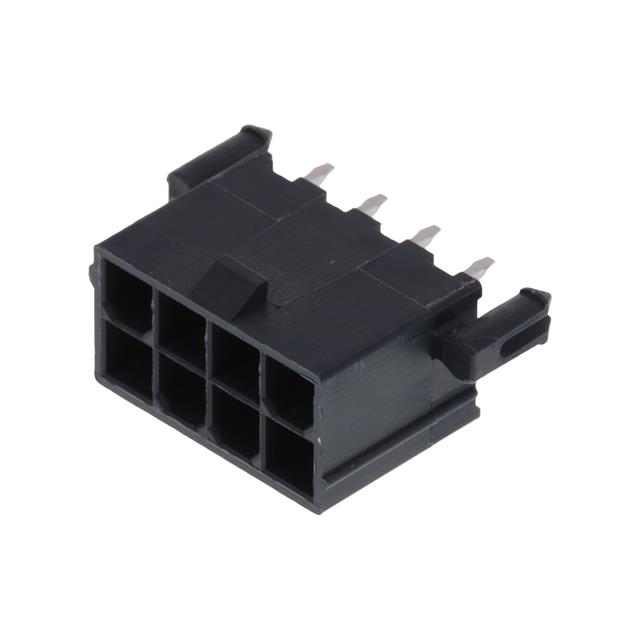

Molex 1724470008	Locking Ramp	All	2.54 çm	100 çin	Board to Cable/Wire	Board Guide Glow Wire Compliant	0.504 in	12.8 mm	Shrouded - 4 Wall	UL94 V-2	4.2 mm	0.165 in	Nylon Polyamide (PA)	4.2 mm	0.165 in	Brass	Black		Male Pin	Through Hole	Header	Solder	General Purpose Industrial Telecommunications			2				Tin	8	Square	2.54 µm	100 µin	3.5 mm	0.138 in

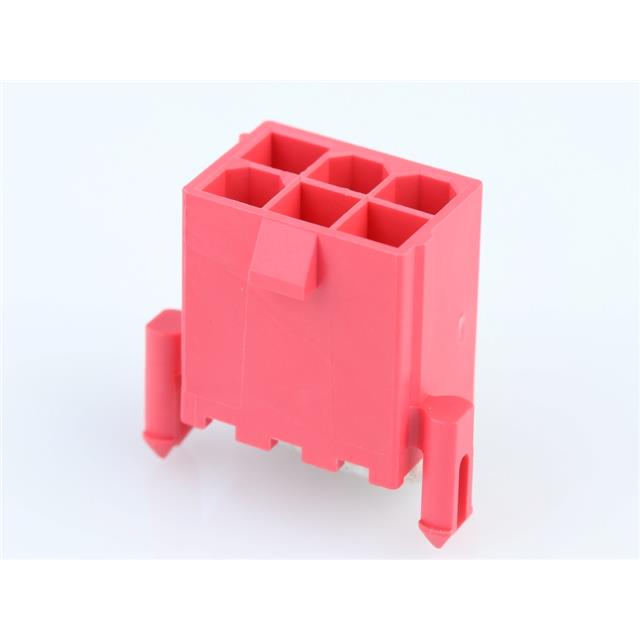

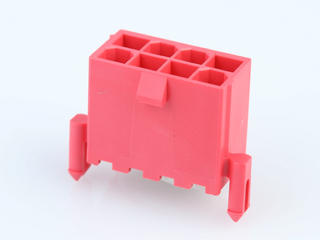

Molex 1724470402	Locking Ramp	All	2.54 çm	100 çin	Board to Cable/Wire	Board Lock Glow Wire Compliant	0.5 in	12.7 mm	Shrouded - 4 Wall	UL94 V-0	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Brass	Red	600 VAC	Male Pin	Through Hole	Header	Solder	General Purpose Industrial Telecommunications	-40 °C	105 ░C	2	3.56 mm	0.14 in	Varies by Wire Gauge	Tin	2	Square	2.54 µm	100 µin
Molex 1724479502	Locking Ramp	All	2.54 çm	100 çin	Board to Cable/Wire	Glow Wire Compliant	0.5 in	12.7 mm	Shrouded - 4 Wall	UL94 V-0	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Brass	Green	600 VAC	Male Pin	Through Hole	Header	Solder	General Purpose Industrial Telecommunications			2	3.56 mm	0.14 in	Varies by Wire Gauge	Tin	2	Square	2.54 µm	100 µin

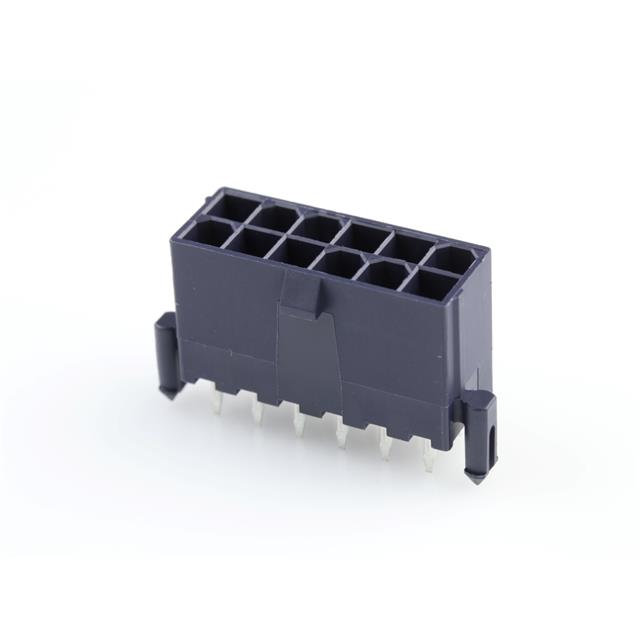

Molex 1724470012	Locking Ramp	All	2.54 çm	100 çin	Board to Cable/Wire	Board Guide Glow Wire Compliant	0.504 in	12.8 mm	Shrouded - 4 Wall	UL94 V-2	4.2 mm	0.165 in	Nylon Polyamide (PA)	4.2 mm	0.165 in	Brass	Black		Male Pin	Through Hole	Header	Solder	General Purpose Industrial Telecommunications			2				Tin	12	Square	2.54 µm	100 µin	3.5 mm	0.138 in
Molex 1724479710	Locking Ramp	All	2.54 çm	100 çin	Board to Cable/Wire	Glow Wire Compliant	0.5 in	12.7 mm	Shrouded - 4 Wall	UL94 V-0	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Brass	Natural	600 VAC	Male Pin	Through Hole	Header	Solder	General Purpose Industrial Telecommunications			2	3.56 mm	0.14 in	Varies by Wire Gauge	Tin	10	Square	2.54 µm	100 µin
Molex 1724479504	Locking Ramp	All	2.54 çm	100 çin	Board to Cable/Wire	Glow Wire Compliant	0.5 in	12.7 mm	Shrouded - 4 Wall	UL94 V-0	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Brass	Green	600 VAC	Male Pin	Through Hole	Header	Solder	General Purpose Industrial Telecommunications			2	3.56 mm	0.14 in	Varies by Wire Gauge	Tin	4	Square	2.54 µm	100 µin

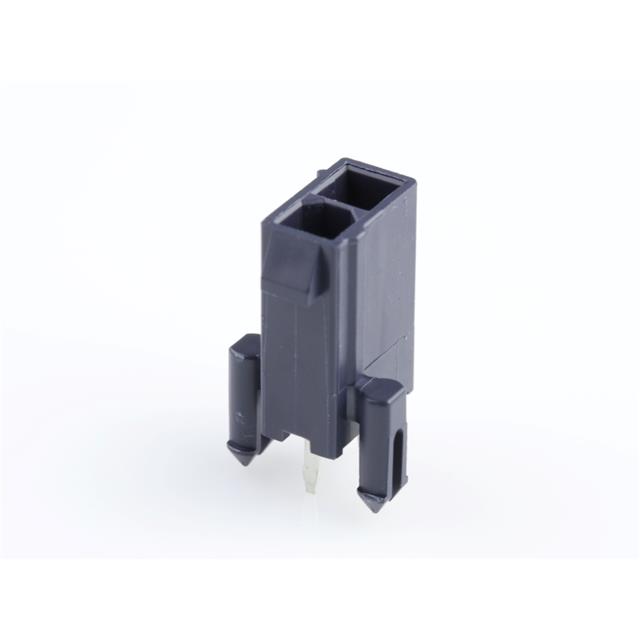

Molex 1724470002	Locking Ramp	All	2.54 çm	100 çin	Board to Cable/Wire	Board Guide Glow Wire Compliant	0.504 in	12.8 mm	Shrouded - 4 Wall	UL94 V-2			Nylon Polyamide (PA)	4.2 mm	0.165 in	Brass	Black		Male Pin	Through Hole	Header	Solder	General Purpose Industrial Telecommunications			2				Tin	2	Square	2.54 µm	100 µin	3.5 mm	0.138 in
Molex 1724479512	Locking Ramp	All	2.54 çm	100 çin	Board to Cable/Wire	Glow Wire Compliant	0.5 in	12.7 mm	Shrouded - 4 Wall	UL94 V-0	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Brass	Green	600 VAC	Male Pin	Through Hole	Header	Solder	General Purpose Industrial Telecommunications			2	3.56 mm	0.14 in	Varies by Wire Gauge	Tin	12	Square	2.54 µm	100 µin
