1394155 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

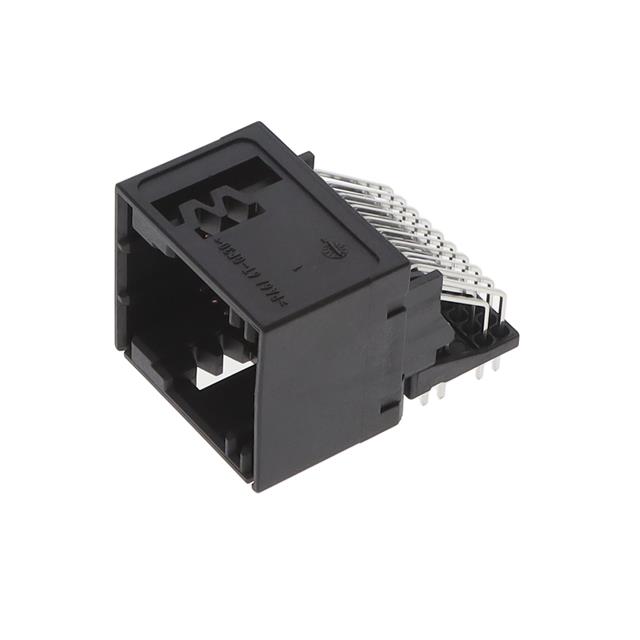

PIN HEADER, 40POS., MQS, ASSY, N
| Part | Number of Positions Loaded | Contact Finish - Post | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Length - Post | Contact Length - Post | Shrouding | Insulation Material | Insulation Color | Contact Shape | Mounting Type | Contact Material | Termination | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Material Flammability Rating | Connector Type | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | All | Tin | 40 | 80 °C | -40 C | Push-Pull | 0.118 in | 3 mm | Shrouded - 4 Wall | Nylon 6T Polyamide (PA6T) | Black | Circular | Through Hole | Copper Alloy | Solder | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | UL94 V-0 | Header | Male Pin | Guide Pin |
