ERJ-S12 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

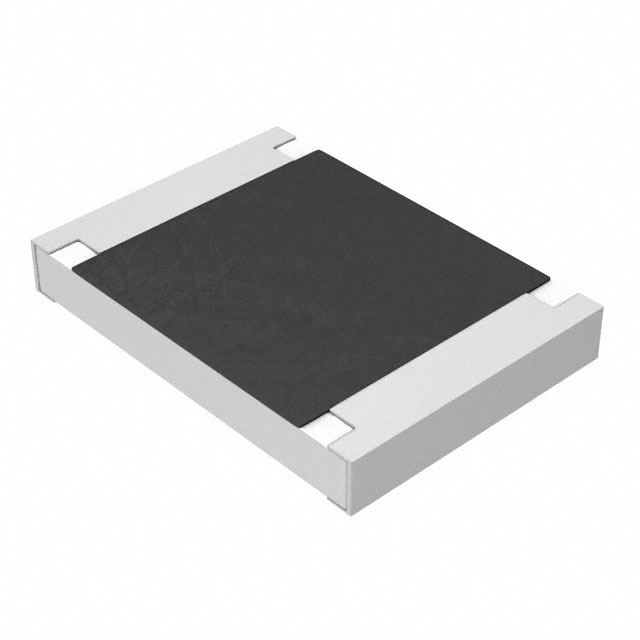

RES 56 OHM 5% 3/4W 1812
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Resistance | Power (Watts) | Power (Watts) | Composition | Temperature Coefficient | Features | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Number of Terminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 1812 (4532 Metric) | 56 Ohms | 0.75 W | 0.75 W | Thick Film | 200 ppm/°C | Anti-Sulfur Automotive AEC-Q200 | 0.7 mm | 0.028 in | 5 % | 155 °C | -55 °C | AEC-Q200 | 2 |
Panasonic Industrial Automation Sales | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 1812 (4532 Metric) | 26.7 Ohms | 0.75 W | 0.75 W | Thick Film | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 | 0.7 mm | 0.028 in | 1 % | 155 °C | -55 °C | AEC-Q200 | 2 |
Panasonic Industrial Automation Sales | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 1812 (4532 Metric) | 6.98 kOhms | 0.75 W | 0.75 W | Thick Film | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 | 0.7 mm | 0.028 in | 1 % | 155 °C | -55 °C | AEC-Q200 | 2 |
Panasonic Industrial Automation Sales | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 1812 (4532 Metric) | 118 kOhms | 0.75 W | 0.75 W | Thick Film | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 | 0.7 mm | 0.028 in | 155 °C | -55 °C | AEC-Q200 | 2 | |
Panasonic Industrial Automation Sales | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 1812 (4532 Metric) | 1.24 kOhms | 0.75 W | 0.75 W | Thick Film | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 | 0.7 mm | 0.028 in | 1 % | 155 °C | -55 °C | AEC-Q200 | 2 |
 Panasonic Industrial Automation Sales | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 1812 (4532 Metric) | 178 kOhms | 0.75 W | 0.75 W | Thick Film | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 | 0.7 mm | 0.028 in | 155 °C | -55 °C | AEC-Q200 | 2 | |
Panasonic Industrial Automation Sales | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 1812 (4532 Metric) | 120 Ohms | 0.75 W | 0.75 W | Thick Film | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 | 0.7 mm | 0.028 in | 1 % | 155 °C | -55 °C | AEC-Q200 | 2 |
Panasonic Industrial Automation Sales | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 1812 (4532 Metric) | 0.75 W | 0.75 W | Thick Film | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 | 0.7 mm | 0.028 in | 1 % | 155 °C | -55 °C | AEC-Q200 | 2 | |
Panasonic Industrial Automation Sales | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 1812 (4532 Metric) | 825 Ohms | 0.75 W | 0.75 W | Thick Film | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 | 0.7 mm | 0.028 in | 1 % | 155 °C | -55 °C | AEC-Q200 | 2 |
Panasonic Industrial Automation Sales | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 1812 (4532 Metric) | 33 Ohms | 0.75 W | 0.75 W | Thick Film | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 | 0.7 mm | 0.028 in | 155 °C | -55 °C | AEC-Q200 | 2 |
