HET200 Series

Catalog

THERMOELECT ASSY AIR-AIR 200W

Part	Weight [custom]	Weight [custom]	Fan Location	Current	Voltage	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [y]	Power - Cooling	Heat Transfer Type	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight

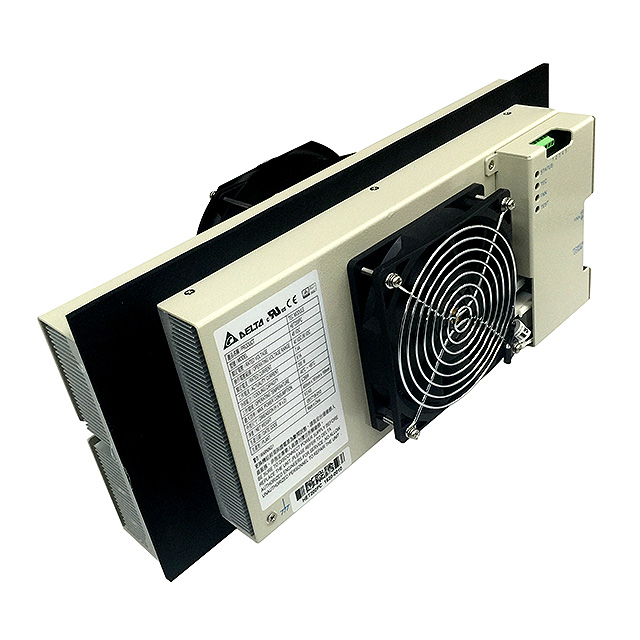

Delta Electronics HET200PC	13 lbs	5.9 kg	Cold Side Warm Side	6.1 A	48 V	181 mm	400 mm	169 mm	200 W	Air to Air	55 °C	-40 C
Delta Electronics HET200PC-B			Cold Side Warm Side	5.8 A	48 V	181 mm	400 mm	143 mm	200 W	Air to Air	55 °C	-40 C	12 lbs	5.4 kg
Delta Electronics HET200VC	13 lbs	5.9 kg	Cold Side Warm Side	12 A	24 V	181 mm	400 mm	169 mm	200 W	Air to Air	55 °C	-40 C
Delta Electronics HET200PB			Cold Side Warm Side	6.7 A	48 V	180 mm	400 mm	208 mm	200 W	Air to Air	55 °C	-40 C	20 lbs	9.1 kg
Delta Electronics HET200VB			Cold Side Warm Side	12.2 A	24 V	180 mm	400 mm	208 mm	200 W	Air to Air	55 °C	-40 C	20 lbs	9.1 kg
