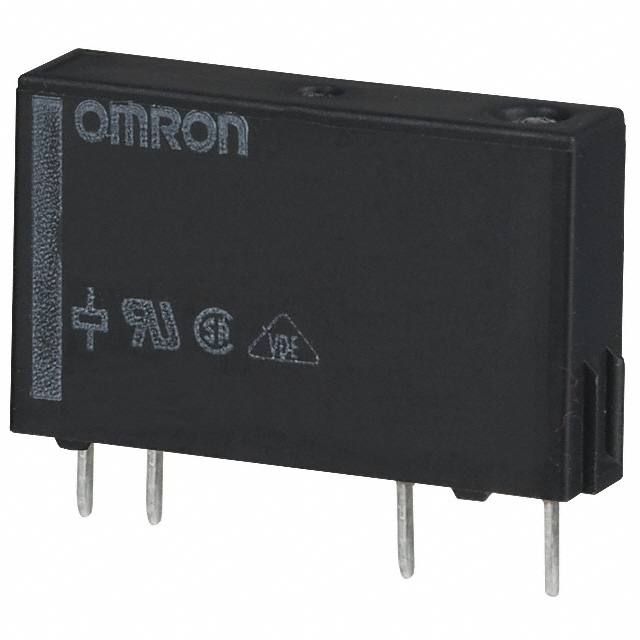

G6DS-1A Series

Catalog

RELAY GEN PURPOSE SPST 5A 6V

Part	Must Operate Voltage	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Seal Rating	Termination Style	Coil Type	Coil Current	Release Time	Mounting Type	Operate Time	Switching Voltage [Max]	Coil Resistance	Relay Type	Must Release Voltage	Contact Form	Contact Rating (Current)	Load - Max Switching	Coil Voltage
Omron Electronics Inc-EMC Div G6DS-1A-H DC6	4.2 VDC	CSA UR VDE	85 °C	-40 °C	Sealed - Fully	PC Pin	Non Latching	20 mA	5 ms	Through Hole	10 ms	30 VDC 250 VAC	300 Ohms	General Purpose	0.3 VDC	SPST-NO (1 Form A)	5 A	150 W 1250 VA
Omron Electronics Inc-EMC Div G6DS-1A-ASI DC24	16.8 VDC	CSA TUV UR	70 °C	-25 °C	Sealed - Fully	PC Pin	Non Latching	8.3 mA	5 ms	Through Hole	10 ms	30 VDC 250 VAC	2.88 kOhms	General Purpose	2.4 VDC	SPST-NO (1 Form A)	5 A	150 W 1250 VA	24 VDC
Omron Electronics Inc-EMC Div G6DS-1A-H DC20	14 VDC	CSA UR VDE	85 °C	-40 °C	Sealed - Fully	PC Pin	Non Latching	6 mA	5 ms	Through Hole	10 ms	30 VDC 250 VAC	3.3 kOhms	General Purpose	1 VDC	SPST-NO (1 Form A)	5 A	150 W 1250 VA	20 VDC
